Chip Attenuator suits RF and microwave applications.
July 22, 2009 -

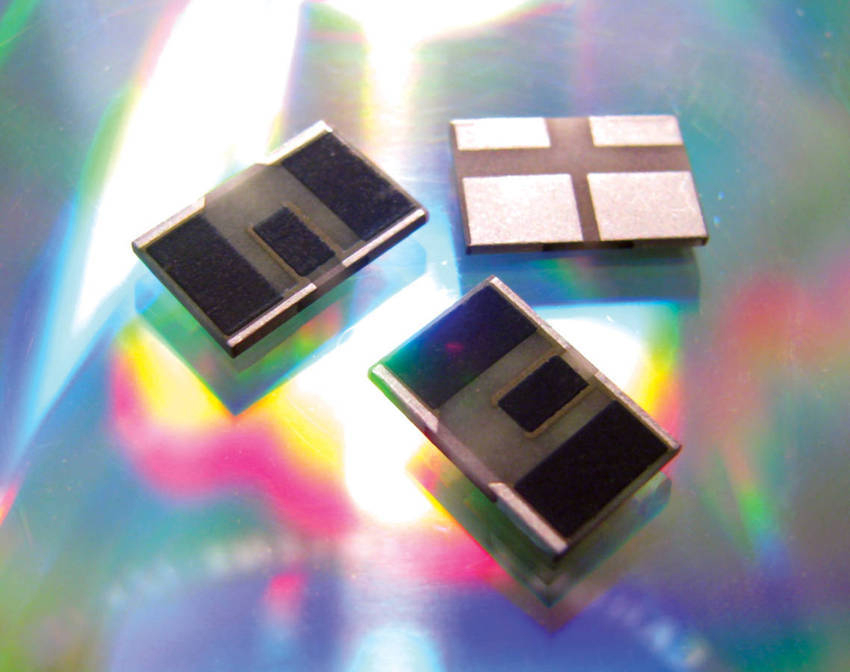

Measuring 0.375 x 0.250 in., VGX-3725WA high power aluminum nitride chip attenuator features wraparound terminals for solder or epoxy attachment and dissipates 100 W at 100°C baseplate temperature. Standard impedance is 50W and attenuation values to 30 dB are available with 0.5 dB increments. Attenuation accuracy starts at ±0.2 dB while achievable VSWR is 1.3:1 to 6 GHz depending on implementation.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
International Manufacturing Services, Inc. (IMS)
50 Schoolhouse Lane
Portsmouth, RI, 02871
USA
IMS Releases 100W Chip Attenuator for High Power RF and Microwave Applications
Portsmouth, Rhode Island, USA - International Manufacturing Services, Inc. (IMS), a leading manufacturer and supplier of high quality thick film resistors, terminations, attenuators, splitters, planar dividers, planar filters and thermal management devices to the electronics industry, announces the availability of its high power 0.375" x 0.250" size aluminum nitride chip attenuator. The VGX-3725WA features wraparound terminals for solder or epoxy attachment and will dissipate 100W at a 100°C baseplate temperature. Standard impedance is 50 ohm and attenuation values to 30dB are available including 0.5dB increments. Achievable VSWR is 1.3:1 to 6GHz depending on implementation and attenuation accuracy starts at ±0.2dB. These attenuators are especially suited, but are not limited to, RF and microwave applications. Samples and quotes can be obtained by visiting www.ims-resistors.com or contacting the factory.
About IMS
Since 1974, IMS has been supplying the electronics manufacturing industries with highest quality thick and thin film chip resistors, terminations, attenuators and RF and Microwave components.
For more information, visit www.ims-resistors.com, or contact the company at
International Manufacturing Services, Inc.
50 Schoolhouse Lane,
Portsmouth,
RI, 02871
USA
Tel. 401-683-9700
Fax 401-683-5571
e-mail: sales@ims-resistors.com.
|
|
|
|
|
|
|
|
