Channel Grinders employ 2 counter-rotating shafts.
April 9, 2009 -
Employing 3 or 5 hp motor and cycloidal gear drive, TASKMASTER TITAN is available with 14 x 12 to 14 x 60 in. inlet cutting chamber for handling flow rates up to 8 mgd. System employs 2 counter-rotating shafts; one cutter stack intermeshes with second one, which has larger diameter. For higher flow and wider channel applications, TASKMASTER TITAN DUPLEX models have 31 in. by up to 60 in. high cutting chambers to handle flow rates up to 16 mgd for channel widths starting at 35 in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
DELUMPER ® Div., Franklin Miller Inc.
60 Okner Pkwy.
Livingston, NJ, 07039
USA
Unique Hi-Flow Twin Shaft Channel Grinder
The TASKMASTER TITAN (TM 14000) is a major innovation in twin shaft channel grinding technology. This unit's innovative design employs two counter-rotating shafts, but unlike previous twin shaft grinders, one cutter stack intermeshes with a second one, which has a much larger diameter. The result is superior performance in both grinding and liquid handling.
The TITAN combines powerful channel grinding capability with high flow capacity and low headloss and without the need for inefficient rotating screens. With its massive array of cutting edges, cutter life and unit strength are enhanced. The unit's unique design provides superior feeding of large, bulky or round objects and a finely ground output for excellent protection of pumps, filter presses and other downstream equipment.
The TITAN employs a 3hp or 5hp motor and cycloidal gear drive, cutter cartridge technology and a 14"x 12" up to 14"x 60" inlet cutting chamber size for handling flow rates up to 8 mgd.

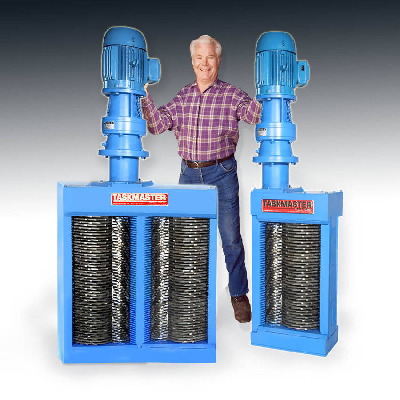

The TASKMASTER TITAN DUPLEX models have twice the cutting area for even higher flow and wider channel applications. They feature a massive wall of cutters and have 31" by up to 60" high cutting chambers to handle flow rates up to 16 mgd (710 l/s) for channel widths starting at 35" (890 mm).
For more information contact Franklin Miller Inc. 60 Okner Pkwy. Livingston, NJ 07039 USA Phone 973-535-9200 Fax 973-535-6269 Email: info@franklinmiller.com www.franklinmiller.com
|
|
|
|
|
|
|
|
