Cartridge Valves offer high flow capabilities.
June 4, 2002 - DSHR two-way poppet and sleeve and SE 3 three-way spool and bushing servocartridge valves provide closed-loop control. Both have servopilot valve with feedback device on mainstage. DSHR has flow rates up to 165 gpm @ 72.5 psi pressure drop, 12 ms step response time at 100% stroke, and is available in sizes NG 40, 50, 63, and 80. SE 3 has frequency response of 170 Hz at -3 dB and 12 ms step response time at 100% stroke, and comes in sizes NG 30, 50, and 63.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Moog, Inc., Industrial Controls Div.
Jamison Rd., Plant 11
East Aurora, NY, 14052
Moog's Servocartridge Valves Offer High Dynamics and Flow Capabilities
EAST AURORA, N.Y. (May 17, 2002) - Moog has introduced into the U.S. market several high dynamic closed-loop cartridge valve products that allow machine builders to make compact integrated systems with exceptional performance. Available in two-way (DSHR) and three-way valves (SE 3), this product line offers high flow rates and rapid step response.

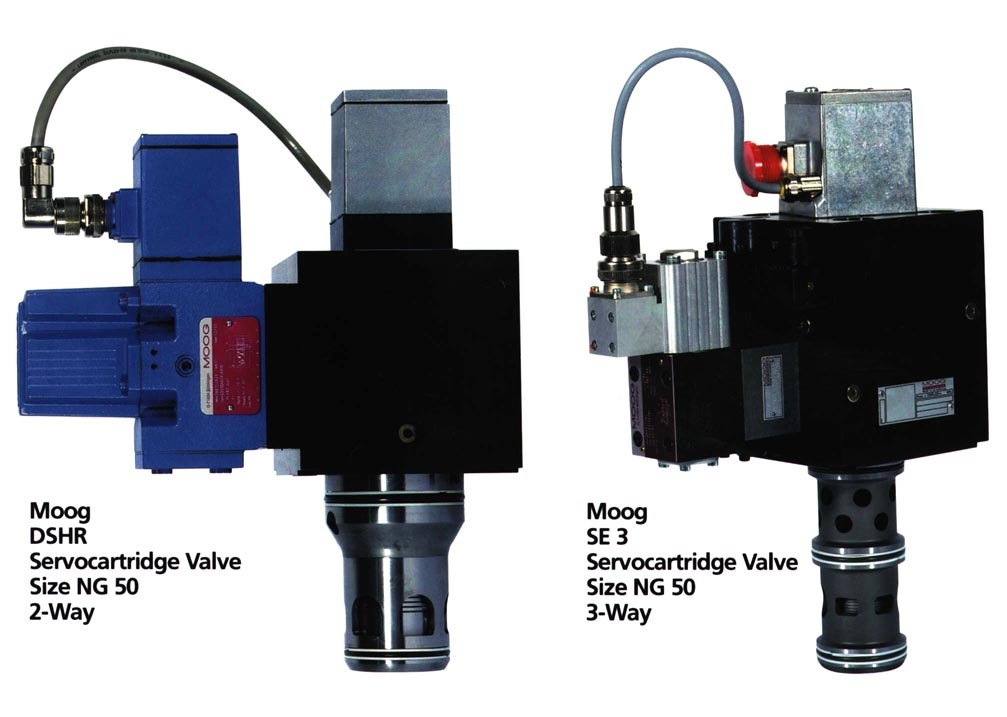

Moog's servocartridge valves feature a poppet and sleeve design (DSHR) in sizes NG 40, 50, 63, and 80 and a spool and bushing design (SE 3) in sizes NG 30, 50, and 63. The SE 3 servocartridge valve has a frequency response of 170 Hz at -3dB and a 12 ms step response time at 100% stroke. The DSHR servocartridge has flow rates up to 6100 l/min [165 gpm](@ 5 bar [72.5 psi] pressure drop) and a 12 ms step response time at 100% stroke. Closed-loop control is through a servopilot valve with a feedback device on the mainstage. On or off-board electronics are available.
Applications such as die casting, high-speed injection molding, and testing equipment benefit from the performance advantage offered by these new servocartridge products.
"Our line of closed-loop cartridge valves will ensure that Moog products, known for quality and technical superiority, are available to meet the highest performance requirements of our customers," commented David Geiger, Manager, Industrial Systems Engineering Manager.
Moog Inc. is a leading supplier of precision servohydraulic and servoelectronic control products and systems for industrial applications. For further information, contact Moog at 800-272-MOOG (6664) or visit our Web site at www.moog.com.
