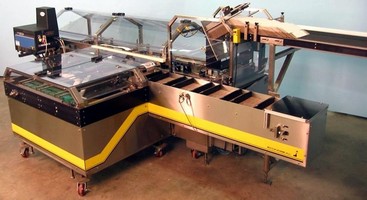

Cartoner offers speeds up to 120 cpm.
October 11, 2005 -
Featuring base frame footprint of 115 x 30 in., ECONOSEAL PEGASUS continuous motion cartoner erects, loads (optional), and closes end load style cartons at speeds to 120 cpm. Modular, build-on concept allows users to start in manual product loading mode and add further automation as required. Unit accepts cartons from 2 x 1 x 5 in. to 8 x 3 x 12 in. and handles up to 7,200 cartons/hr depending on size, style, and other factors.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Econocorp. Inc.
72 Pacella Park Dr.
Randolph, MA, 02368
USA
Econocorp, Inc Introduces the New Econoseal Pegasus Cartoner
The NEW ECONOSEAL PEGASUS cartoner offers a desirable combination of a large size range with speeds of up to 120 cpm, all in a smaller footprint. The base frame of this new model is only 115 inches (2,933 mm) long by 30 inches (762 mm) wide. The ECONOSEAL PEGASUS offers a "modular build-on" concept which allows users to start in a manual product loading mode and add further automation, as required. The NEW PEGASUS offers the cartoning market this truly unique combination of broad side range, speed, automation, and small footprint.
PEGASUS CARTONER
A compact and versatile continuous motion cartoner that erects, loads (optional), and closes end load, style cartons...
ENGINEERING DETAILS
Size Range: (Carton Size)
Min 2 x 1 x 5"
(51 x 25 x 127mm)
Max 8 x 3 x 12"
(203 x 76 x 305mm)
2" (50mm) max inner major
Electrical: 220 volts, 50/60 Hz, Single Phase
Air: 80 psi (5,5 bar)
Volume consumption
approximately .5 CFM
3 SCFM (12 Liters/min)
Speed: Up to 7200 cartons per hour depending on carton size, style, and other factors.
Shipping: 2400 lbs (1100 kg) (not including options)
|
|
|
|
|
|
|
|
