Cartesian Robotic Platform features multi-axis XYZ design.
July 23, 2010 -
Offering platform for diverse laboratory automation applications, Cartesian Multi-Axes Systems come in standard configurations that include left- or right-handed XY, XYZ, and XZ systems. Stages can be side- or base-mounted with elevation raisers and base platform, and optional rotary axis can be mounted to Z stage. Available with stroke from 50 mm to 1.8 m, systems feature T-style arm or H-style gantry, 5 micron repeatability, and 200 Kg dynamic load capacity.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
IntelLiDrives Inc.
8510 Bustleton Avenue
Philadelphia, PA, 19152
USA

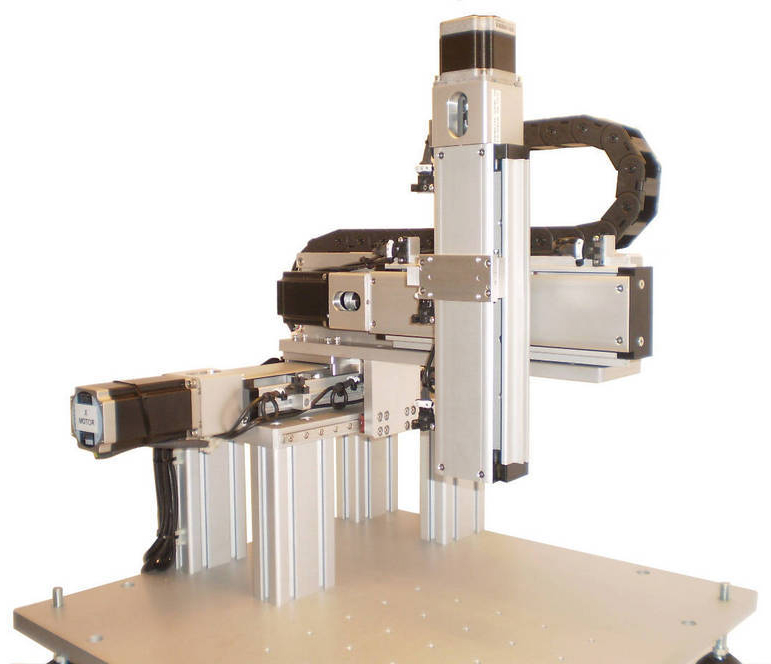

Multi-Axes XYZ Robotic Platform
IntelLiDrives released new Cartesian Multi-Axes Systems designed as a platform for many laboratory automation applications including microplate dispensing, pipetting, liquid handling and many other robotic applications.
Standard configurations include left or right handed XY, XYZ, and XZ systems. Stages can be side or base mounted with elevation raisers and base platform. An optional rotary axis can be mounted to the Z stage.
The integrated cable management system includes connectors for easy disconnect of customer cables and air lines.
All stages have environmental protection, options of stepper or brushless servo motors with encoders, integral limits and multiple ball-screw leads providing a wide range of speeds and resolutions.
SPECIFICATIONS:
1-, 2-or 3-axes linear modules
T-style arm or H-style gantry
Stroke from 50 mm to 1.8 m
Ball screw pitch 5, 10, 25 mm
Repeatability: 5 microns
Dynamic load capacity: 200 Kg
Optional Theta (rotary) axis
Brushless servo or stepper motors
Multi-axes control system with amplifiers
For additional information contact:
Greg Kane
IntelLiDrives, Inc.
8510 Bustleton Ave.
Philadelphia, PA 19152
e-mail: info@intellidrives.com
web site: www.intellidrives.com
|
|
|
|
|
|
|
|
