Capacitive Touch Sensitive Sensors provide stop/start actuation.
September 14, 2012 -
Designed for use as machine start/stop buttons, ergonomically designed KT Series are available with dynamic or static sensing principle and can be actuated with hand or finger. Dynamic sensing principle sensors are available with PNP or NPN outputs, while static sensing principle sensors are available with PNP outputs. Supplied in IP69K polycarbonate housing resistant to oil, impact, and scratching, 24 Vdc units are available with 2 m PUR cable or 0.3 m PUR cable with M8 connector.
Original Press release
ifm efector, Inc.
782 Springdale Dr.
Exton, PA, 19341
USA
ifm efector Introduces the New KT Series Touch Sensitive Sensors

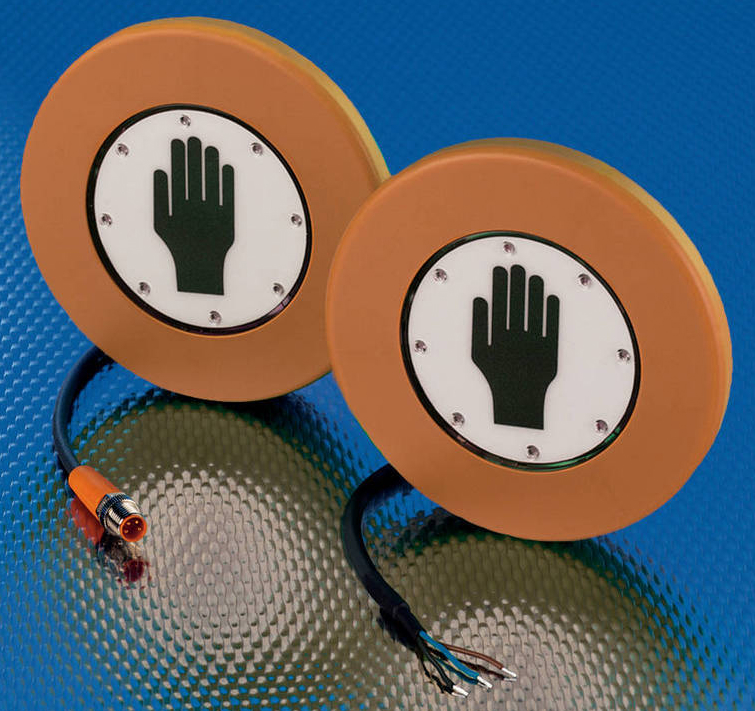

EXTON, PA – ifm’s new KT Series Capacitive Touch Sensitive Sensors are designed to be used as machine start / stop buttons in the industrial automation, mobile and building automation industries. The sensor’s ergonomic design allows the sensor to be actuated with a hand or single finger. Optical feedback is provided by switching status LEDs. The robust polycarbonate housing is durable, oil resistant, impact and scratch resistant and carries an IP69K NEMA rating. The sensors provide a reliable alternative to mechanical switches that may have a high rate of wear and tear.
ifm’s KT Series touch sensors use reliable capacitive technology for start and stop actuation. The KT Series sensors are available with one of two sensing principles: dynamic and static.
Models with the dynamic capacitive measuring principle detect a hand or finger for actuation; the output signal is actuated for 300 mS. This principle allows the sensor to ignore build up on the sensing face. Dynamic touch sensors suppress interference such as water, layers of ice, or particles that can stick to the sensor face. Even if the operator is wearing a glove, the sensor will trigger.
Static touch sensors detect hands and objects for as long as the sensing face is damped. This is particularly useful in two-hand control or anti tie-down applications. Static touch sensors also work through glass. Compared to mechanical switches, the sensors operate without wear, and because they react to light contact, no pressure is required for actuation.
The 24 VDC units are available with a 2 meter PUR cable or with 0.3 meter PUR cable with M8 connector for quick connection. Dynamic sensing principle sensors are available with PNP or NPN outputs; static sensing principle sensors are available with PNP outputs. Starting list price for the KT Series Capacitive Touch Sensors is $132.00 (US).
For more information about the KT Series Capacitive Touch Sensors, visit the ifm website, www.ifm.com/us. Contact ifm efector inc., 782 Springdale Drive, Exton, PA 19341. Tel: 800-441-8246 • Fax: 800-329-0436.
ifm efector inc. is a premier technology partner for sensors and controls for industrial automation. Products include inductive and capacitive proximity sensors, photoelectric sensors, fiber optics, vision sensors, vibration monitors, pressure sensors, flow sensors, temperature sensors, level sensors, valve position sensors, ID systems, mobile control products, AS-i networking and Safety at Work products.
|
|
|
|
|
|
|
|
|
|
|
