Cam Action Clamps handle parts that vary in size.
July 21, 2008 -
Measuring 10 mm high and utilizing ½-13 cam screw, Series-9 Clamps are manufactured so each clamping surface is 1 mm greater in distance from centerline then previous surface. By rotating hex, clamps can hold parts that vary up to 6 mm. Clamps come in 4 different sizes for total adjustment of 24 mm without changing to different hole location. Available with smooth or serrated clamping edges, heat treated hexes are suited for clamping castings and rough cut stock.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Mitee-Bite Products Inc.
340 Rte. 16B, P.O.box 430
Center Ossipee, NH, 03814
USA

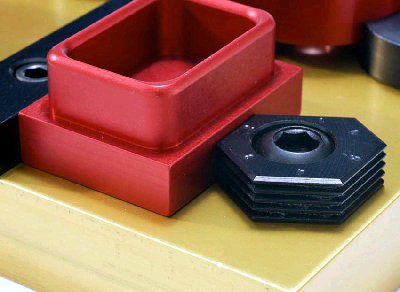

Mitee-Bite Series-9 Clamps
Mitee-Bite introduces an adjustable cam action clamp for those parts that vary in size. The hexes are heat treated for longer life and are available with either smooth or serrated clamping edges which makes them ideal for clamping castings and rough cut stock.
The Series-9 clamps are manufactured so each clamping surface is 1mm greater in distance from the centerline then the previous surface. So by rotating the hex the clamp can hold parts that vary up to 6mm. The clamps are made in four different sizes for a total adjustment of 24mm without changing to a different hole location. Various size workpieces are easily clamped by adjusting to the proper clamping surface. These low profile clamps are only 10mm high and use a ½ - 13 Mitee-Bite cam screw.
For more information contact Mitee-Bite Products Inc., Center Ossipee, NH.
|
|
|
|
