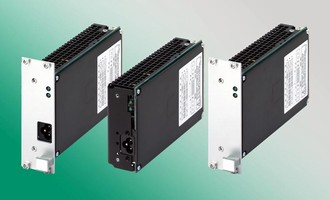

CPCI Power Supply delivers 70 W.
June 24, 2008 -
Model P2071 comes with 2 different types of 120/230 V mains input, either front feed via IEC320/C5 cold connector or rear feed via 24/8-channel M-power strip. Module offers no-load protected outputs of 5.1 and 3.3 V at 8 and 10 A, respectively. Designed for use with free (hot-air) convection, unit is EN60950, UL60950, and CSA22.2-950 approved, and operates at temperatures ranging from -25 to +70°C (2%/K derating from 50°C).
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
MGV Stromversorgungen GmbH
Bayerwaldstraße 27
, , -
Germany
70W Power Supply for CPCI Mini-Systems
Based on a 3U/8HP design and offering an interesting cost-benefit ratio, Munich-based MGV Stromversorgungen has developed its P2071 power supply especially for CompactPCI® mini-systems. It comes with two different types of 120/230V mains input - either front feed via an IEC320/C5 cold connector or alternatively rear feed via a 24/8-channel M-power strip. This module offers outputs of 5.1V@8A and 3.3V@10A, also via the M-strip. Both outputs are no-load protected.
The power supply is designed for use with free (hot-air) convection, needing no forced cooling as is often the case with CPCI models. It operates at temperatures ranging from -25° to +70° C (2%/K derating from 50° C). A number of protective devices safeguard both connected appliances and the power supply itself, ensuring cut-off in the case of mains overvoltage or overtemperature and limiting output in the case of overcurrent or overvoltage. The power supply is EN60950, UL60950 and CSA22.2-950 approved.
MGV offers a wide range of standard 19" power supplies with outputs of between 60 and 360 watts. All appliances are all developed and produced in Munich and subject to MGV´s three-year guarantee.
Contact data for readers and potential customers:
MGV Stromversorgungen GmbH
www.mgv.de
info@mgv.de
Tel. +49 89 67 80 90-17/18
Fax +49 89 67 80 90-80
|
|
|
|
|
|
|
|
