COM Express Module provides multiple display outputs.
September 18, 2012 -
Powered by 1.0 GHz single core AMD G-Series APU T40R or 1.65 GHz dual core T56N paired with A55E FCH chipset, Model CEM100 provides 2 DDR3 1066 MHz SO-DIMM slots for up to 8 GB of system memory and 4 SATA ports with RAID 0, 1, 10, 5. Integrated with Radeon™ HD 6250/6320 graphics controller with support for DirectX 11 and OpenGL® 4.0, board features 2 DDI, 18/24-bit single/dual channel LVDS, and VGA display interfaces. Four 32-bit PCI and 8 PCIe x1 Gen 2.0 slots enable I/O expansion.
Original Press release
AXIOMTEK Co., Ltd.
8F , No.4, Lane 235, Pao Chiao Rd.
Taipei, ,
Taiwan

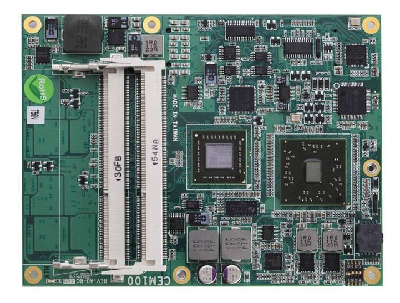

Ultra Low Power AMD G-Series Based COM Express Module with Great Graphics Performance - CEM100
Powered by the AMD G-Series T40R/T56N APU with DDI, VGA and LVDS, the CEM100 speeds up time-to-market for custom-made applications
Axiomtek released CEM100, a new low-power COM Express Type 2 module powered by either a single core AMD G-Series APU T40R at 1.0GHz or the dual core T56N at 1.65 GHz paired with the A55E FCH chipset. The platform comes with two DDR3 1066 MHz SO-DIMM slots for up to 8 GB of system memory and four SATA ports with RAID 0, 1, 10, 5. Integrated with Radeon™ HD 6250/6320 graphics controller with support for DirectX 11 and OpenGL® 4.0, the CEM100 provides outstanding visual experience and features two DDI, 18/24-bit single/dual channel LVDS and VGA display interfaces. Moreover, this small form factor embedded board also provides four 32-bit PCI plus eight PCIe x1 Gen 2.0 slots for I/O expansion. For applications looking for more security protection, TPM 1.2 is also integrated into this board. The CEM100 is ideal for applications in retail, medical, gaming, digital signage and many more.
“Powered by the newest AMD G-Series APU with AMD A55E FCH, Axiomtek’s CEM100 provides the latest graphics features and delivers new user experience. Even with high graphics performance, their optimized energy efficiency enable system developers to design the appliances with tight power and thermal restrictions”, said Joseph Chou, Assistant Vice President of Product Marketing Division at Axiomtek. “The CEM100 comes with multiple display outputs: 18/24-bit single/dual channel LVDS, VGA, and two DDI displays. The developer can operate modern DisplayPort, HDMI, DVI, and DPO graphical interfaces through the DDI on this board. Its four PCI and eight lanes of PCIe expansion buses maximize the flexibility of system development. Like all our COM Express type-II modules, the CEM100 offers fast time-to-market with reduced development cost and significant freedom in meeting form-fit-function requirements.”
Integrated with the baseboard, the CEM100 has the capability of eight Hi-Speed USB 2.0 ports, AC’97/HD Audio, four SATA-600, one Gigabit LAN, LPC interface, SPI, PATA-100 IDE, eight lanes of PCIe, and four PCI expansions. The built-in Watchdog Timer keeps system running smoothly. Additionally, the CEM100 supports operation system like Windows® 7, Windows® XP embedded and Linux.
Axiomtek’s brand new CEM100 is available now. For more product details or pricing, please visit our global website www.axiomtek.com or contact our sales representative at info@axiomtek.com.tw.
Advanced Features
AMD G-Series APU T56N 1.65 GHz/ T40R 1.0 GHz
AMD A55E FCH chipset
2 DDR3-1066 SO-DIMMs max. up to 8 GB
8 lanes of PCIe gen 2 at 5GT/s
4 SATA-600 with RAID 0, 1, 5, 10
DirectX11, OpenGL 4.0, and OpenCL 1.0 supported
TPM supported
