CAD Software offers mark-ups and redlining.
August 18, 2008 -
EnSuite v2 can add redlining, mark-up callouts, and standard shapes and text to any model, enabling users, who do not have access to originating CAD system, to participate in design review process. Interference/clearance checking feature enables users to select any component or assembly and immediately call out any volume interferences and contact surfaces that are highlighted in color. Software also lists parent/child information for each part in any assembly.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
CCE
28124 Orchard Lake Road, Suite 101
Farmington Hills, MI, 48334
USA
EnSuite Updated with Useful Tools for Collaboration and Design Validation
(August 6, 2008) -- CCE, a leading provider of CAD/CAM data translation and viewer products, has announced a new upgrade to EnSuite Version 2 - its multi-CAD viewing, translation and productivity software. The latest version offers mark-ups and redlining, interference/clearance checking and provides parent and child information for each component in an assembly. "This new upgrade to EnSuite substantially improves the ability of non-CAD users to analyze a design and quickly obtain the information they need to better perform their jobs," says Vinay Wagle, V.P. Sales & Marketing of CCE. "For example, a manufacturing engineer can quickly identify all of the parts in an assembly that fall within a specified clearance in order to verify that a certain manufacturing process can hold the needed tolerances."
EnSuite version 2 now offers the ability to add redlining, mark-up callouts, and standard shapes and text to any model. This feature enables users who do not have access to the originating CAD system to participate in the design review process. In many cases, an inefficient paper-based review process can be converted to a much more efficient electronic process.

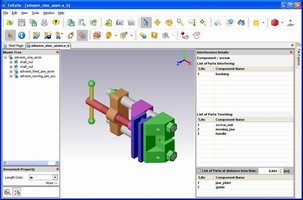

The interference/clearance checking feature enables the user to select any component or assembly and immediately call out any volume interferences and contact surfaces that are highlighted in color. The software can also be used to identify parts with clearances below any value selected by the user. The user can change the clearance value and EnSuite will dynamically update the list by showing parts that fall within the new clearance value. The output separately identifies parts with interferences, contact surfaces and clearances below the value specified by the user. This new feature is ideally suited for validating design for manufacturability.
The upgraded version of EnSuite also lists the parent/child information for each part in an assembly. This information can for example help purchasing identify all of the parts in an assembly in preparation for make or buy decisions.
The latest EnSuite update will be available to all active subscription license customers as well as to new customers.
EnSuite goes far beyond the capabilities of conventional viewers and translators by providing a wide range of productivity tools for accessing critical engineering information. EnSuite prevents users from saving changes to the master CAD model to protect integrity of the master model. Licenses are automatically administered and the product updated over the Internet.
EnSuite is designed for companies that work in a multi-CAD environment, such as those used by customers, vendors and partners. EnSuite provides seamless interoperability with CATIA V4, CATIA V5, Pro/ENGINEER, Unigraphics, and SolidWorks CAD systems as well as Parasolid, IGES and STEP files. Files can be translated to and from any of these formats without the native CAD software.
For more information, contact CCE at +1-248-932-5295 or email sales@cadcam-e.com. Visit CCE's Web site at http://www.cadcam-e.com/.
|
|
|
|
|
|
|
|
