Butterfly Valve is corrosion-resistant inside and out.
August 10, 2004 -
PTFE-lined, composite butterfly valves in 710 Series, designed for maximum corrosion-resistance, feature integral ISO 5211 actuator mounting flange and fiberglass-reinforced cast epoxy body that withstands pressures to 800 psi. Internally, valves have PTFE lining and PFA-encapsulated, stainless steel, single-piece disc and shaft. Steel bolts that secure 2-piece body are coated with TeflonŽ and isolated inside body with leak proof cap.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Nil-Cor Composite Valves
12241 Rockhill Ave. N.E.
Alliance, OH, 44601
USA

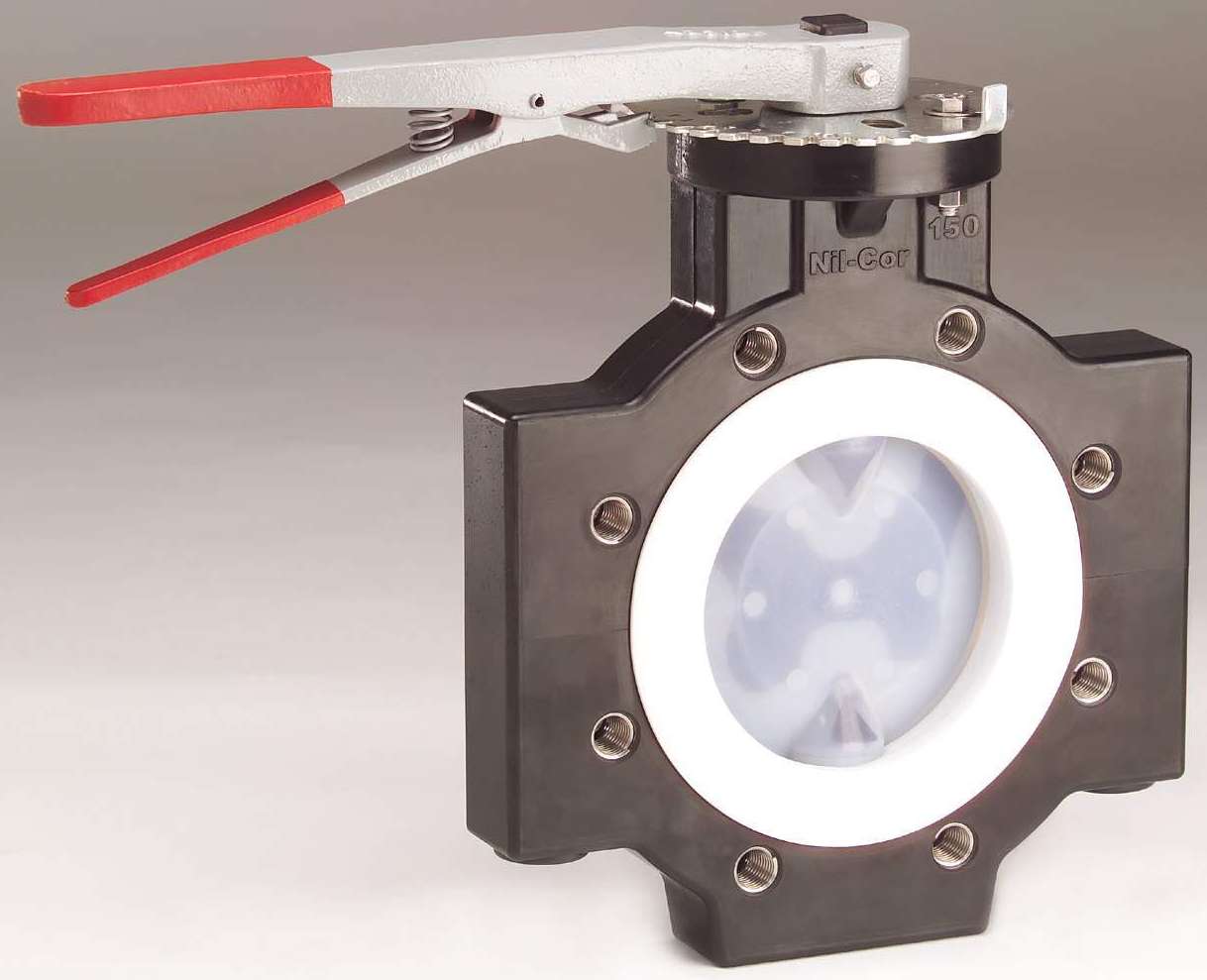

PTFE-Lined Advanced Composite Butterfly Valve Provides Maximum Corrosion Resistance Inside and Out
ALLIANCE, OH-August 4, 2004-Nil-Cor Composite Valves' new, 710-Series butterfly valve is designed for maximum corrosion resistance inside and outside the valve.
The butterfly-valve's light-weight body is made of corrosion-resistant fiberglass-reinforced cast epoxy. The body, successfully tested to 800 PSI, combines outstanding strength and durability with high-heat resistance in corrosive environments. The valve features an integral ISO 5211 actuator mounting flange for strength and convenience.
Internally, the Nil-Cor valve has a PTFE lining and a PFA-encapsulated, stainless steel, single-piece disc and shaft for superior strength and corrosion resistance. Bolts that secure the two-piece body are made of high-strength steel, coated with Teflon and isolated inside the body with a leak proof cap.
Nil-Cor's butterfly valve can be installed between lined pipe fittings, metallic raised-face pipe fittings, unlined FRP fittings and is excellent in dual-laminate piping systems.
The valve is ideal for handling chemicals such as chlorinated acid brine, very hot, concentrated inorganic acids, caustics, petrochemicals and phenols which are corrosive to vinyl ester and other valve materials. Additional applications include ultra-pure and clean services.
Nil-Cor, a subsidiary of Dresser Inc., is the originator of advanced composite technology used for the design and manufacture of ball, butterfly and check valves. Certified to ISO 9001 and the European P.E.D, Nil-Cor has been supplying composite-valve solutions to the chemical process industry for over 27 years.
For more information about the 710-series butterfly valve, contact Nil-Cor Composite Valves, 12241 Rockhill Ave. N.E., Alliance, Ohio 44601 USA. Telephone: 330-823-0500; Toll free: 800-321-9865. Fax: 330-821-6722; E-mail: info@nilcor.com. Visit our Web site at www.nilcor.com.
|
|
|
|
|
|
|
|
