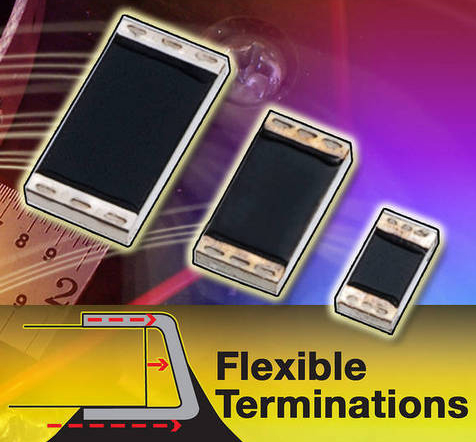

Bulk Metal® Foil Chip Resistors feature flexible terminations.
November 29, 2011 -
Supplied in 1206/2010/2512 chip sizes, VSMF series 10 W to 125 kW resistance range, with tolerances to ±0.01%; power ratings to 400 mW at +70°C; and ability to withstand ESD to at least 25 kV. Flexible terminations, offering strain relief for increased reliability, eliminate problems of cracked substrates and board delamination. Additional characteristics include 1.0 ns rise time, thermal stabilization time of less than 1 sec, and current noise of 0.010 µVrms per volt of applied voltage.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Vishay Precision Group
3 Great Valley Parkway, Suite 150
Malvern, PA, 19355
VPG Releases New VSMF Series of Chip Resistors with Flexible Terminations
Offering Low TCR of ±2.0 ppm/°C and Load-Life Stability to ±0.01%
MALVERN, Pa. - Vishay Precision Group, Inc. (NYSE: VPG) today announced that its Vishay Foil Resistors division (VFR) has released a new series of ultra-high-precision Bulk Metal® Foil chip resistors offering flexible terminations, low TCR of ±2.0 ppm/°C typical from -55°C to +125°C, +25°C ref., and load-life stability to ±0.01% at +70°C for 2,000 hours at rated power.
Offered in 1206, 2010, and 2512 chip sizes, the VSMF series features a wide resistance range from 10 W to 125 kW, with tolerances to ±0.01%. Any resistance value within this range is available at any tolerance with no additional cost or lead-time effect. The devices provide a power rating to 400 mW at +70°C and withstand electrostatic discharge (ESD) to at least 25 kV. The resistors feature a rise time of 1.0 ns with effectively no ringing, a thermal stabilization time of <1 s (nominal value achieved within 10 ppm of steady state value), current noise of 0.010 µVrms per volt of applied voltage (<-40 dB), a voltage coefficient of <0.1 ppm/V, and a thermal EMF of 0.05 µV/°C. The RoHS-compliant devices offer a non-inductive (<0.08 µH), non-capacitive design.
Typical chips in sizes of 1206 and larger occasionally fall off the printed circuit board (PCB) or develop substrate cracks, mainly due to bending during assembly and other stresses introduced through handling of the PCB, excess thermal gradients, or thermal shock. Thermal stresses can occur due to changes in ambient temperature or internal heat generation in the resistor itself. Whatever the cause, stress cycling due to thermal phenomena can cause material fatigue and cracks.
The VSMF series eliminates the problems of cracked substrates and board delamination by providing flexible terminations for strain relief, thereby increasing reliability. In addition, the Bulk Metal Foil resistor has documented more precise load-life stability than any MIL-qualified resistor. This is because the resistor's element is a bulk metal alloy that has been applied to a substrate with a unique process that results in a stress-free adhesion. The adhesion is maintained throughout the manufacturing process, including termination welding, encapsulation, marking, and curing. It then maintains adhesion integrity through all environmental and application stresses.
"Allowances must be made for the stresses - especially mounting and thermal cycling - that will change a resistor's end-of-life tolerance," said Yuval Hernik, senior director of application engineering for Vishay Foil Resistors. "These allowances depend on the specific resistor application and the service conditions of the equipment in which it is installed. The less stable a resistor is, the more allowance for instability is required. These allowances are considered cumulative and, when subtracted from the end-of-life error budget, impose a tighter tolerance at the point of purchase.
"Foil resistors with flexible terminations are the most stable resistors and thus require the least error allowance. The lower in-service error allowance means that more error allowance can be transferred to active devices - resulting in lower costs - or applied to the Foil resistors themselves, allowing for looser initial tolerances than would be required for other resistor technologies."
Samples and production quantities of the VSMF series are available now, with lead times of five days for samples and eight weeks for standard orders. Pricing for U.S. delivery starts at $4.28.
Further information about the VSMF series and other Vishay Foil Resistors products is available at www.vishayfoilresistors.com. Follow Vishay Foil Resistors at http://twitter.com/VPGFoil.
