Belt Conveyor Oven is electrically heated to 250°F.
April 25, 2011 -
Used for curing epoxy on metal and nylon filter assemblies, No. 829 features 40 K installed in Incoloy sheathed tubular heating elements and workspace dimensions of 30 in. x 10 ft x 15 in. Oven has 4 in. insulated walls and aluminized steel interior/exterior, and integrated 4,200 cfm, 3 hp recirculating blower provides vertical upward and downward airflow. Product is moved through oven on 24 in. wide, 1 x 1 in., Type 304 stainless steel flatwire conveyor belt with ¼ hp motor drive.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
USA

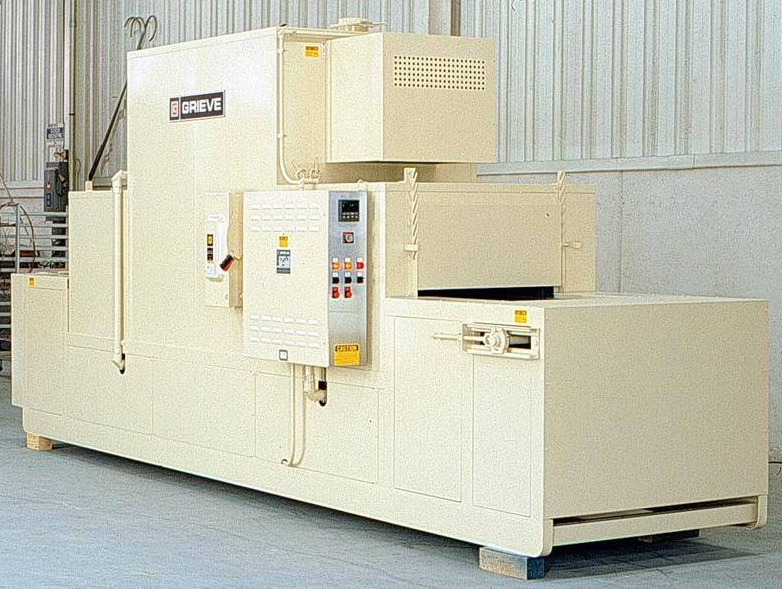

250°F Belt Conveyor Oven
No. 829 is an electrically-heated 250°F(~121.11°C) belt conveyor oven from Grieve, currently used for curing epoxy on metal and nylon filter assemblies. 40 K are installed in Incoloy sheathed tubular heating elements. Workspace dimensions are 30" wide x 10' deep x 15" high.
The oven has 4" insulated walls and an aluminized steel interior and exterior. A 4200 CFM, 3-HP recirculating blower provides vertical upward and downward airflow to the unit. The oven has three zones: a 2' long open belt loading zone, 10' long insulated heat zone with recirculated airflow and a 2' long open unloading zone. The product is moved through the oven on a 24" wide, 1" x 1" Type 304 stainless steel flatwire conveyor belt with a 1/4 HP motor drive, with variable speed from 0.3 to 6 feet per minute.
Controls onboard No. 829 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, SCR power controller, fused disconnect switch and a recirculating blower airflow safety switch.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
|
|
|
|
|
|
|
|
