Ball Valves have fully machined bore for clog resistance.
October 24, 2006 -
Suited for oil field and petrochem applications, fire-safe TRIAC F91 stainless steel flanged ball valves use regular-port design, while offering rugged construction with solid unibody and pyramidal stem packing. Live-loaded stem packing protects against wear and stem leaks and automation pad allows direct mounting of ISO5211-compliant actuators. Valves come in 0.5-6.0 in. sizes in manual and automated versions, with electric and pneumatic spring-return or double acting configurations.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
A-T Controls, Inc.
11363 Deerfield Rd.
Cincinnati, OH, 45242
USA
New Line of Regular-Port, Fire-Safe Flanged Ball Valves Combines Unibody Strength with Patented Stem Seal and Patented Direct-Mount Actuator Pad
NACE-complaint, fire-safe valve is ideal for oil field and petrochem applications. Manual, electric and pneumatic spring-return or double acting units available

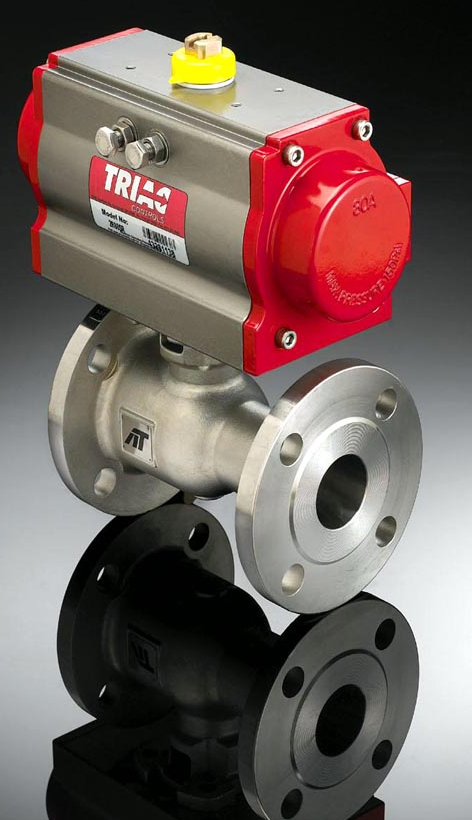

October 2006 - New fire-safe TRIAC F91 stainless steel flanged ball valves use a regular-port design to minimize cost and reduce operating torque, while offering rugged construction with a solid unibody and patented pyramidal stem packing. Ideal for applications from the oil field to food processing plants, the ANSI-class 150 valves are fire-safe, comply with the NACE MRO175 standard for corrosion resistance, and are certified to API 607-4th edition. The live-loaded pyramidal stem packing system features a patented 45° primary seal with Belleville washers and chevron packing, protecting against wear and stem leaks common with ordinary ball valves. A patented automation pad allows direct mounting of ISO5211-compliant actuators to eliminate the cost and fabrication of special couplings or brackets.
F91 valves are available in sizes 0.5" to 6.0" in manual and automated versions, with electric or pneumatic actuators, spring-return or double-acting configuration. The investment-cast, one-piece body can be 316SS or WCB with a stainless steel ball and blowout proof stem as standard. A fully machined bore ensures smooth flow and clog resistance. A wide range of seat materials includes PTFE, RTFE, 50/50, 15% CFTE, PEEK and others, as well as several hard-face and metal-metal options. F91 valves come
standard with an anti-static device and can be specified as traceable. Extensive stocking inventories permit quick configuration and delivery. Valves can be ordered preassembled with actuator for installation ease.
A-T Controls specializes in packaged solutions and fast delivery from stock on a comprehensive selection of ball valves, actuators and controls for process industries.
For more information on TRIAC regular-port valves, contact:
Brad Mueller,
A-T Controls,
11363 Deerfield Rd.,
Cincinnati, OH 45242.
Phone: 513-530-5175
Fax: 513-247-5462.
Email: sales@a-tcontrols.com.
Website: www.a-tcontrols.com.
