Ball Valve features 3 or 4 way body port configuration.
May 17, 2002 - 3L/T2Q33 Series is suitable for diverting, blending, or mixing applications. It is available in carbon or stainless steel in sizes from 3/8 to 1 1/2 in. Heavy-duty center section can be furnished with bolted-on screwed ends for valve rated to Class 400; with flanged ends for either Class 150 or Class 300 valve; or with bolted-on socket or butt weld ends. All body gaskets are PTFE, and it has 4 seats for equal seat loading.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Marwin Ball Valves, Div. Of Richards Industries, Inc.
3170 Wasson Rd.
Cincinnati, OH, 45209
USA

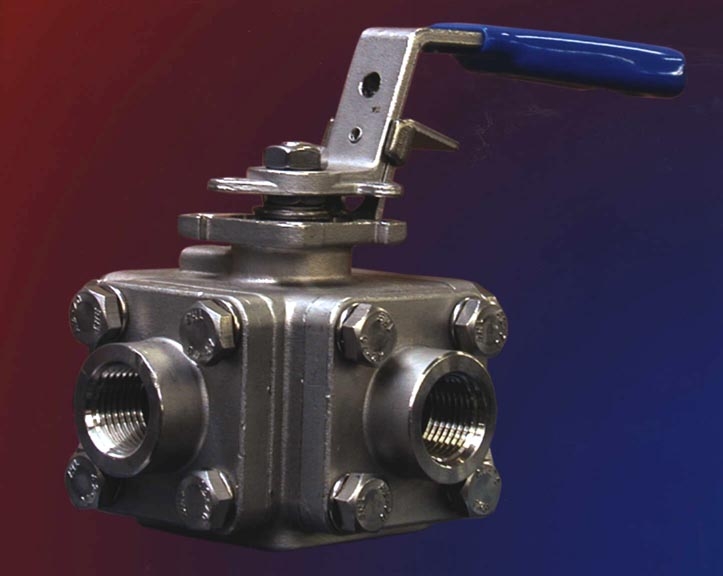

Marwin Valve Introduces 3L/T2Q33 Series 3 & 4 Way Valve
Cincinnati, OH USA - Marwin Valve introduces the 3L/T2Q33 Series 3 & 4 Way Valve; an ideal choice for piping design involving diverting, blending or mixing applications.
The Marwin Series 3L/T2Q33 is a versatile small size (3/8" through 1-1/2") multi-port ball valve. It consists of a heavy-duty center section that can be furnished with bolted-on screwed ends for a valve rated to Class 400, or with flanged ends for either a Class 150 or Class 300 valve. The 3L/T2Q33 can also be furnished with a bolted-on socket or butt weld ends.
All body gaskets are PTFE, eliminating concerns about elastomer compatibility with the operating fluid. The valve features four seats for equal seat loading. The unique live-loaded cup-and-cone lower primary stem seal-thrust bearing separates the dynamic bearing and static sealing functions. In addition, there is a multiple v-ring upper secondary stem seal.
The 3L/T2033 Series is available in carbon or stainless steel and offers a wide variety of possible flow configurations. The Marwin multi-port valve is available in 3 and 4 way body port configurations.
For a copy of the free literature or the name of your local representative, contact Marwin Ball Valves, 3170 Wasson Road, Cincinnati, OH 45209. Phone 513-533-7340, toll-free 800-628-2583, fax 513-533-7343, E-Mail: marwin@richardsind.com, URL: www.marwinvalve.com |
|
|
|
|
|
|
|
