Automated Inspection System examines compression springs.
January 12, 2009 -
Used for over 40 part numbers of compression springs (and other round parts) with 4-10 in. ODs., conveyorized system routes good parts down chute to customer bins and ejects rejected parts to cabinet's internal container. Keyence or Cognex vision camera system, installed above LED backlight area, enables precise inspection/gaging of features such as ID, OD, and broken teeth. Machine status and functions are displayed on 8 in. color touch screen HMI.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Cincinnati Automation Ltd.
1405 Jamike Drive Suite #5
Erlanger, KY, 41018
USA

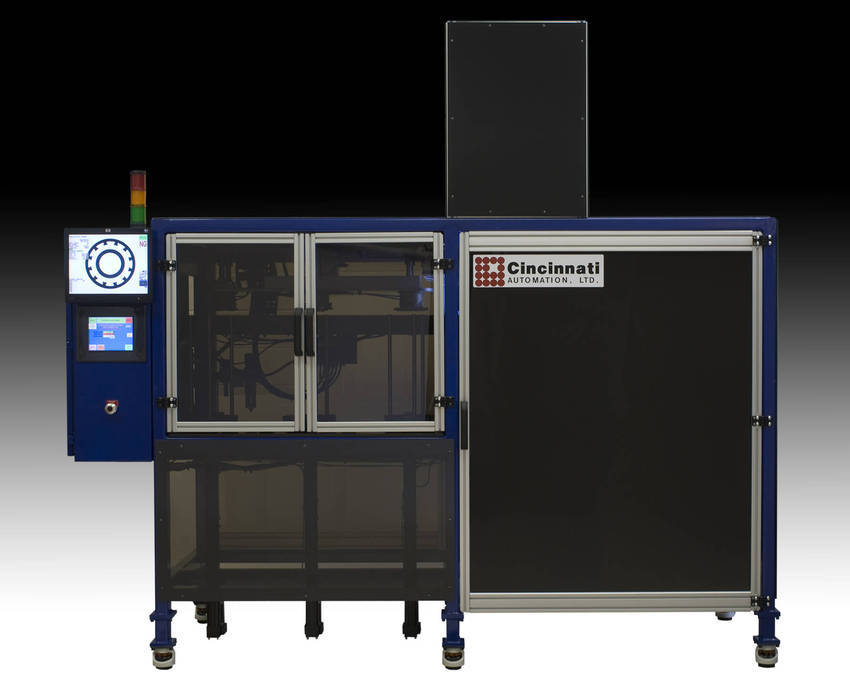

Compression Spring Inspection Machine
Cincinnati Automation releases an automated inspection system designed to be used for over 40 part numbers of compression springs (and other round parts) from 4" up to 10" OD. Parts are loaded in three 18" high stacks with automatic stepper motor height controls. Three 3-finger grippers are used to pick parts from tops of stacks and to place them on the inspection conveyor. A high resolution Keyence or Cognex vision camera system is installed above an LED backlight area for precise inspection/gaging of features such as ID, OD, broken teeth... Good parts are dropped down a chute to customer bins. Rejected parts are ejected inside of the cabinet into an internal container. Machine status and functions are displayed on an 8" color touch screen HMI. An AB micrologix PLC controls all machine operations.
Cincinnati Automation provides machine vision, laser gaging and robotic systems integration services along with specialty inspection, packing, test and automation machines for several industries. Visit their website www.cincinnatiautomation.com to review over 100 inspection applications and for a free project evaluation.
For additional information contact CA at:
Ph. 859-371-5070, Fax. 859-371-4954
Email: psmith@cincinnatiautomation.com
|
|
|
|
