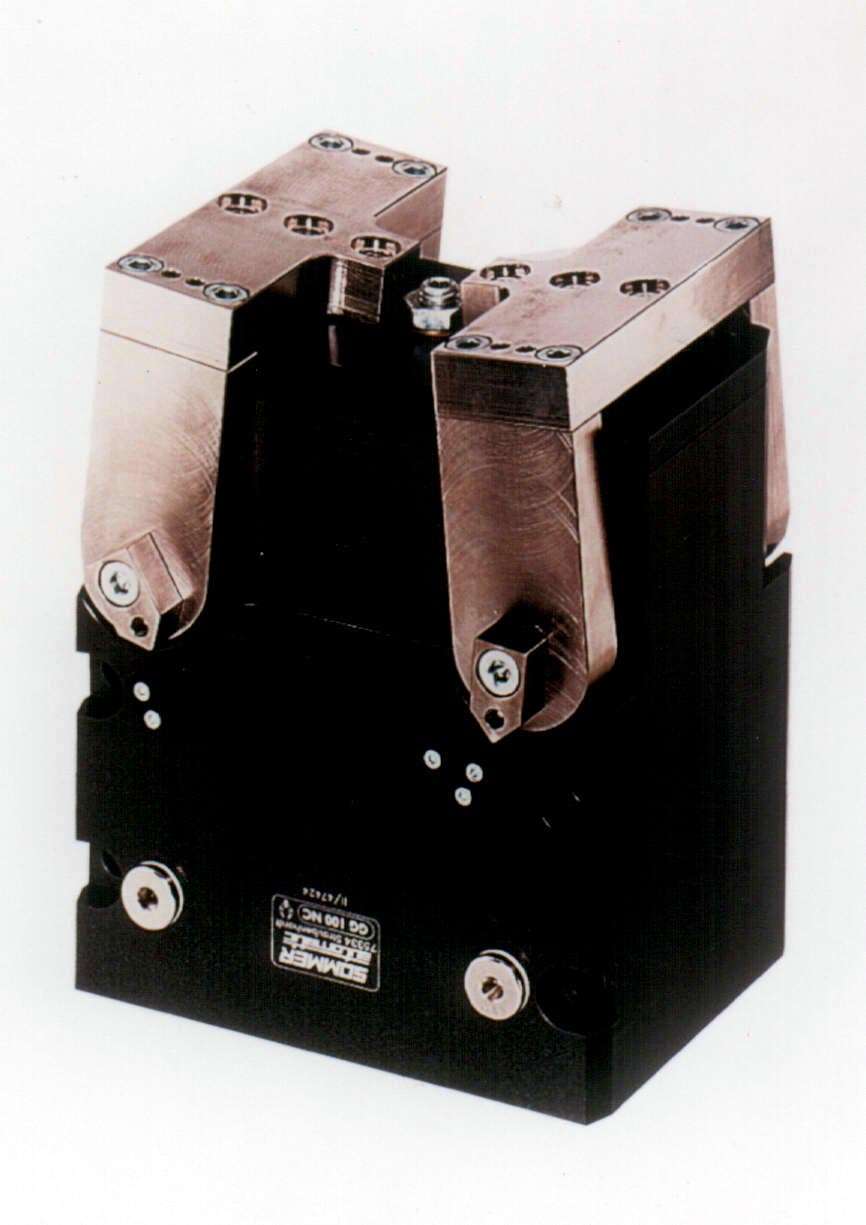

Angular Grippers are sealed against dust, dirt, and coolant.
December 16, 2002 -
Series GG grippers offer up to 35° stroke per jaw to allow clearance for tooling fingers. Opening angle is adjustable via screw on top of gripper. Main air connections are on front of unit with alternate air connections on back and bottom. NC models have spring failsafe device to keep jaws closed in event of pressure loss. Five sizes are offered with gripping force up to 2700 N. Units are suitable for machining and grinding applications.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Techno Sommer Automatic
2101 Jericho Tpke
New Hyde Park, NY, 11040
USA
New Angular Grippers from Techno-Sommer Feature Fully Sealed Design and Adjustable Stroke
New Hyde Park, NY - A new series of grippers from Techno-Sommer, Inc. called the GG-Series features a fully sealed design and adjustable stroke. This family of grippers is fully sealed against dust, dirt, coolant, etc., allowing it to be used in machining and grinding environments. They are ideal for use in wet or dirty applications.
The GG-series also features up to 35° stroke per jaw to allow wide clearance for tooling fingers. The opening angle is adjustable via an adjustment screw on top of gripper to minimize open and close times. For added mounting flexibility, there are main air connections on the front of the unit as well as alternate air connections on the back and bottom. The NC models of these grippers are available with a spring failsafe device to keep the jaws closed in the event of a pressure loss so that parts are not dropped. There are 5 different sizes available in this gripper design with up to 2700N of gripping force.
Additional technical information can be found in our new 550 page "Grippers & Automation Components" catalog (cat# H925) available free upon request from Techno-Sommer, 2101 Jericho Turnpike, Box 5416, New Hyde Park, NY 11042-5416. 2D and 3D Cad files can be found at: www.techno-sommer.com
Contact: Herb Arum
|
|
|
|
|
|
|
|
