Angled Swivel Units suit load/unload applications.
July 9, 2004 -
Designed for handling 2 different parts simultaneously, Models SW50D4, SW74D4, SW100D4, SW150D4, SW190D8 have pivoting transfer plate with mounting surfaces positioned at 90° angle to each other. Pivoting plate rotates 180° when pneumatic pressure is applied. With torque ratings from 1.5-110 Nm, products feature built-in, 4-port rotary manifold (8-port on SW190D8), shock absorbers, center through-hole, and proximity-switch mounting brackets.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Techno Sommer Automatic
2101 Jericho Tpke
New Hyde Park, NY, 11040
USA
New Series of Angled Swivel Units from Techno-Sommer Automatic Solve a Myriad of Specialized Applications

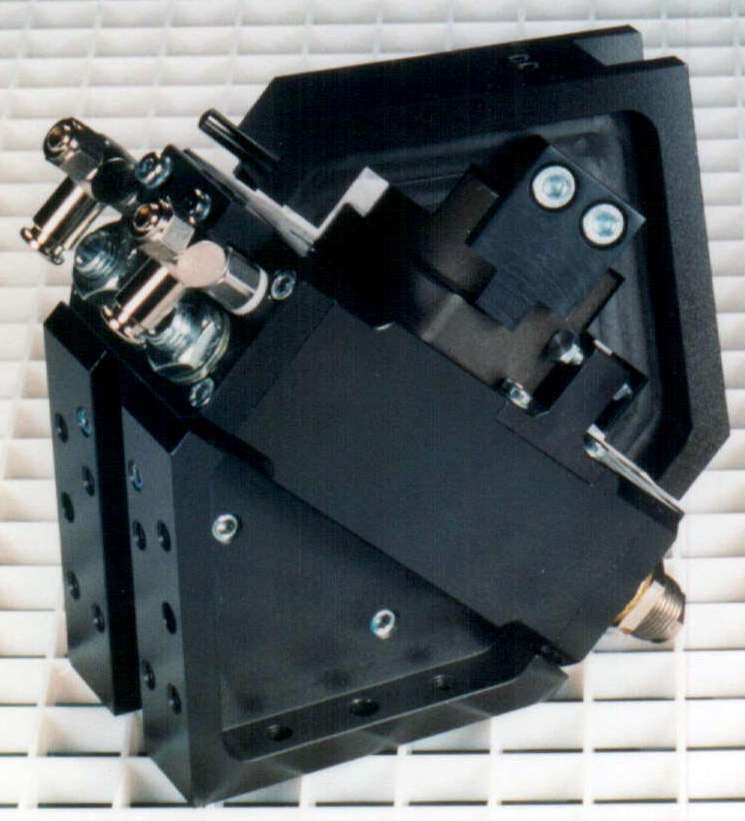

New Hyde Park, New York-A new series of angled swivel units from Techno-Sommer Automatic are designed for load/unload applications or for handling 2 different parts simultaneously. The series of swivel units each have a pivoting transfer plate with mounting surfaces positioned at a 90° angle to each other. The pivoting plate rotates 180° when pneumatic pressure is applied. This swivel system allows the designer to use two different gripper configurations at either end of the swivel plate for the handling of finished and unfinished parts, for example, the angled swivels are ideal for use in machine loading and unloading applications, applications requiring multiple grippers and "pick and place" applications between transfer lines.
Identified as the Models SW50D4, SW74D4, SW100D4, SW150D4, SW190D8 they feature torque ratings of 1.5 Nm, 5.5 Nm, 15 Nm, 46 Nm, and 110 Nm respectively (@6 bar).
All units feature a built in 4-port rotary manifold (8-port on SW190D8), shock absorbers for smooth deceleration, a center thru-hole to pass cables, and proximity switch mounting brackets.
All models are available on a special free trial evaluation basis.
Detailed technical specifications are provided in Catalog H925, available free upon request from Techno-Sommer Automatic, 2101 Jericho Turnpike, Box 5416, New Hyde Park, New York 11042-5416. Phone: 516-328-3970. Fax: 516-358-2576. Internet: http://techno-sommer.
|
|
|
|
|
|
|
|
