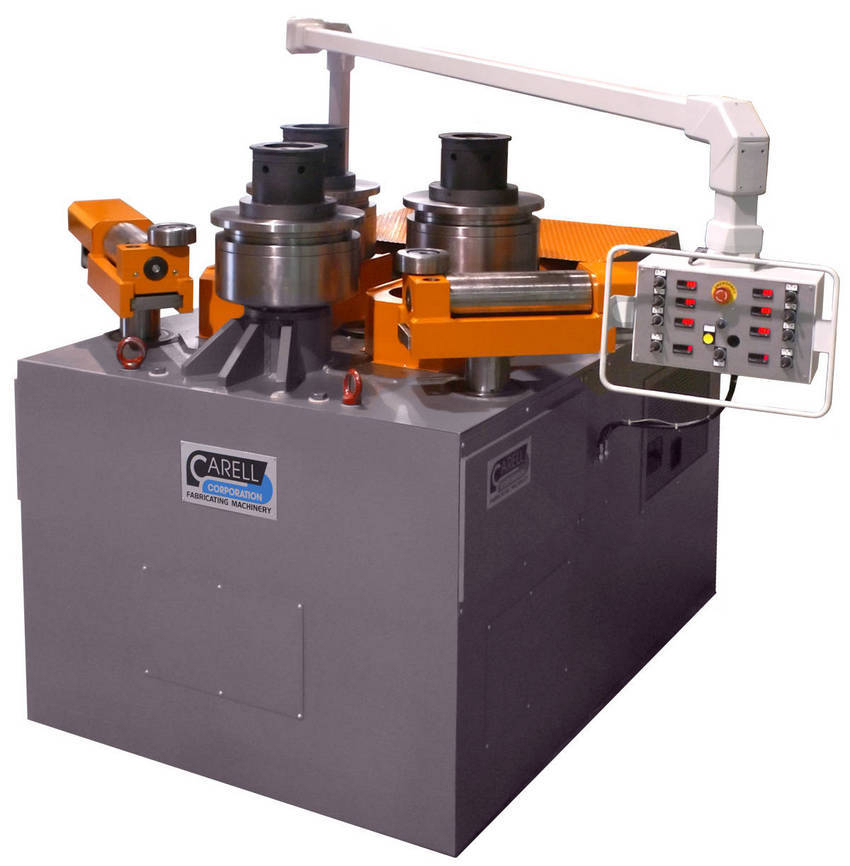

Angle Rolling Machine features overhead CP swing arm.
March 23, 2011 -
Model 310HV4 can roll 6 x 1 ½ in. flat bar hard way, 6 in. Schedule 40 pipe, 5 x 5/8 in. angle leg in, and 6 x 5/8 in. angle leg out with standard equipment. It operates in both horizontal and vertical positions and features lateral guides that are adjustable in all 3 axes. System consists of 3 driven rolls, double initial pinch, universal roll bending machine with independent hydraulic adjustment of both lateral bending rolls and hydraulic powered rotation of all 3 rolls.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Carell Corp.
34225 Hwy. 31, P.O. Box 850
Stapleton, AL, 36578
USA
Carell Introduces Next Gen Angle Rolling
Carell Corporation introduces the new 310HV4 with Overhead CP Swing Arm to its Angle rolling machine lineup
This machine is capable of rolling 6"x1-1/2" flat bar hard way, 6" Schedule 40 pipe, 5"x5/8" angle leg in and 6"x5/8" angle leg out with standard equipment. Operates in both Horizontal AND Vertical positions
The 310HV4 / CPHV-140 is a 3 driven rolls, double initial pinch universal roll bending machine with independent hydraulic adjustment of both lateral bending rolls and hydraulic powered rotation of all three rolls. Lateral guides are adjustable in all three axii. This versatile unit is ideal for rolling standard/special sections plus tube/pipe in mild-structural-stainless steels and a variety of other materials. Machines are furnished with a set of standard universal rolls.
Standard high quality features include:Dual LED Digital Displays to monitor bending roll positions, rugged, rigid, one piece solid steel weldment frame, normalized and precision machined, larger, high strength steel shafts, heat treated and ground, Independent hydraulic adjustment of both lower rolls for double prebending, Universal bending rolls with modular components, hardened and wear resistant.variable speed rotation via electronic proportional valves for precision prebending control, multi axis, 6 way, fully adjustable lateral guides hydraulic powered in all three directions.
Visit www. carellcorp.com or call directly to Carell Corporation at 251-937-0948.
Ray Redlich, Art Manager
Carell Corporation Professional Grade Equipment
carellcorp.com P. O. Box 850, Stapleton, AL 36578 TEL: 251.937.0948 FAX: 251.937.0957
|
|
|
|
|
|
|
|
