Amplifier offers voltage range of -150 to +150 V.
October 15, 2008 -
Model WMA-280 provides voltage precision of 20.0 x amplification ±0.1%, low output noise of 300 microV rms, and bandwidth of DC - 100 kHz. It can be used for precise positioning of MEMS devices, with EO-modulators, as piezo driver, beam steering components, and ultrasonics. Allowing to be interfaced with all common voltage sources and generators, unit can be used both differentially and with its standard BNC input connector.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Falco Systems
dr. ir. W. M. van Spengen
Amsterdam, , 1082 LV
Netherlands

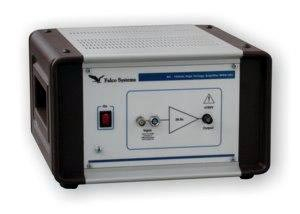

Falco Systems Presents WMA-280 Ultra-Low Noise High Voltage Amplifier
Falco Systems presents the WMA-280 amplifier, modeled after the successful WMA-300 high speed, high voltage amplifier introduced in 2007. The WMA-280 is an ultra-low noise, precision, high voltage laboratory amplifier for demanding applications. Its extreme voltage precision (20.0x amplification ±0.1%), ultra-low output noise (300 microVolt rms) and large voltage range (-150 to +150V) make it an excellent choice for measurements where high precision is important. The bandwidth is of the amplifier is DC - 100kHz. It can be used for precise positioning of MEMS devices (micromachines), with EO-modulators, as piezo driver, beam steering components, ultrasonics, and many more.
The offset and noise specifications of this amplifier are such that, with typical electrostatically actuated MEMS and piezo positioners, sub-atomic positioning accuracy can be achieved easily. The competitive price makes this amplifier also a good candidate for many measurements where the extreme precision the WMA-280 is not so important. For this purpose, the amplifier can be used both differentially (for lowest interference) and with its standard BNC input connector, so that it can be easily interfaced with all common voltage sources and generators.
|
|
|
|
|
|
|
|
