Air Conditioner offers 1260 BTU/370 W capacity.
May 14, 2003 -
Model K400F features 2 sealed air circuits, which provide closed loop cooling that isolates interior of control cabinet from ambient conditions. Heat transfer from interior of cabinet to outside takes place via CFC-free refrigerant R134a, which permits below ambient cooling of cabinet's interior at ambient temperature range of 69-132°F. Operating voltage is 230 V, 50/60 Hz with nominal current of 1.6 A. Unit is suitable for external or internal control cabinet mounting.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Haewa Corp.
3764 Peachtree Crest Dr.
Duluth, GA, 30097
USA

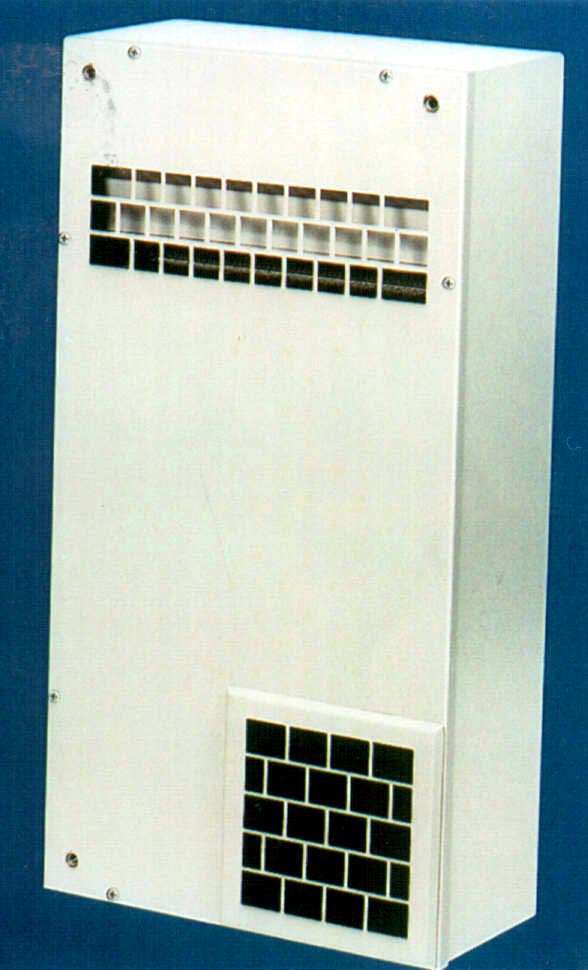

Haewa Corporation is Adding Model K400F to its Extensive Offering of Standard and Maintenance-Free Air Conditioners
Haewa Corporation of Norcross, GA is adding model K400F, a 1260 BTU/ 370 watt capacity compact air conditioner, to its extensive offering of standard and maintenance-free air conditioners.
The K400F air conditioner's two completely sealed air circuits provide closed loop cooling that isolates the interior of the control cabinet from ambient conditions. Heat transfer from the interior of the cabinet to the outside takes place via a CFC-free, environment-friendly refrigerant R134a, which permits below ambient cooling of the cabinet's interior at an ambient temperature range of +20°C (69°F) to +55°C (132°F). The cabinet inside temperature, factory set at +35°C (95°F), is field adjustable to suit specific cooling requirements. The external fan operates only when cooling, thereby reducing filter maintenance and operating current.
A patented evaporator assures condensation removal and evaporation. These air conditioners are designed for either external or internal control cabinet mounting.
Compact K400F air conditioners measure W=10.63", H=20.47", D=4.80" and weigh 30.5 lbs. The operating voltage is 230 V, 50/60 Hz with a nominal current of 1.6 A. Each air conditioner is shipped complete with a 8' power cord, a filter pad that can be changed without tools, foamed-in-place gasketing, mounting hardware and operating and installation instructions. K400F compact air conditioners are housed in a steel cabinet finished with a tough epoxy-polyester powder coating, light beige per RAL 7032.
Other surface finishes, stainless steel housings or different operating voltages are available upon request.
For further information on K400F compact air conditioners, or on Haewa's complete line of climate control products, contact:
Pete Ovdenk
Marketing Manager
1-800-783-4239
Tel: 770-921-3272
FAX: 770-921-2896
Email: haewa@bellsouth.net
Web: www.haewacorp.com
|
|
|
|
|
|
|
|
