AC/DC Power Supplies provide wide output adjustability.
February 4, 2013 -
Available in 3U x 15 x 12 in. benchtop model and 3U x 19 x 12 in. rackmount version, fan-cooled LPS 3K Series accepts universal AC input voltage of 95–264 Vac and uses internal modules for output ranges of 14–37 V at 80 A, 28–74 V at 40 A, or 60–160 V at 18 A. Output voltage adjustments are made via potentiometer knob, and power factor is corrected to minimum of 0.97 at full load for entire input range, ensuring low input harmonic distortion in compliance with EN6100-3-2 and EN61000-3-12.
Original Press release
Absopulse Electronics, Ltd.
110 Walgreen Rd.
Carp, ON, K0A1L0
Canada

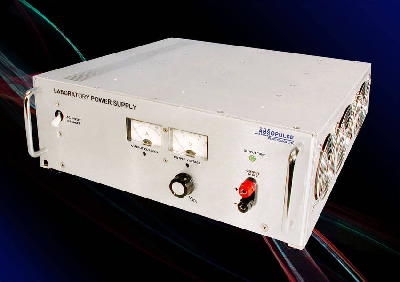

3kW Power Supplies Provide Wide Output Adjustability
ABSOPULSE Electronics’ LPS 3K ac/dc power supply series with PFC input was designed specifically for applications that require wide output adjustability. This heavy-duty, industrial grade series is available in bench-top and 19” rack-mount format and is suitable for product testing and similar purposes in engineering labs or in the field.
A broad range of models are available, with lead times of only a few weeks. The units are built with internal modules that are typically available from stock for the output ranges 14-37V (24V) at 80A, 28-74V (48V) at 40A or 60-160V (125V) at 18A. Output voltage and current are displayed on analog meters on the front-panel of the unit. Output voltage adjustments are made via a potentiometer knob which is located just below the meters. Electronic adjustment by analog control voltage (0 – 10V or similar) is also available. The isolated, floating output can be grounded to either terminal so the unit can be used in either positive or negative grounded systems or left floating.
The unit accepts a universal AC-input voltage (95V-264Vac). The power factor is corrected to a minimum of 0.97 at full load for the entire input range, ensuring low input harmonic distortion in compliance with EN6100-3-2 and EN61000-3-12. The AC input is equipped with a 50A input breaker, which is also used as an ON/OFF switch and is located on the front-panel for easy access. Other protection features include inrush current limiting, rectangular current limiting with short-circuit protection and thermal shutdown with self-resetting once conditions have normalized.
Cooling is by three high quality internal fans that provide sufficient airflow for operation at full specification over a 0ºC to 50ºC temperature range. Extended temperature ranges are available on request.
The bench-top design is housed in a ruggedly constructed 3U x 381 x 305 mm (3U x 15” x 12”) chassis and the rack-mount version in a 3U x 19” x 305 mm (3U x 19" x 12”) chassis.
Please contact us for pricing and availability.
Company Profile
Established in 1982, ABSOPULSE Electronics specializes in the design and manufacture of high-reliability, heavy-duty switch-mode power conversion products for the railway, automotive, industrial automation, power utilities, mining, marine, and telecommunications sectors.
Product Range
The company’s product line includes AC-DC power supplies and battery chargers, DC-DC converters, sine-wave inverters, phase and frequency converters, DC-input dimmable back-light inverters for LCD displays, DC-output UPS systems, laboratory power supplies and complete power systems in 19" and 23" racks.
Design Capabilities
ABSOPULSE provides cost-effective solutions to almost any input, output and mechanical configuration requirement.
|
|
|
|
|
|
|
|
|
|
|
