Ethernet/Serial WiFi Bridge simplifies wireless upgrades.
October 29, 2008 -
As 3.2 x 3.0 in., 2.4 GHz IEEE802.11b/g-based module for embedded systems, WIZ-600Wi lets developers add wireless to their products without redesign. It has 33 Mbps Ethernet and 115 kbaud RS232C interfaces as well as Media Independent Interface for external PHY. Solution also supports 54 Mbps WLAN communications and 10/100 Mbps Fast Ethernet or RS232 serial connections. Operating as access connection/repeater, bridge has 100 m indoor and 400 m outdoor max operating ranges.
|
|
|
|
New Economical Ethernet/Serial WiFi Bridge

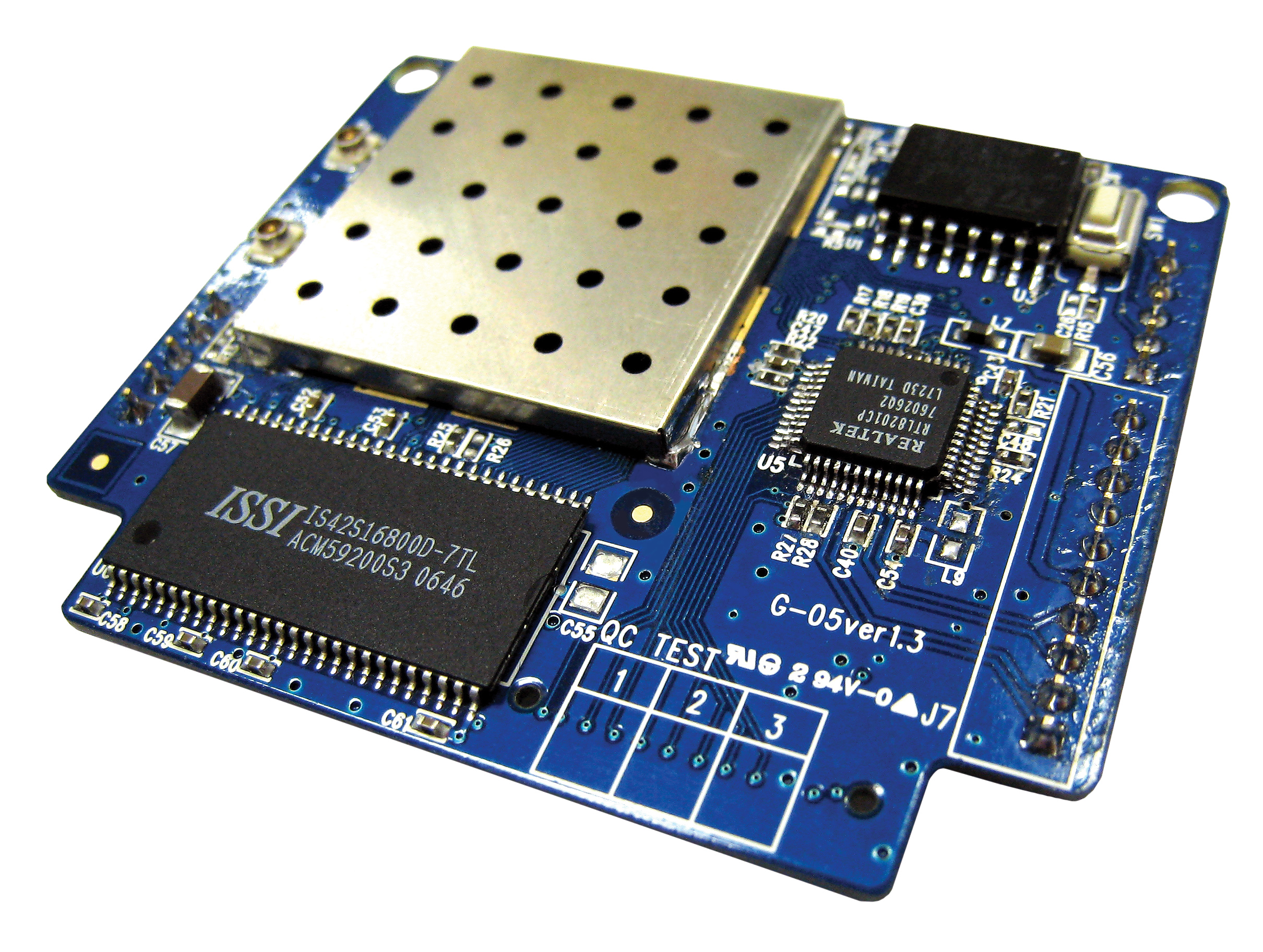

Pittsford, NY: WIZ-600Wi is a tiny (3.2" x 3.0") 2.4GHz IEEE802.11b/g-based wireless module for embedded systems which supports not only Ethernet but also an RS232C interface, enabling comprehensive "Serial-to-Wireless" functions. A Media Independent Interface (MII) for external PHY is also featured, used to connect a 100Mbs Ethernet MAC-block to an off-board PHY IC. A maximum real data streaming rate of 33Mbps to Ethernet is possible, or 115kbaud via RS232. An RSSI signal is available for displaying RF power between the module and its access point. Additionally, the WIZ-600Wi has three general purpose I/O lines.
WIZ-600Wi supports 54Mbps wireless LAN communications and 10/100Mbps Fast Ethernet or RS232 serial connections. Now you can add wireless to your product without a redesign! WIZ600Wi operates as an access connection or a repeater. Ethernet features include: dynamic IP configuration by using DHCP server/client; filtering by using MAC address (ACL); multiple SSID & VLAN support; simple configuration using browser-based AP utility. WiFi features include: support for 4/128/152Bit WEP or WPA encryption; EAP certification; 13 available/selectable channels.
WIZ-600Wi Requires 3.3V at >700mA, WIZ-600Wi's operating range is up to 100m indoors, or up to 400m outdoors. A socket for an external antenna is also provided. An evaluation board with easy-start DB9 (serial) and RJ-45 (Ethernet) sockets is also available.
WIZ-600Wi is available now from WIZnet's USA distributor Saelig Company at $62.50 each. WIZ-600Wi Evaluation Board is $149.00. 1- 888-7SAELIG info@saelig.com www.saelig.com
Hi-Res Image: http://www.saelig.com/supplier/wiznet...
Direct Link: http://www.saelig.com/pr/wiz600wi.htm
