2- and 3-Way Solenoid Valve is suitable for corrosive fluids.
December 5, 2001 - Miniature Isolation Valve is rated up to 35 PSI, Cv=.05. It is availabe in 12 VDC and 24 VDC models, normally open or normally closed with numerous port options. Materials in contact with flow path are limited to PEEK and EPDM or FKM-GF. Seat and diaphragm design provides long life exceeding 15 million cycles.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
South Bend Controls, Inc.
1239 Northside Blvd.
South Bend, IN, 46615
USA

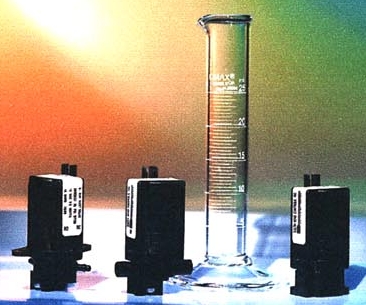

2-Way and 3-Way Miniature Isolation Valve
This compact solenoid valve incorporates several features which make it an ideal choice in applications using corrosive (aggressive) fluids or where high-purity fluids are found. The materials in contact with the flow path are limited to PEEK (polyetheretherketone) and EPDM (ethylene propylene) or FKM-GF (Highly-fluorinated fluorocarbon). The patented seat and diaphragm design provides exceptional sealing characteristics and long life (exceeds 15 Million cycles). Rated up to 35 PSI, Cv = .05 and available in 12 VDC and 24 VDC models, normally open or normally closed with numerous port options. This valve has uses in blood analysis, clinical chemistry, DNA processing, immunoassay, ultra-pure water and other applications.
|
|
|
|
|
|
|
|
|
|
|
