USB 3.0 Connector supports 5 Gbps data rate.

FCI    Etters, PA 17319
Sep 21, 2012 Halogen-free and RoHS-compliant, SuperSpeed USB 3.0 Connector is available in right-angle and vertical mounting receptacle styles. Unit features copper alloy contacts with steel back shell and thermoplastic resin housing. Operating from -55 to +85°C, connector allows for up to 3,500 mating cycles and is backward compatible with USB 2.0 connectors. Product optimizes rich-media device interaction in consumer electronics and audio/video applications.

Power Distribution Connectors meet medical equipment needs.

FCI    Etters, PA 17319
Aug 31, 2012 Simultaneously handling power and high-speed data, PwrBlade® Series enhances medication inventory management, patient monitoring, and medical record management. Featuring molded guideposts on header, connectors properly engage with receptacles and provide alignment during blind mating. Various configurations are available with either solder or press-fit board termination. Connectors feature up to 20 power contacts with 0-148 signal contacts and provide 3 levels of power/signal sequencing.

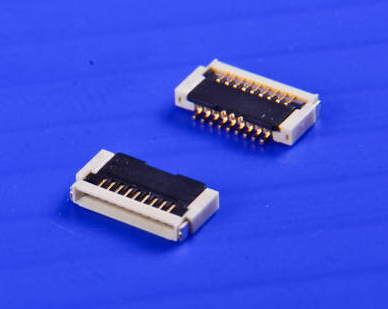

FPC Connectors meet mobile market's low-profile requirements.

FCI    Etters, PA 17319
May 11, 2012 With 0.4 mm pitch and 0.9 mm height, SFGL Series back flip-type actuator connectors are suited for use in tablet PCs. SFVL Series, available with 0.5 mm pitch and 0.7 mm height, provides secure mating in confined board spaces. Units meet accepted standards for Zero Insertion Force connectors used in backlight and touchscreen applications and are commonly used in smartphones and mobile phones.

Micro USB Connector can be used in wide range of devices.

FCI    Etters, PA 17319
Jul 09, 2010 Suited for space-constrained applications, Micro USB ensures direct data transmission among mobile devices and complies to USB 1.1 and 2.0 standards. Passive latch mechanism prevents unintentional cable release, and life span is rated to 10,000 cycles. Connector's receptacles and plugs are available in various mounting and termination configurations. Micro USB B and A/B type receptacles - Standard, Mid-Mount, and Reverse - as well as B-type plug are available.

Card Edge Connector is rated to 9 A per power contact.

FCI    Etters, PA 17319
Feb 05, 2010 Based on stamped-and-formed power contact technology, HPCE(TM) High Power Card Edge Connector features low-profile height of less than 7.50 mm, which optimizes airflow and heat dissipation. Unit is available with power and signal contacts integrated into single molded housing for power distribution and power control. Equipped with touch-proof safety feature and polarization option, connector is suited for 1U/2U servers, storage enclosures, telecom equipment, and datacom/networking equipment.

Miniature Modular Interconnects are on .050 in. pitch.

FCI    Etters, PA 17319
Feb 04, 2010 Featuring .050 in. pitch, Minitek 127(TM) modular interconnection system includes through-mount and surface-mount, as well as straight and right-angle versions, with pin counts up to 100 positions and 3 types of plating. Miniature system is capable of wide variation of board-to-board and cable-to-board interconnections.

Mezzanine Connector System has high-density, high-speed design.

FCI    Etters, PA 17319
Jan 20, 2010 Supporting 20+ Gbps data stream, TwinMezz(TM) connectors have hermaphroditic design that mates to itself and supports stack heights from 12-40 mm with 200-800 total contacts. Configurations with 6 differential signal pairs per column provide maximum signal density, delivering 25 high-speed signal pairs in 1 cm² or 161 signal pairs in 1 in². Options for integrated molded or metal guides and capability to mix signal and power wafers in single connector promote flexibility.

FCI Mezzanine Connectors include multiple stack heights.

FCI    Etters, PA 17319
Jan 04, 2010 BergStak® mezzanine connector system double-row 0.8 mm connectors feature stack heights from 40-200 position sizes in 20 position increments and 5-16 mm stack heights in 1 mm increments. Scalable, parallel board-to-board connectors offer performance of up to 10 Gbps. With blade-on-beam design, units ensure precise contact positioning for accurate mating alignment and reliability. They are suitable for communications, computer, industrial, medical, and test equipment applications.

I/O Cable Assemblies target low-profile power applications.

FCI    Etters, PA 17319
Dec 02, 2009 Rated to 37 A per power contact without exceeding 30°C temperature rise in still air, 8.38 mm high Pwr Profile+ assemblies are available with 2 power contacts for power and return applications and 2 signal pins for presence detection or power control. Integrated latching system minimizes connector/cable footprint and housing design includes touch-proof safety features and polarization for proper mating. Optional grounding shield on board connector helps meet EMC requirements.

Connectors are optimized for use in 85 ohm environments.

FCI    Etters, PA 17319
May 29, 2009 AirMax VS® connectors minimize impedance discontinuities and unacceptable signal loss when inserted in 85 ohm channels. Mating interfaces also satisfy demands for backwards compatibility to legacy 100 ohm product interfaces. Supporting Intel QPI (Quick Path Interconnect) links, standard connector configurations include vertical and right-angle header and receptacle modules. Products comply with differential insertion loss, impedance, and crosstalk requirements.
