Press-Fit RJ45 Connectors promote process efficiency, throughput.

Pulse Electronics    Trevose, PA 19053
Apr 12, 2013 Available as press-fit RJ45 integrated connector modules (ICMs) with magnetics, JPB 2x6 1000BASE-T PoE ICM and JT5 2xN 10GBASE-T ICM series use compliant/interference pin that provides pressure contact with PCB. This eliminates need for wave soldering, increasing process efficiency as well as allowing for rework of ICM without damaging PCB. Products meet IEEE 802.3 specifications.

SMT Power Inductors use ferrite core material.

Pulse Electronics    Trevose, PA 19053

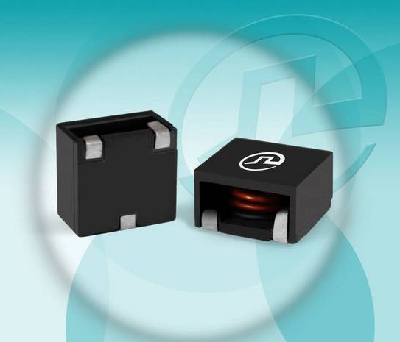

Apr 04, 2013 Offered in sizes from 7.6 x 7.4 x 6.4 mm to 21.7 x 21.5 x 12.5 mm, Round-Wire Coil Surface Mount Power Inductors range from 0.3–50 µH with current rating up to 70 A. Models PG0871NL, PG0702NL, PG0926NL, PH0936NL, and PG1083NL have unconnected third pin that distributes weight and balances 3 terminals during mechanical vibration. Flattened leads serve as pad, making coil self-leaded. Inductors are used as energy storage devices and filters in POL regulators and as DC/DC converter output inductors.

Isolation Transformers are optimized for power handling capacity.

Pulse Electronics    Trevose, PA 19053

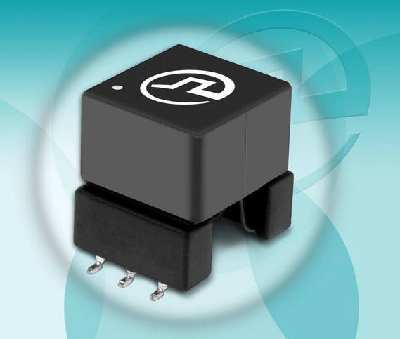

Apr 01, 2013 Offering 24 output voltage and power combinations, 17.7 x 14.0 mm EP13 Plus series includes 12 isolation transformers that accommodate input voltage ranges of 9–57 V and 33–57 V and provide 6 different output voltage combinations from 3.3–24 V. Modified core with maximized cross-sectional area reduces number of turns necessary for given output voltage or increases output power by optimizing utilization of winding window. Bobbin lead shape increases allowable lead wire terminations.

DSL Splitter offers lightning and power fault protection.

Pulse Electronics    Trevose, PA 19053
Mar 25, 2013 Designed with 6 pins instead of 4 pins, B8841PNL Central Office VDSL2 Splitter Module enables protective device, such as sidactor, to be added on board underneath module and eliminates need for separate protection rack card. Pin location allows fast-acting secondary over-voltage protector to be used to protect filter from surge effects while maintaining VDSL2 performance. Splitter meets requirements for ETSI 600 Ω ADSL to VDSL2 applications and China YD/T 1187-2006 ADSL 600 Ω.

Tunable LTE Antenna provides 9 bands.

Pulse Electronics    Trevose, PA 19053
Mar 05, 2013 Housed in metal chassis with dielectric antenna carrier, mCOMET combines 2 LTE MIMO antennas in same end of one device to provide 9 frequency bands of functionality in volume of 3.20 cc. Frequency bands for both antennas include: low band of 698-960 MHz and high bands of 1,710-2,170 MHz and 2,500-2,690 MHz. Unit is intended for use in smartphones using RF chips with 2PDT antenna switch and metal ring feature. If user's hand is covering one antenna, transmission is switched to other antenna.

NFC Antenna complies with EMVCo 40 mm specification.

Pulse Electronics    Trevose, PA 19053
Feb 28, 2013 Measuring 35 x 50 mm with minimum thickness of 0.185 mm and 2 x 2 mm pad size, NFC Ferrite Sheet Antenna enables mobile devices to read data from up to 40 mm, supporting communication with other wireless devices for payments, access and control, credential storage/exchange, and content consumption. Antenna is constructed of thin ferrite with one-sided flex and thin adhesive. EMVCo specifications ensure global interoperability and compatibility of chip-based payment cards and acceptance devices.

RF MoCA Filter Modules are pin-in-paste compatible.

Pulse Electronics    Trevose, PA 19053
Feb 06, 2013 Compliant with MoCA 1.1 and 2.0 requirements, RF MoCA Filter Modules can be configured as multiband diplexers/triplexers with CATV, satellite, and DOCSIS frequencies and optional built-in surge protection. Units withstand max reflow temperature of 260°C and operate over extended temperature range of -40 to +85°C. Pin-in-paste technology, using reflow instead of wave soldering, enables RF filters to be inserted into PCB using pick-and-place equipment, eliminating need for manual placement.

AC Current Sensor has dynamic range of 0.10 to 1000+ A.

Pulse Electronics    Trevose, PA 19053
Nov 20, 2012 Able to accommodate up to 0.750 in. dia current carrying conductors or 0.750 x 0.093 in. buss bar, Sidewinder® PA3209NL measures AC current at 50 Hz or 60 Hz in smart meters, industrial motor controls, and power line monitoring applications. Unit has coreless design, no saturation limits, and meets ANSI C12.20 accuracy class 0.2 and IEC 62053-22 class 0.2. Also, sensor meets Class 1 requirement for immunity to external AC magnetic fields and is immune to external DC magnetic fields.

Ferrite Sheet Antenna fosters NFC-enabled designs.

Pulse Electronics    Trevose, PA 19053
Sep 05, 2012 Planar ferrite sheet antenna, measuring 35 x 50 mm with minimum thickness of 0.30 mm, enables safe, non-contact, wireless communication for NFC connectivity to mobile devices. Even when installed in handset in close proximity to battery or metal housing, this near field communications (NFC) antenna lets mobile phones read data from distance of up to 40 mm to meet EMVco specifications. Design can be customized to accommodate varying sizes of handset mechanics.

Power Transformers support RS485/232 communications bus.

Pulse Electronics    Trevose, PA 19053

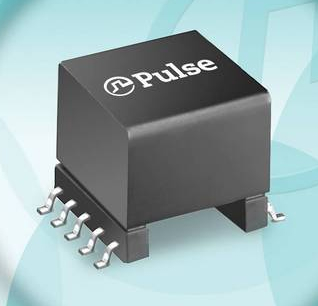

Aug 14, 2012 Designed on SMD platform with offset pins to maintain separation between primary and secondary circuits, PH9185NL Series Switch Mode Power Transformers provide reinforced insulation power supply for RS485/RS232 transceiver ICs. In accordance with IEC60950/EN61558, construction of devices has been certified by UL/TUV for reinforced insulation up to 400 V working voltage. Design utilizes Class F insulation system, and guarantees 8 mm creepage with 4,000 Vrms isolation voltage.
