Thermal Cure System uses forced convection heating.

Specialty Coating Systems    Indianapolis, IN 46278
Feb 28, 2013 Precisioncure TC is available with 3 or 7 heating zones, featuring independent closed-loop blower speed control to ensure stable thermal performance. Power lift hood allows access to process chamber, while Windows®-based software offers data logging capabilities. Thermal cure system mates seamlessly with Precisioncoat, providing efficient coating and curing.

Adhesion Promotion Technology addresses polymeric materials.

Specialty Coating Systems    Indianapolis, IN 46278
Jun 08, 2011 AdPro Poly® solves adhesion challenges of polymeric materials, including polyimide (Kapton®) substrates, by enabling Parylene coatings to provide long-term reliability and protection for innovative, complex technologies. Exhibiting stability at elevated temperatures, product is suited for harsh environment applications and is biocompatible for medical device applications.

Conformal Coating fluoresces under UV light.

Specialty Coating Systems    Indianapolis, IN 46278
Mar 18, 2011 Because it fluoresces under specific spectrum of UV light, SCS Parylene C-UVF(TM) enables identification and verification of component protection. Optically clear coating exhibits same electrical, mechanical, and physical properties of SCS Parylene C while incorporating fluorescence capability used by military, defense, and aerospace industries to ensure components are protected with Parylene.

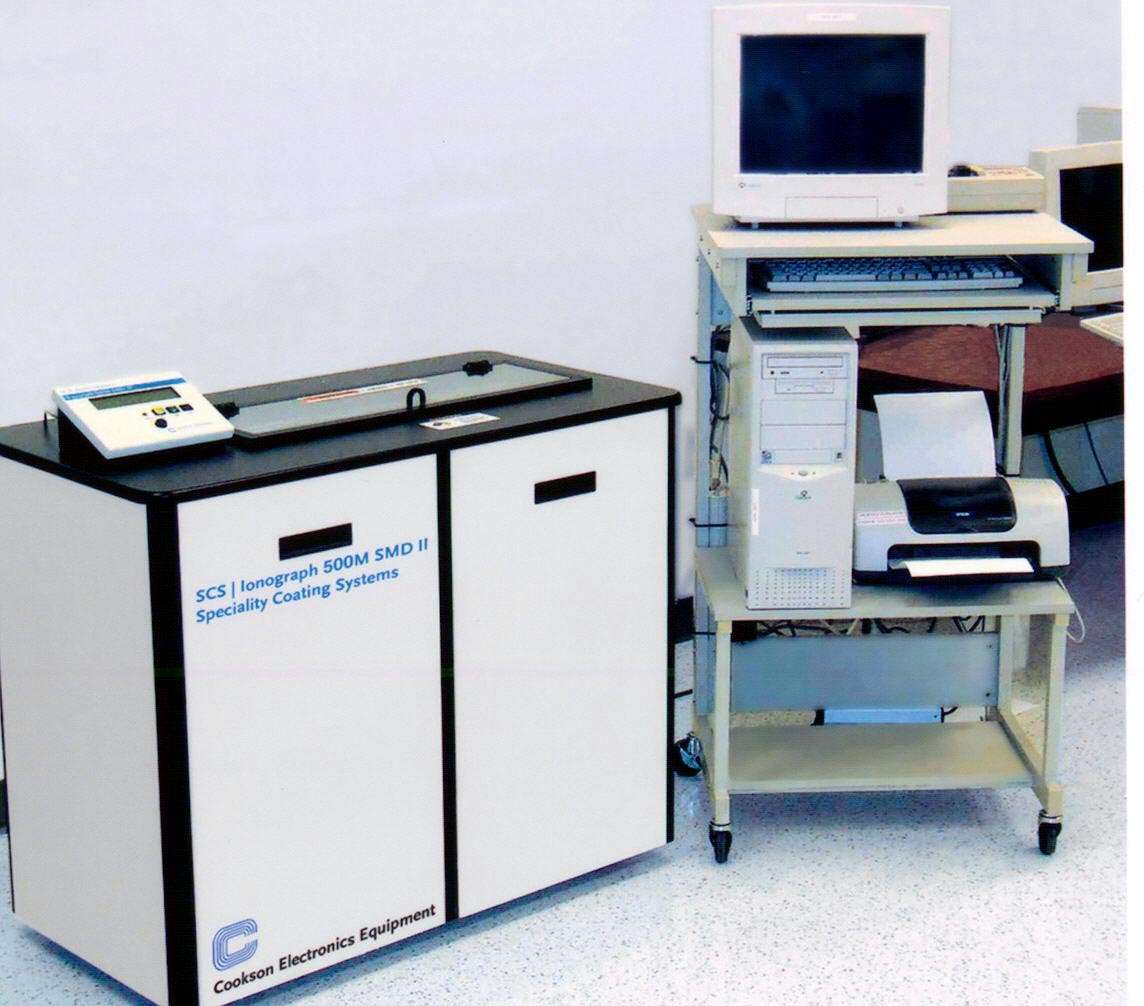

Electronics Cleanliness Testers produce graphical summaries.

Specialty Coating Systems    Indianapolis, IN 46278
Sep 29, 2010 Utilizing dynamic testing method, Ionograph® ionic contamination test systems determine cleanliness of electronic components, assemblies with SMT devices, and bare/assembled PCBs. Onboard computer is included for control and monitoring, while PowerView software facilitates testing and results analysis. Specific features of latter include Check IPA feature that displays percent of alcohol present in solution and also provides milliliters of alcohol or water needed to achieve 75% IPA.

Contamination Test System stores up to 99 test profiles.

Specialty Coating Systems    Indianapolis, IN 46278
Dec 21, 2009 Omegameter 600SMD ionic contamination test system determines cleanliness of electronic components, assemblies with SMT devices, and PCBs. It offers users ability to test components with heated or non-heated test solution, and optional software is available that provides additional memory to store test results that can later be viewed, sorted, printed, and/or exported in spreadsheet for further analysis.

Entry-Level Spin Coater delivers precise control.

Specialty Coating Systems    Indianapolis, IN 46278
Apr 30, 2009 Offered as programmable and non-programmable units with options to maximize coating efficiency, 6800 Spin Coater Series facilitates accurate application of liquid coating materials such as photoresists, polyimides, metal-organics, dopants, silica films, and organic/aqueous solutions. Circuitry provides precise control of spin speed and acceleration/deceleration rates, while 3-button keypad and LCD on front panel facilitate control.

Coating and Dispensing System applies RTV materials.

Specialty Coating Systems    Indianapolis, IN 46278
Mar 28, 2008 Controlled by SCS software on Windows® XP, SCS Precisioncoat RTV System is fully programmable, offering precise bead control and accurate application. Standard configuration applies coatings on 3-axes system. Fourth and fifth axes can be added for tilt angles up to 45° or 360° rotation functionality. Room Temperature Vulcanization materials offer protection to components that may be exposed to vibration, temperature extremes, moisture, salts, and electricity.

Software supports ionic-contamination test equipment.

Specialty Coating Systems    Indianapolis, IN 46278
Apr 11, 2003 Windows®-based PowerView 2003(TM) provides control of Ionograph test equipment operating under PC supervision. Product establishes user-defined test parameters for each product test sequence, calibrates test equipment, and allows reminders to be set for user calibrations. Software has 32-bit user interface and includes graphical and database capabilities, integral profile and test data query system, and database export capabilities.

Spin Coat Systems coat materials on planar substrates.

Specialty Coating Systems    Indianapolis, IN 46278
Oct 17, 2002 Spincoat G3 Series incorporates microprocessor-based, closed loop servomotor control for speed regulation. Units include 8, 12, and 15 in. bowl models in 3 enclosure sizes. Eight in. model is available in non-programmable and programmable versions, while 12 and 15 in. models are available as programmable units only. Programmable units can store and execute 30 programs having up to 20 individual steps each, and are controllable in 1.0 rotation increments and 0.1 sec timing increments.

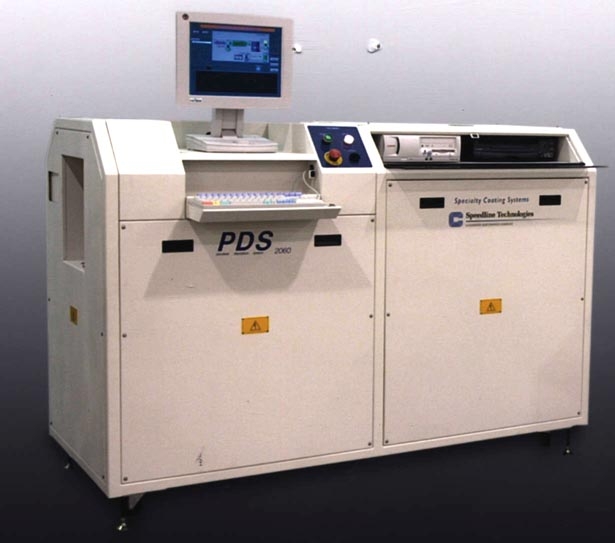

Parylene System modifies pressures and dwell times.

Specialty Coating Systems    Indianapolis, IN 46278
Nov 08, 2001 PDS-2060PC Parylene deposition system, with integrated personal computer for programmable control, allows users to establish and refine programs that direct each phase of Parylene coating cycles. System includes on-board personal computer, fold-out keyboard, flat-screen monitor, and printer that operate under Labview(TM) software. Proprietary software prompts users for each parameter from vacuum pump-down to final Parylene film deposition.
