Socket Fusion Tool brings pipe and fittings together evenly.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Apr 16, 2013 With Spider™ 125, single technician can properly align, heat, fuse, and cool pipe. Device is non-back drivable, which means that constant and consistent pressure is maintained throughout socket fusion process. Designed for 63–125 mm polypropylene-random, Spider 125 works by attaching pipe and fitting using complete encirclement clamping system that eliminates slippage. Worm gear drive and parallel link system bring pipe and fitting together smoothly and accurately, with controllable force.

Pipe Rollers handle 12-54 in. IPS polyethylene pipe.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Feb 25, 2013 Providing capacity of 9,000 lb per unit, MegaMc® Rollers keep pipe off ground and aid in pulling of fused pipe along right of way. Products feature tip-resistant design and sealed ball bearing construction. Since rollers are stackable, up to 52 can be transported on flatbed semi trailer. Rollers can also be paired with other McElroy productivity equipment to boost efficiency on jobsites.

Pipe Fusion Machine offers economy engine throttle setting.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Sep 24, 2012 Equipped with hydraulic clamping and indexer-mounted heater and facer, TracStar® 500 Series 3 is capable of fusing thermoplastic pipes from 6 in. IPS to 20 in. OD in size. Fusion carriage can be removed and lowered into ditch for fusions in tight spaces. In addition to Standard model, self-contained, self-propelled, all-terrain machine is available in Automatic version, which offers control and monitoring over heat, soak, fuse, and cool cycles.

Data Logger records pipe fusion process parameters.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Mar 20, 2012 Designed to verify that proper pipe fusion procedures have been followed prior to installation, DataLogger® 4 comprises handheld computer for recording and navigating data, as well as data collection unit that records 0-3,000 psi fusion pressure over time. FusionGuide(TM) feature gives visual go/no-go interpretation of graphs presented on handheld computer and PC after data download. All data generated can be stored, viewed, printed, or transferred to desktop computer for archiving.

Side-Bend Tester tests for ductility in pipe fusion joints.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Dec 14, 2011 Offering quality assurance testing in field, Guided Side-Bend Tester can perform bend-back test on polyethylene pipes with 1-7 in. of wall thickness. Testing method places entire wall thickness into tension and gives assurance of ductility. Tester works by using planer to cut test coupon that is then put into hydraulically powered device. Testing device bends coupon to strain fusion joint past material's yield point. If no breaks or gaps are visible, coupon and fusion joint have passed test.

Pipe-Handling System facilitates jobsite pipe storage.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
May 13, 2011 Comprised of pipe racks and powered pipe stands that hold enough lengths of pipe for day's worth of work, MegaMc® PolyHorse(TM) is suited for jobsites using 20-48 in. dia polyethylene pipe. Because pipe is stored in one location and is ready for use, system allows heavy machinery to work other places on site. Single operator can maneuver pipe onto pipe stands and into pipe fusion machine with use of remote control. Max capacity is 70,000 lb, with max pipe length weight of 10,500 lb.

Pipe Fusion Machine incorporates double-action hand-pump.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Oct 13, 2010 Combining rolled chassis with hand-pump fusion carriage, Rolling 28 Hand-Pump Fusion Machine fuses 2 in. IPS through 8 in. DIPS high-density polyethylene pipe sizes. System comes standard with electric pivoting facer and microprocessor-controlled heater. With 1,500 psi fusion pressure capability, machine is DataLogger® compatible, uses Centerline Guidance System for equal distribution of force around joint, and includes thrust-bearing-equipped clamp knobs.

Tensile Tester evaluates HDPE butt fusion joints in field.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Sep 21, 2010 Using In-Field Tensile Tester, contractors and pipeliners can accurately test high-density polyethylene butt fusion joints in field. Hand-pump safely tests coupons from pipes sized 2 in. IPS and larger. Tester also incorporates template that is attached to pipe to create coupon through use of drill and reciprocating saw. Coupon is then inserted into hand-pump tensile test unit, which performs destructive test to qualitatively pass or fail joint.

Fusion Machine butt fuses 2 in. IPS to 6 in. DIPS.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Aug 11, 2010 Designed to fuse pipes from 63-180 mm, PitBull® 26 features Centerline Guidance System and hard anodized aluminum wear surfaces for corrosion resistance. Semi-automatic locking cam maintains force during cooling cycle, while thrust-bearing-equipped clamp knobs minimize torque required to clamp and round pipe for fusion operations. Three models include 6 in. DIPS with 100-120 V input voltage, 6 in. DIPS with 220-240 input, and 180 mm unit with 220-240 V input requirement.

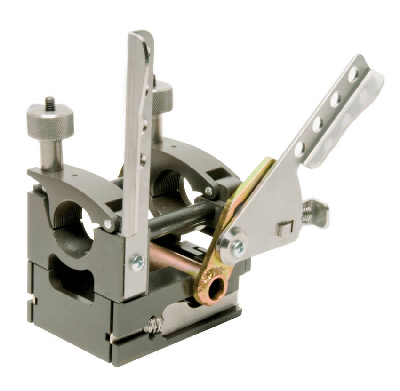

Fusion Machine butt fuses 1/2 in. CTS to 1 in. IPS pipes.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Jul 13, 2010 Designed for butt fusing polyethylene pipes, Model 1LC is available in 2 models, one that requires 100-120 V input and another that operates on 200-240 V. System uses locking cam to maintain necessary force during cooling cycle of fusion process and incorporates 3.8-to-1 mechanical advantage. In addition to Centerline Guidance System that provides equal distribution of force around joint, machine includes serrated jaws and inserts to keep pipe from slipping during fusion.

Socket Fusion Tooling Kits facilitate contract work.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
May 12, 2010 Socket Tooling Kits provides contractors with Multi-Mc(TM) heater, heater sling, heater adapters, ratchet shears, chamfer tools/depth gauges, spare chamfer blade, and cold ring tools. Supplied in specially designed tool box with custom tray to hold components, kits help contractors perform focused work in diverse industries. There are 8 kits available, consisting of equipment geared to specific ranges of fitting sizes and heater voltage requirements.

Pipe Stands feature self-contained, gasoline-powered design.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Mar 05, 2010 Designed to hold pipe in place, MegaMc® Pipe Stands include large 36-65 in. model that accommodates pipes up to 16,000 lb, and smaller 8-36 in. model that handles pipes up to 9,000 lb. Units offer 24 in. of lateral movement, as well as 34 in. of vertical adjustability. Rugged rollers with low-friction pillow block bearings facilitate pipe movement. Even with wide stable base, pipe stands can be stacked for storage or shipping and are moveable with forklift or crane.

Data Logger features wired connection for challenging jobs.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Feb 15, 2010 Able to record and document key parameters of pipe fusion process, Wired DataLogger® consists of handheld computer for recording and navigating data and data-collection unit that records heater temperature and fusion pressure over time. It can be used on fusion procedures that require up to 4,000 psi or job sites that do not use Bluetooth® communications to transmit data. All generated data can be stored, viewed, printed, or transferred to desktop computer for archiving.

Hand Pumps suit constrictive working environments.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Jun 30, 2009 Combined, DynaMc(TM) Hand Pump (HP) models 28/250/412 can fuse HDPE pipes sized from 2 in. IPS to 12 in. DIPS. Each model is offered in 2- or 4-jaw configurations, and latter incorporates full-length guide rod and moveable third jaw. Working in unison with high-velocity cylinders, double-action hand-pump creates accelerated carriage speeds for quick opens/closes during fusion. Electric facer and heater are included, along with Centerline Guidance System and 1,500 psi pressure capability.

Stub End Holder simplifies thermoplastic pipe fusion.

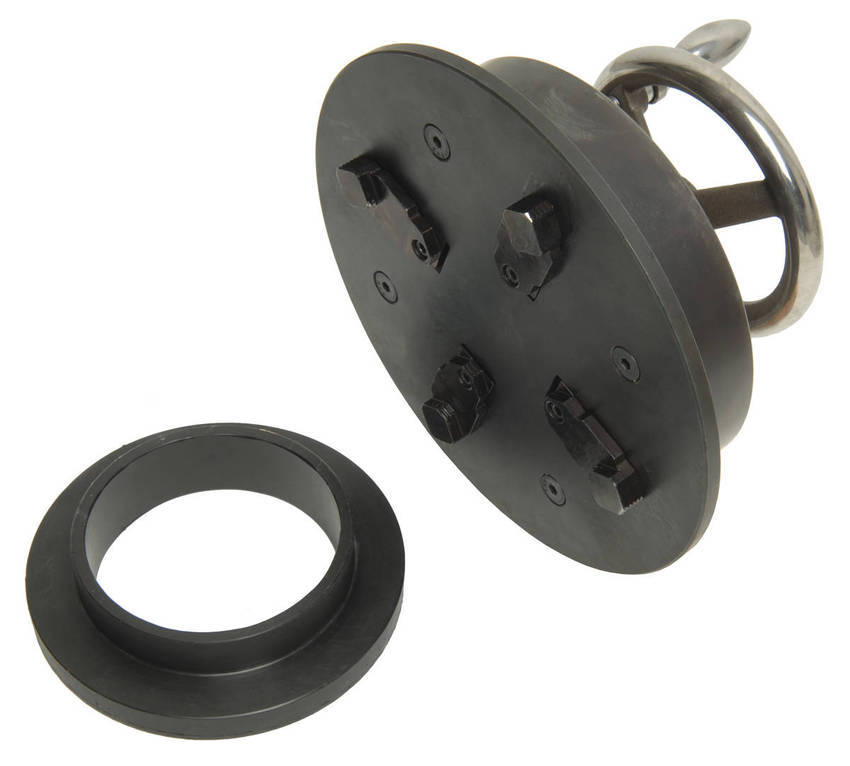

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Jun 30, 2009 Stub End Holder, designed for 8, 12, and 18 in. jaws or inserts, holds stub end fittings in place during fusion process. It features single adjustment point that adjusts all 4 jaws simultaneously, while automatically self-centering to ensure that stub end is held concentric to pipe. Devices feature serrated jaw to optimize gripping ability. Weighing less than 30 lb, they allow operators to clamp fittings with OD between 2.37 and 21.27 in.
