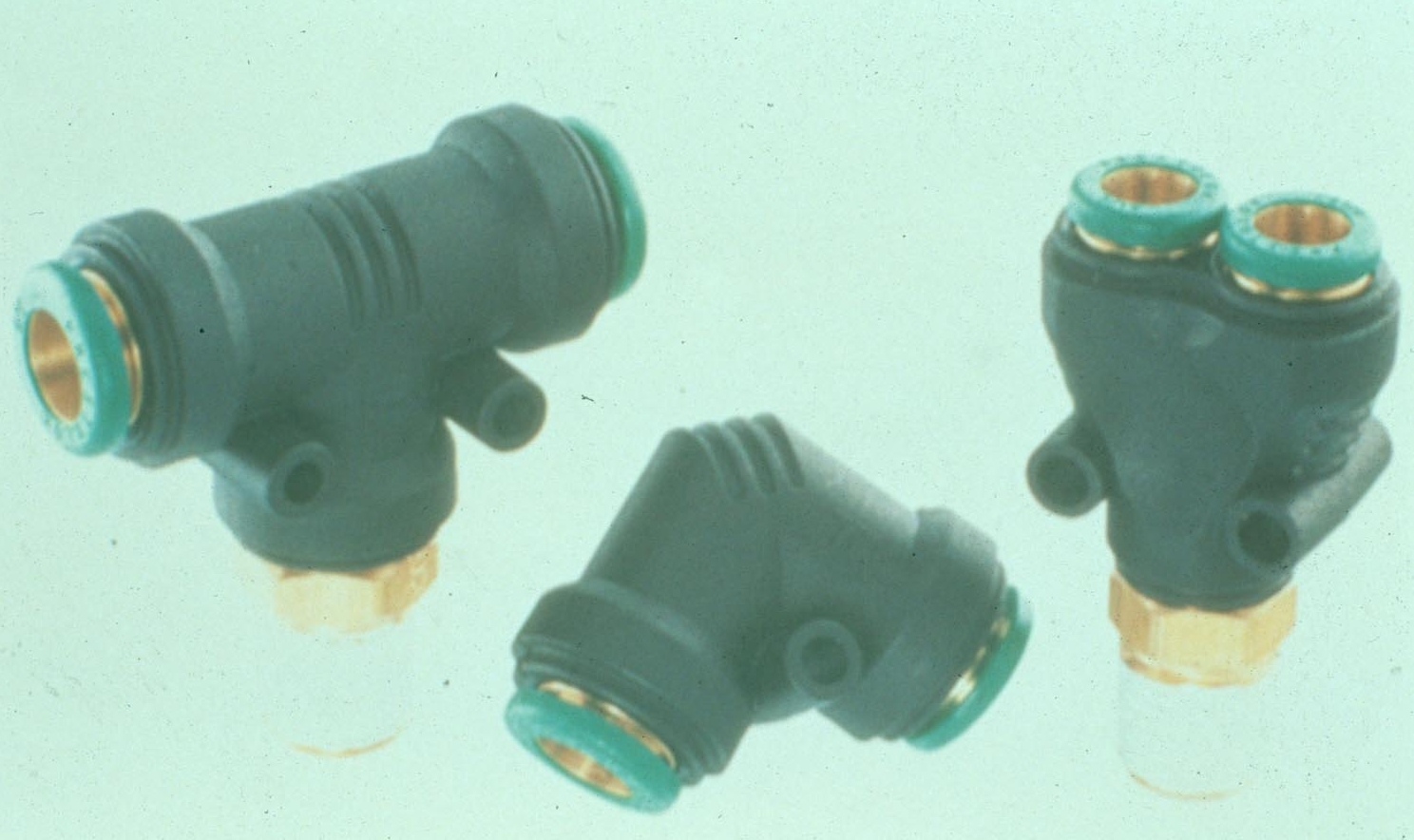

Push-to-Connect Fittings are suited for pneumatic service.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Oct 28, 2005 Global Connect Series features grab ring construction and come in inch and metric sizes. Shape fittings have engineered composite bodies and nickel-plated threads, while straight fittings are all nickel-plated. Products are available in unions, elbows, connectors, tees, and branch tee swivels. Thread types include SAE, metric, BSPT, and BSPP. All fittings handle working pressures to 150 psi and temperatures from 0° to 140°F.

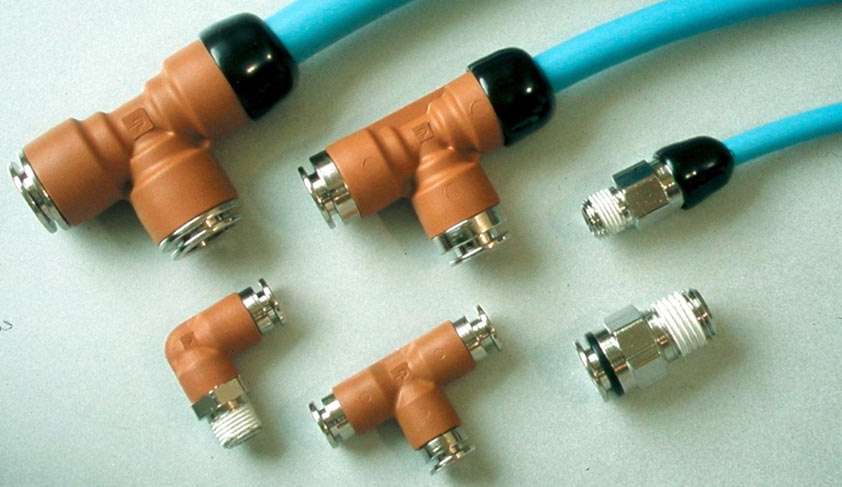

Push-to-Connect System is suited for robotic welders.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Oct 14, 2004 Push-to-connect system consists of MicroWeldâ„¢ fittings and Parflex Microweld tubing designed for air and water supply lines on robotic welding equipment. Silicon-free components have UL94 V-O rating for flame resistance and prevent spatter build-up. No-skive tubing reduces assembly time, while push-to-connect technology facilitates assembly, disassembly, and re-assembly. Fittings are available in various configurations in ¼, 3/8, and ½ in. sizes.

Flow Control Regulators have swivel outlets.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Dec 02, 2003 Meter out versions of Miniature and Compact Flow Control Regulators allow vertical or angle tube exit where access is restricted. Fine adjustment screw and locking nut provide precise, maintainable settings. Mounting directly on air cylinder, compact versions measure 2 in. high at full extension and are offered with fractional inch push-to-connect ends and NPT or UNF threads; Miniature versions measure 1 in. All regulators feature working pressure from 15–145 psig.

Flow Control Regulators withstand severe conditions.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Dec 02, 2003 Flow Control Regulators mount directly on air cylinder and come in meter out versions. Adjustment screw provides precise airflow control, and locking nut resists effects of vibration. Regulators are offered with NPT threads and push-to-connect fittings or NPT threaded ports. All have solid brass body treated for chemical resistance, SS tube gripping ring, and nickel-plated brass adjustment screw. Working pressure is 15–145 psig and working temperature is 30–160°F.

Flow Regulators feature fine adjustment screw.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Nov 25, 2003 In-Line Flow Control Regulators are unidirectional flow control valves with female NPT threads that allow them to be spliced into air cylinder port line. Construction includes glass reinforced nylon composite body, stainless steel tube gripping ring, and adjustment screw components of nickel-plated brass. Available with working pressures from 15–145 psig, units may be installed as meter in or meter out with full flow in both directions.

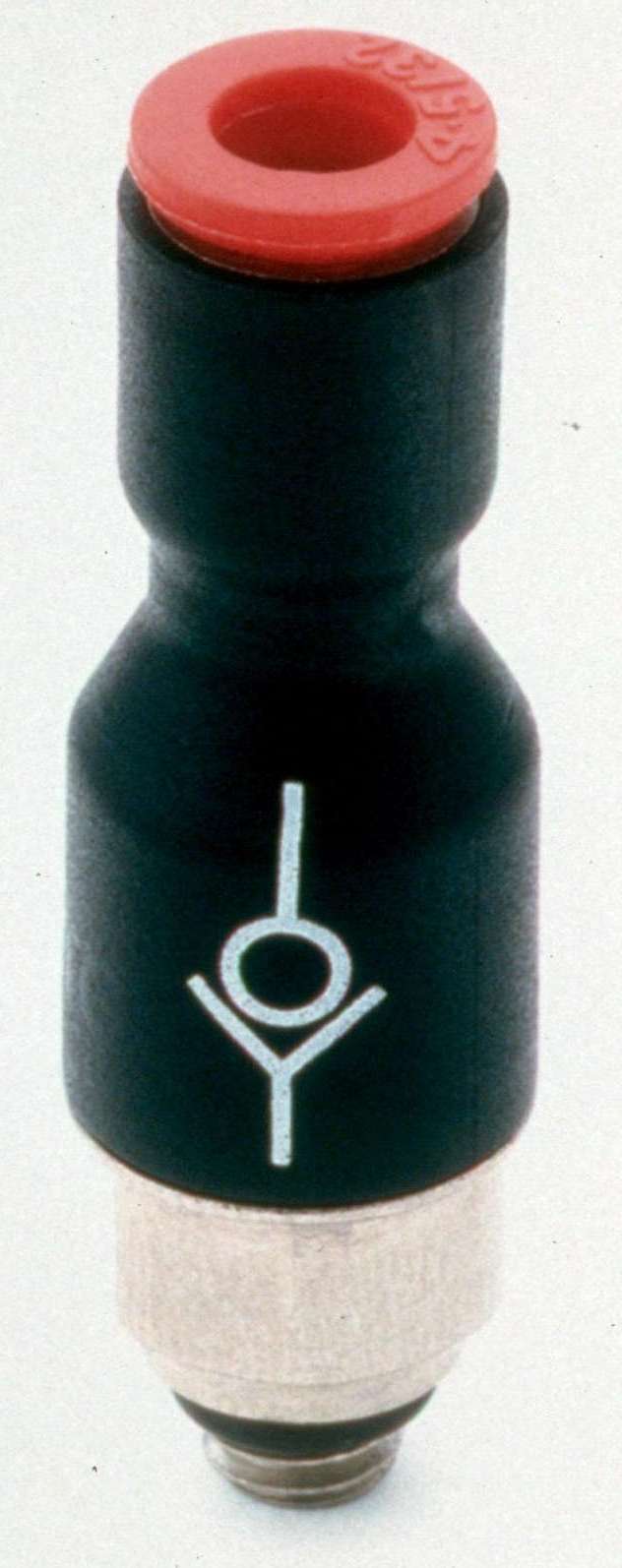

Non-Return Valves allow airflow in only one direction.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Nov 25, 2003 Non-Return Valves are available in tube-to-tube style with fractional inch push-to-connect ends, and threaded end style with fractional inch push-to-connect ends and UNF or NPT threads. All feature glass-reinforced, nylon composite body with nickel-plated brass base. Working pressure is 15–145 psi and working temperature is 30–160°F. Valves are suitable as safety device in compressed air circuits.

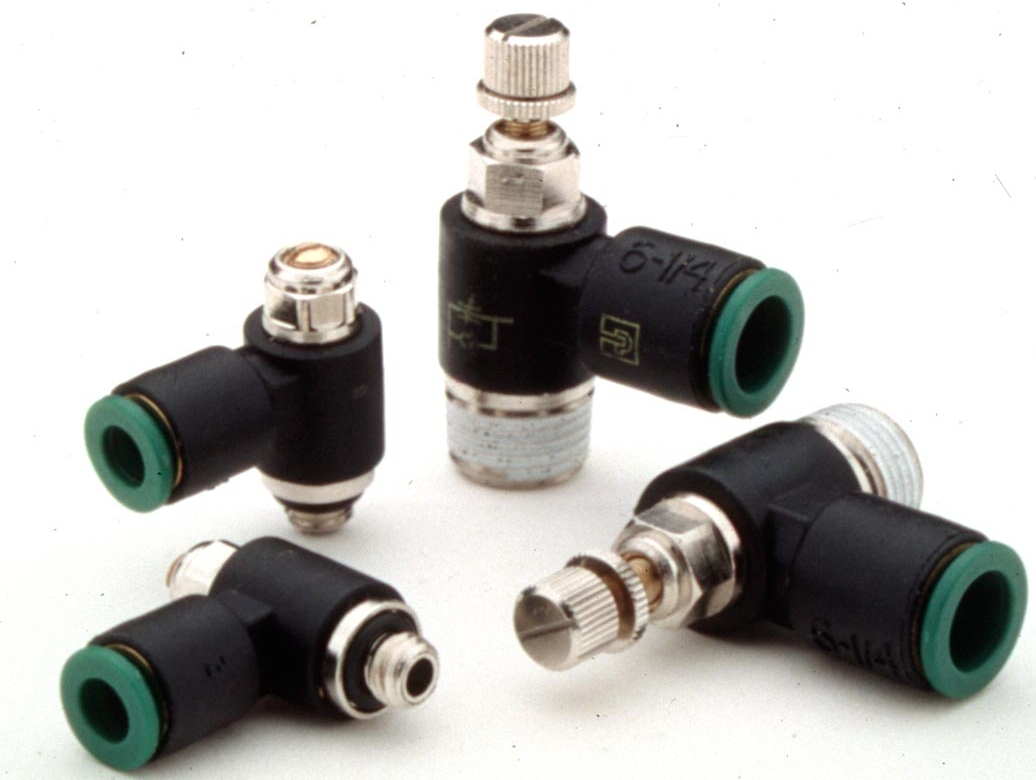

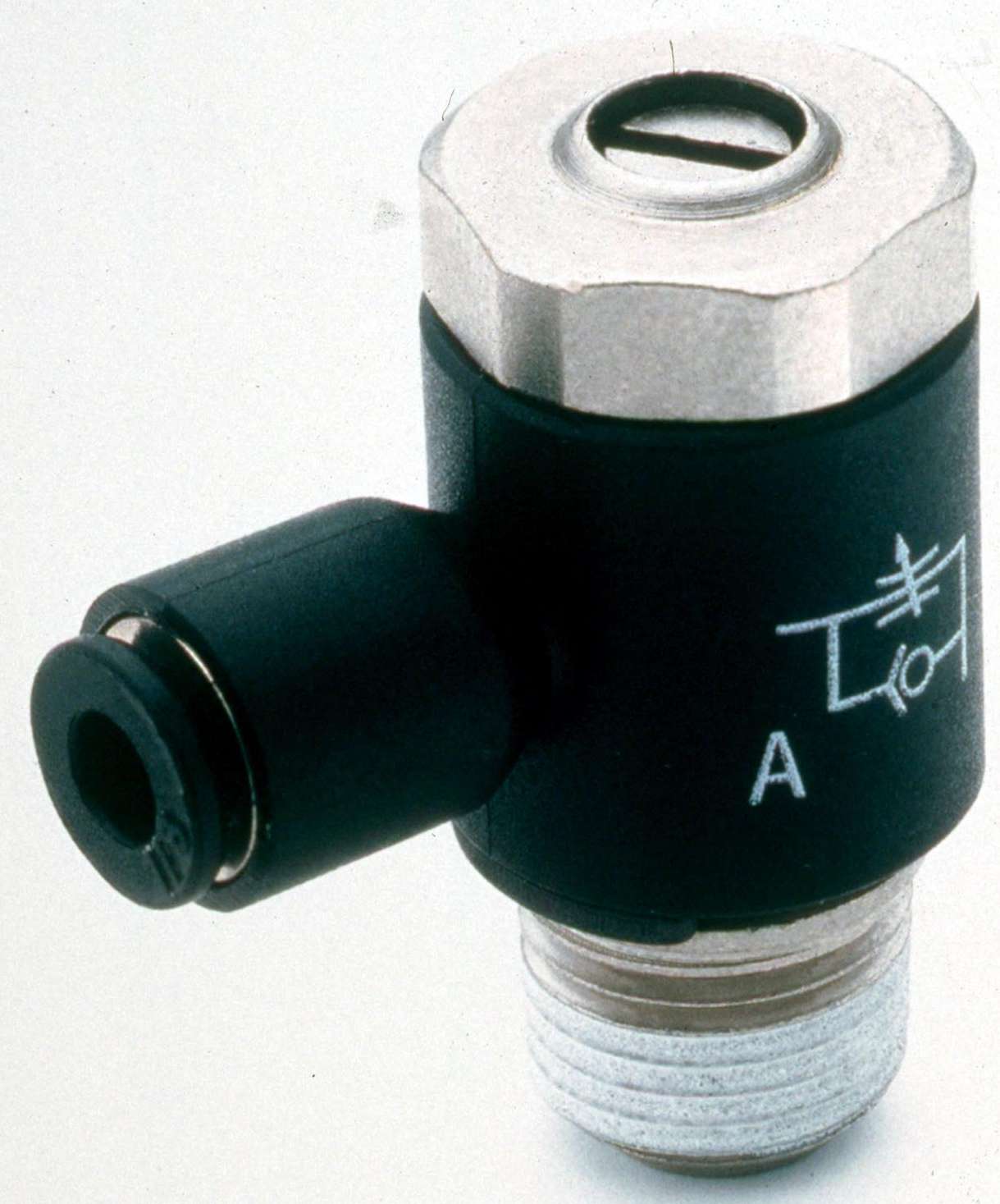

Flow Regulators are offered in two compact styles.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Nov 25, 2003 Flow Control Regulators are available with raised fine adjustment screw and locking nut or recessed, knobless adjustment screw. Both are offered in meter out versions to provide precise airflow control and speed regulation of pneumatic cylinder. Units are available in various sizes for fractional inch tube to NPT threads for mounting directly to cylinder. Working pressure ranges from 15–145 psig, and body material is glass reinforced nylon composite.

Diversion Valve provides fluid return or spillback.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 27, 2002 Series 600 6-port valve is designed for applications where no shutoff is needed. Three-position handle alternately routes fluid to ports on one side or the other. Detent mechanism assists in positioning accuracy. Valve features 1/2 in. pipe thread top ports and 3/8 in. pipe thread bottom ports. It has forged brass body, PTFE seats and seals, and Viton O-rings. Working pressure is up to 150 psi at 250°F and vacuum to 29 in. Hg.

Miniature Flow Control suits micro-pneumatic applications.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Banjo-style Miniature Flow Control can be mounted directly on small bore cylinders. Intake air flows in freely and exhaust air is metered out through adjustment screw to regulate speed of cylinder. Unidirectional valve has nickel-plated brass stem and threads, 25% glass filled nylon body, and expanded internal O-ring. It is available with 10-32 UNF threads and 1/8 and 1/4 in. NPT threads for 5/32 and 1/4 in. OD tubing.

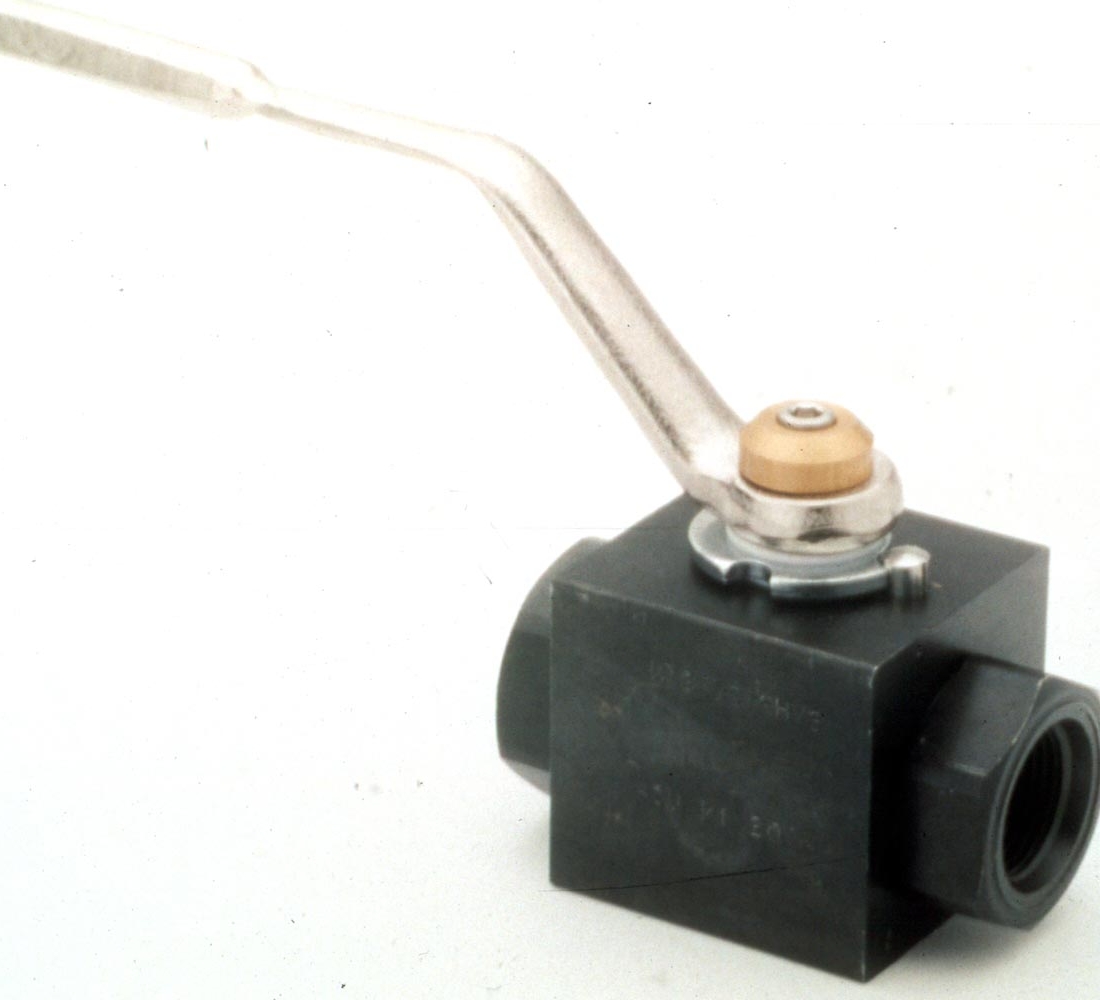

Ball Valves are rated to 6000 psi.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Series 500HP/506HP Carbon Steel Ball Valves are offered in sizes from ¼ through 2 in. with working temperature of 0 to 150°F. They come in round or square bodies with hex shaped ports. Internal design features Nitrile O-rings and Delrinâ„¢ seats with Molybdenum disulphide. External phosphate coating ensures corrosion resistance. All are fully ported for unrestricted bore and minimum flow restriction. NPT or SAE straight thread Female/Female port configurations are available.

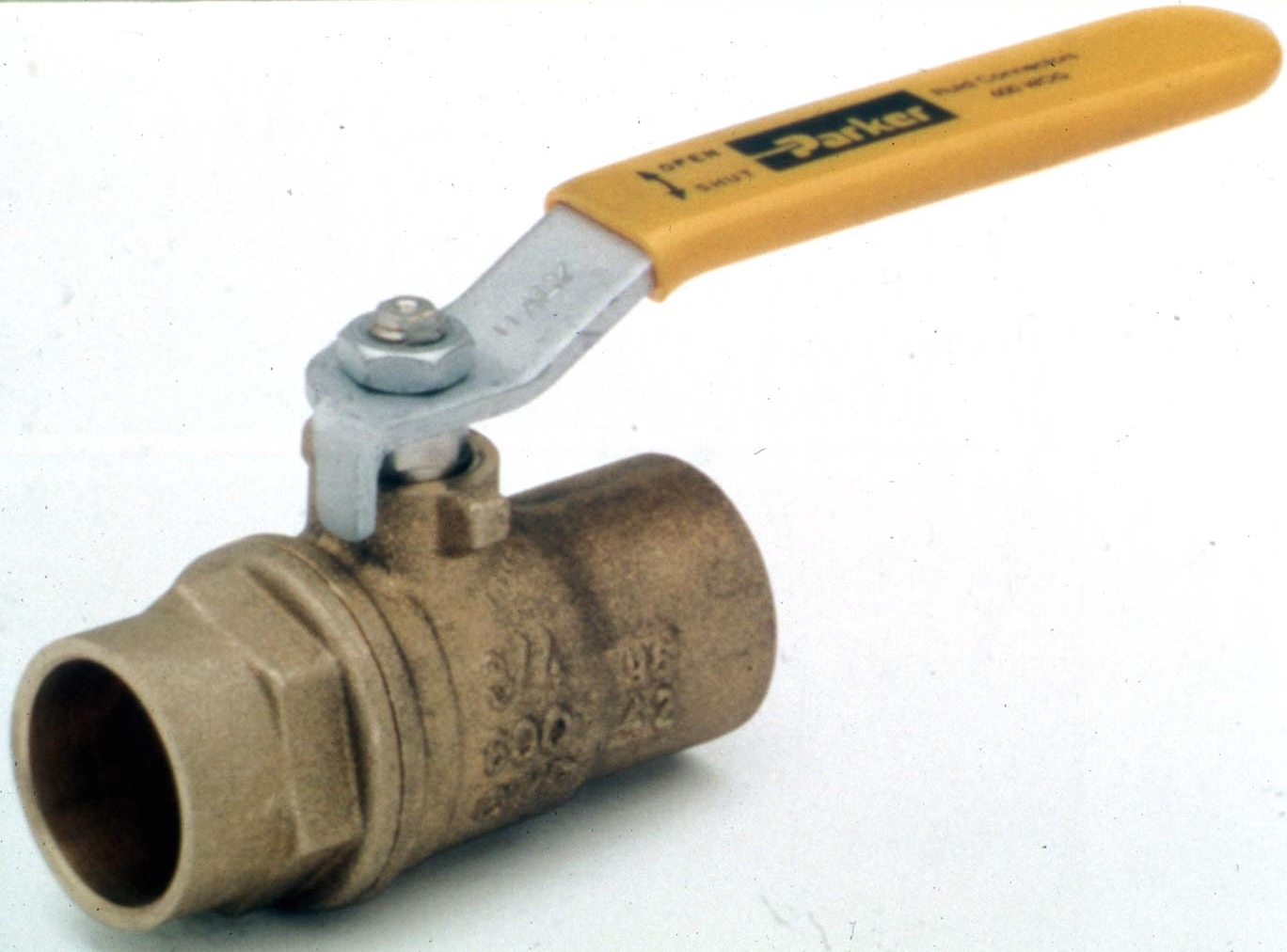

Ball Valves are offered in 1/2 through 2 in. sizes.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Series 509 Solder End Ball Valves are designed to be soft soldered into ASTM B88 copper lines without disassembly or disturbing seats and seals. Working temperature is 100 to 250°F with maximum working pressure up to 400 psi, depending on valve size and joining material (either 50-50 tin-lead solder or 95-5 tin-antimony solder). All valves have forged brass body, PTFE seats and seals, blow-out proof stem, chrome plated brass ball, and ¼ turn shutoff.

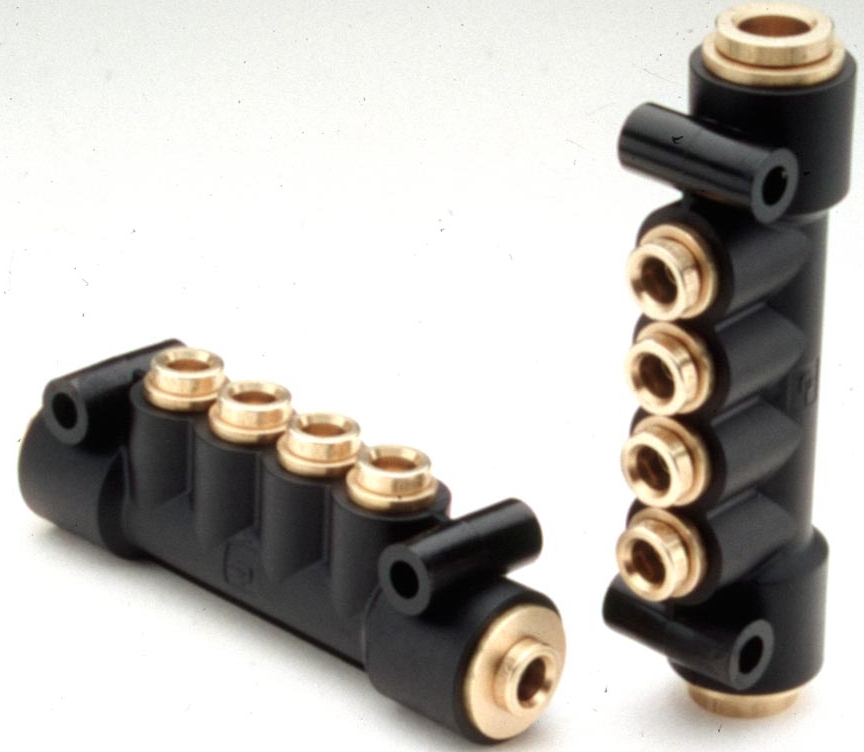

Manifolds come in brass and engineered polymer.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Engineered Polymer Manifold has 3/8 in. tube inlet ports and 1/4 in. tube outlet ports. Working pressure is from 27 in. Hg vacuum to 250 psi at -40 to +200°F. Brass Manifold comes with 1/8 to 3/8 in. ports, which are located on top and along side for convenient assembly. It is machined from CA360 brass and has working temperature from -65 to +250°F at 1000 psi maximum. Custom manifolds can be fabricated to meet virtually and design requirement.

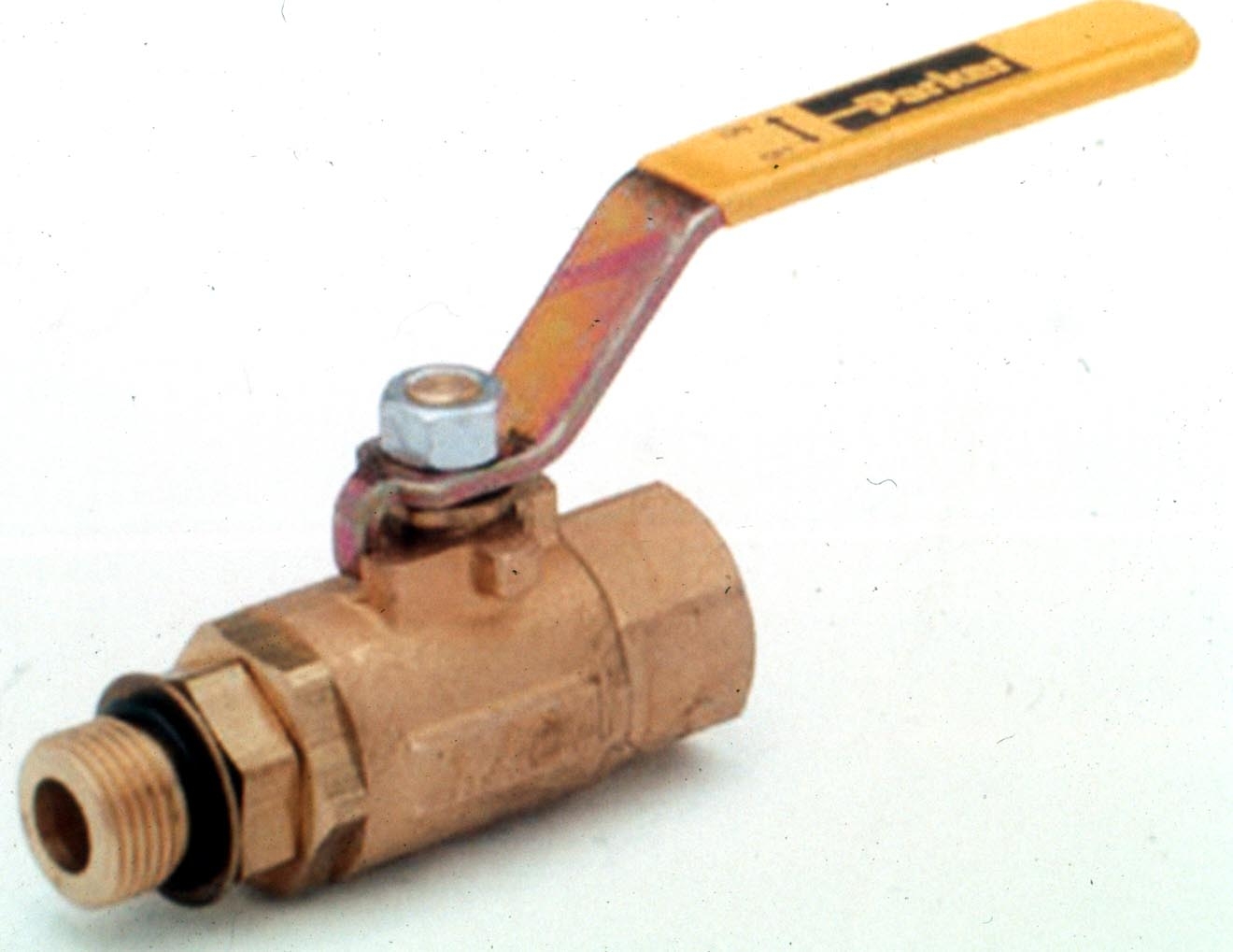

Straight-Thread Ball Valve handles high pressure.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Sep 06, 2002 Leak-free, reusable, brass ball valve is available in sizes from 1/4 to 2 in. It handles working pressures of 600 psi W.O.G., or 150 psi in on-off saturated steam service, in temperature range from 0 to 250°F. Applications include construction equipment, chemical processing, plastic and rubber products manufacturing, pumps, and specialized industrial machinery.

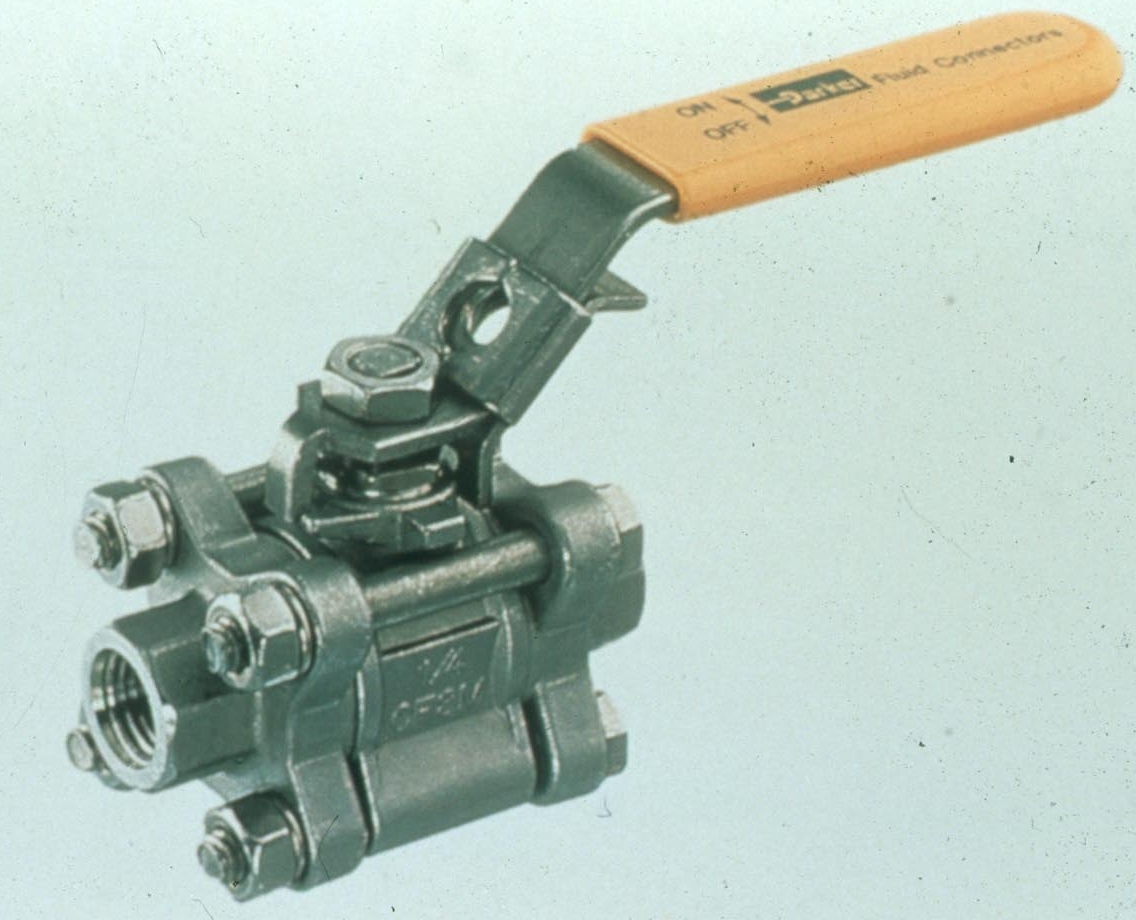

Ball Valve provides easy access.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 30, 2002 Three-Piece Swing-Out Ball Valve provides direct access to internal seals without disturbing pipe alignment. Seal replacement is performed by removing one body bolt, loosening other three, and swinging out center section. Valve body is made from CF-8M stainless steel and is available in female pipe sizes from 1/4 through 2 in. Working pressure is 1000 psi and temperature range is 0 to 400 deg F.

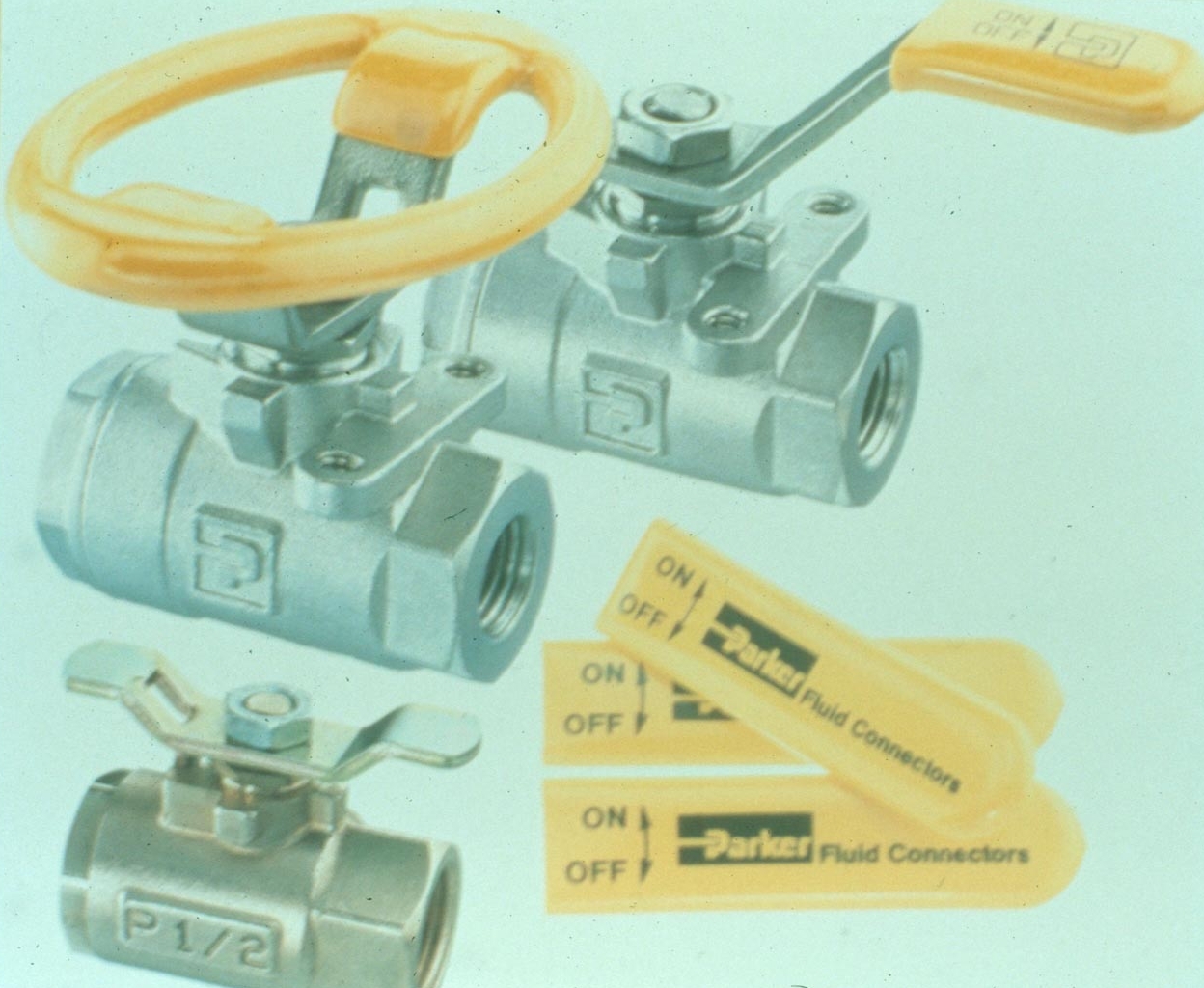

Stainless Steel Ball Valves offer corrosion resistance.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 29, 2002 Series 500 is available in female pipe end configuration with standard 1/4 turn lever handle, Slide-Lock locking handle, short and oval handles, panel mount, and with 360 deg welds on retainer nuts. Other configurations include male-female pipe end, 1/2 in. 90 deg ball valve, and sweat-end ball valves for use on tubing. All valves feature full port design for unrestricted flow, with reinforced Teflon® seats and seals, and blow-out proof stems.

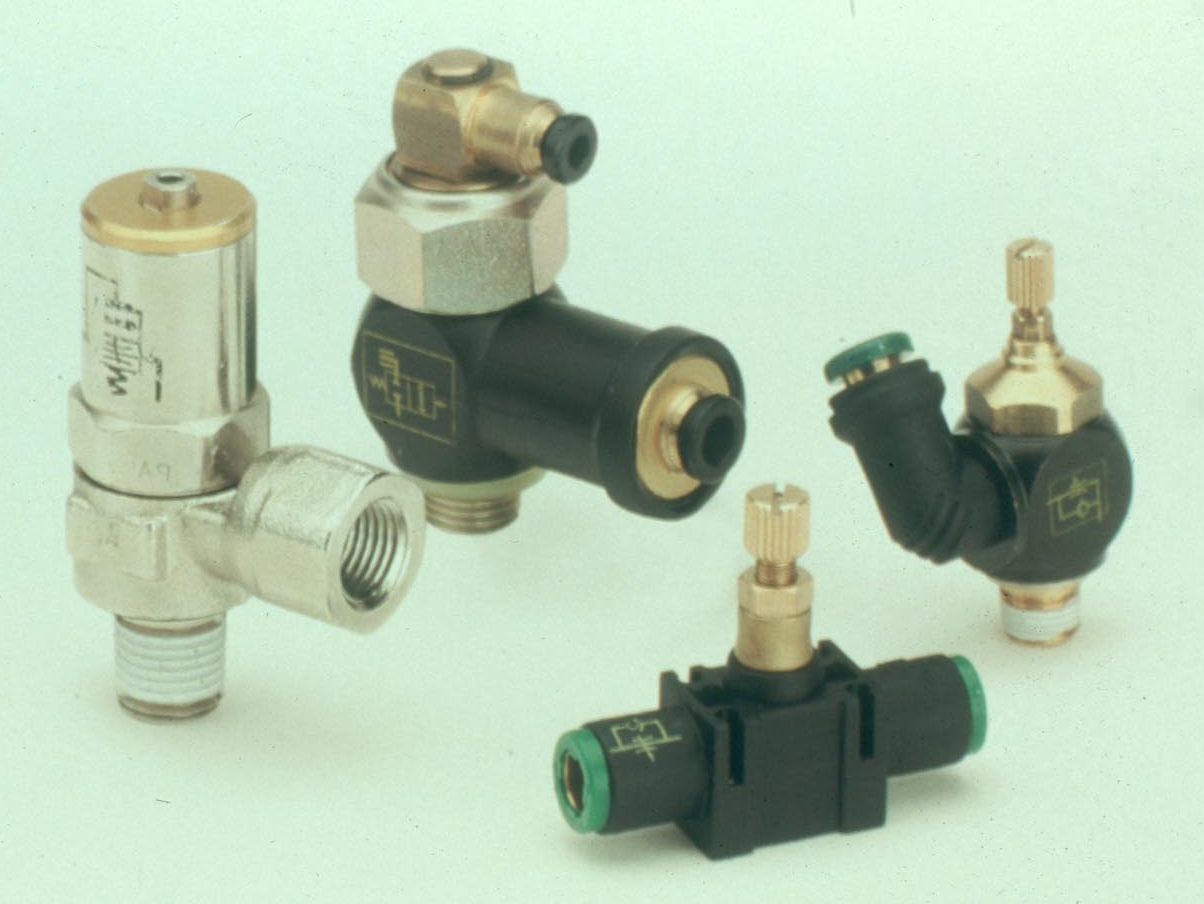

Pneumatic Fittings simplify motion control.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 29, 2002 Blocking fittings mount on air cylinder port and use independent pilot air signal to block movement of piston rod at selected positions. Slow Start fittings control speed at which cylinders recover position. Flow Control Regulators are unidirectional and adjust speed of cylinder rod by controlling inlet or outlet flow. Inline Flow Controls mount anywhere and can be ganged together. Right Angle Flow Controls are for direct mounting on cylinders.

Fittings have working pressure up to 300 psi.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 26, 2002 Prestolok(R) 1-piece brass fittings accept polyethylene, nylon, or soft metal tubing. Elastic metal grab ring grips tubing securely, and nitrile O-ring forms positive seal. Once in fitting, tubing can rotate freely, even under pressure. Swivels on male pipe threaded shapes permit precise positioning and installation in tight spaces.

Ball Valves are panel mounted.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 26, 2002 P506 Series is made from CF-8M stainless steel and is available in 1/4, 3/8, and 1/2 in. sizes. All have working pressure of 2000 psi and temperature range from -50 to +450 deg F. Valves mount to surface such as control panel and can be used with pneumatic actuator in remote location. Applications include off-shore drilling platforms, machine tools, packaging and paper making equipment, environmental controls, and general mechanical contracting.

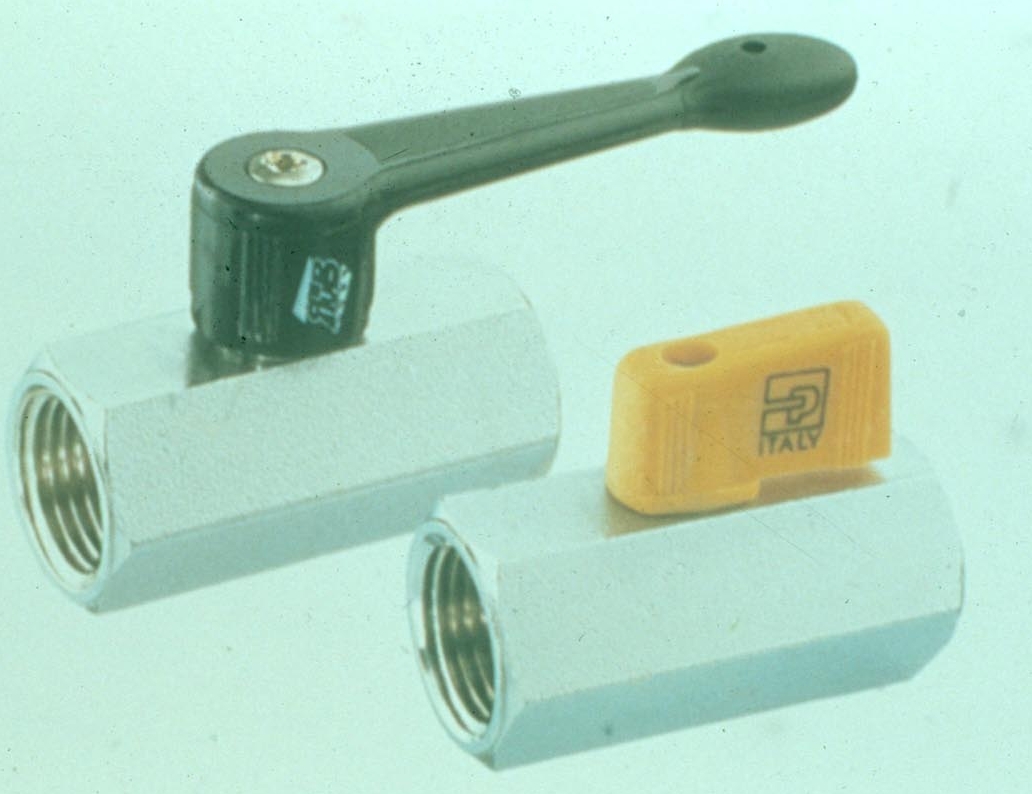

Mini Ball Valves for use in confined spaces.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 26, 2002 Brass mini ball valves are rated at 300 psi and have working temperature range of 0 to 250 deg F. Extruded brass body is nickel plated with 1/4 turn handle for positive full shutoff. Valves have blowout proof stem, hard chrome plate ball, and Teflon® seats. They are available in 1/4, 3/8, and 1/2 in. female/female sizes.

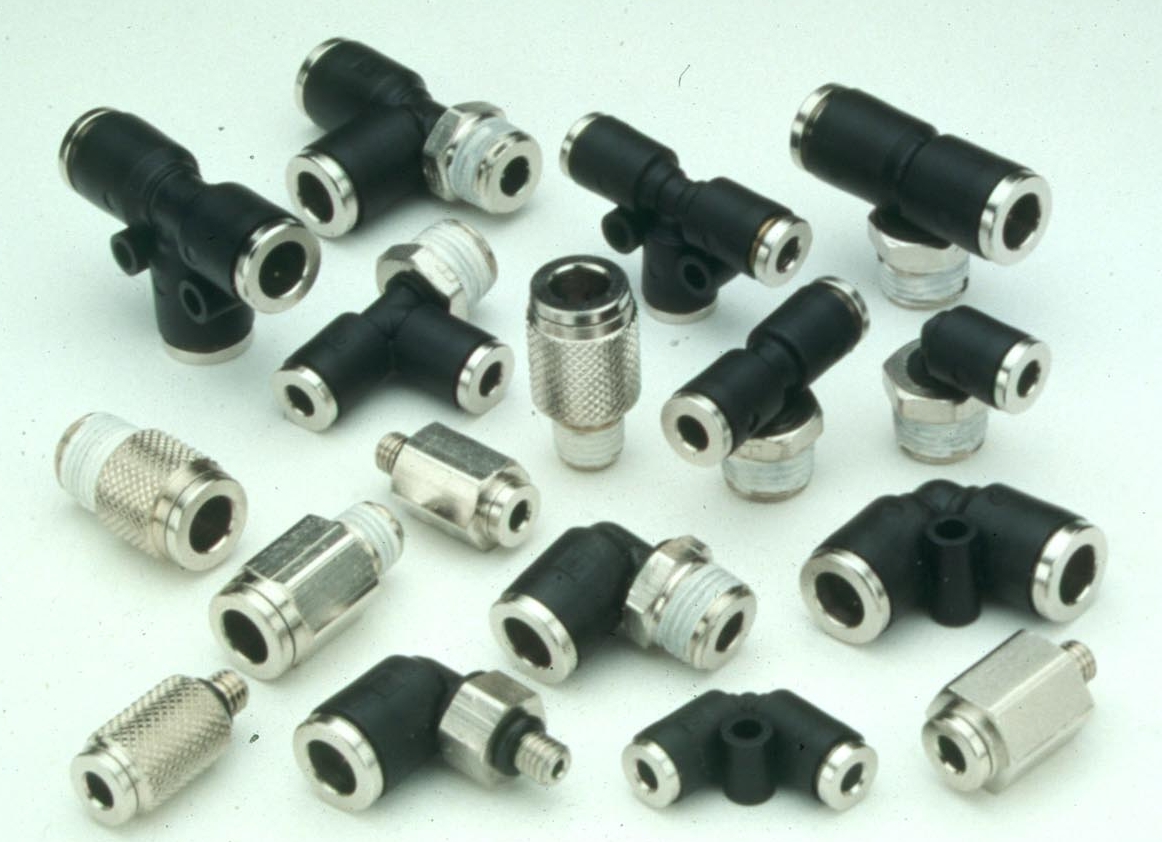

Fittings provide positive grip on all tubing.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Apr 26, 2002 Microlok(TM) Miniature Push-to-Connect fittings are available in male hex and round body styles in range of straight and shaped configurations. Straight fittings have nickel-plated forged brass body. Shaped fittings feature composite body with nickel-plated components. Microlok(TM) fittings are available with 1/16, 1/8, 10-32, and 1/4 in. pipe thread ends, and accept 1/8, 5/32, and 1/4 in. tubing.
