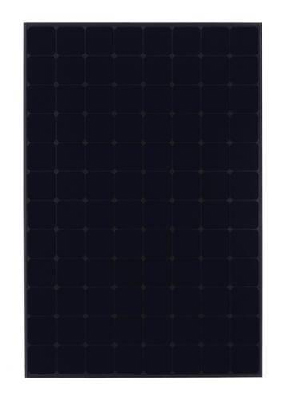

Solar Panels offer world-record efficiencies of 21.5%.

SunPower Corp.    San Jose, CA 95134
Apr 12, 2013 Available in 250 W small format and 345 W standard size format for residential market, SunPower X-Series is made with company's third-generation Maxeon® solar cells, which are built on solid copper foundation, making them virtually impervious to corrosion and cracking that typically degrade conventional panels. Signature™ Black design, consisting of jet-black glass with black frame and all-black contact solar cells, allows panels to blend seamlessly into rooftop.

Enclosed Power Supplies target LED moving sign applications.

SunPower Corp.    San Jose, CA 95134
Apr 11, 2012 Operating from universal 90-264 Vac input, HDP-190/240 Series offers dual 2.8 and 3.8 V outputs that can directly drive 2.8/3.8 V RGB LED chips. Respective ratings for HDP-190/240 are 192 and 241 W, with delivery of up to 40 and 50 A at 3.8 V and up to 22 and 27.5 A at 2.8 V. Both feature active PFC and output voltage adjustment ranges of 3.6-4 V on 3.8 V output and 2.5-3 V on 2.8 V output. AC/DC circuit design and non-isolated DC/DC buck topology allow efficiencies up to 86% (HDP-240).

AC Solar Panels incorporate AC microinverters.

SunPower Corp.    San Jose, CA 95134
Oct 31, 2011 Integrated with SolarBridge Pantheon(TM) microinverter, E18 and E19 all-black solar panels are respectively rated to 225 and 240 W AC. Generated power is optimized at individual solar panel level, maximizing overall energy yield, and monitored to ensure maximum production. Able to be installed on most homes, even those with complex rooftops or shading from trees, chimneys, and other obstructions, panels feature 22.4% efficient Maxeon(TM) cell technology.

Solar PV Tracking System improves LCOE for utility-scale plants.

SunPower Corp.    San Jose, CA 95134
Oct 31, 2011 Used in regions with high solar irradiance through direct sunlight, C7 Tracker concentrates sun's power 7X to achieve lowest possible levelized cost of electricity (LCOE) for solar power plants. Solution combines single-axis tracking technology with parabolic mirror rows, reflecting light onto 22.8% efficient SunPower Maxeon(TM) solar cells. While modular solar cell receivers allow performance upgrades, Tracker Monitoring and Control System provides wireless control of power plant.

Solar Tracker is suited for power plant applications.

SunPower Corp.    San Jose, CA 95134
Nov 02, 2009 Incorporating 128-cell, 400 W solar panels for maximum energy output, T20 Tracker generates up to 3.7 kW of power and, by following the sun, delivers up to 30% more energy than fixed tilt systems of same capacity. Single-axis, ground-mounted tracker has mechanical structure that lends to wind resistance and employs minimal moving parts. Included PV tracker control system offers real-time tracker status updates, remote monitoring/control, and energy production optimization algorithms.

Roof Tile produces maximized solar energy.

SunPower Corp.    San Jose, CA 95134
Jun 09, 2009 SunPower T5 Solar Roof Tile combines 96-cell SunPower 315 Solar Panels with frame and mounting system manufactured from glass-filled polymer that is nonreactive, eliminating need for electrical grounding of array. Tiles interlock for wind resistance and to secure installation. System design is adaptable to any flat or low-slope rooftop and features smooth-edged, lightweight polymer material that protects roof.

Solar Panel delivers conversion efficiency of 19.3%.

SunPower Corp.    San Jose, CA 95134
Jun 04, 2009 Designed for installation in residential and commercial applications, SunPower® 315 Solar Panel features anti-reflective coated glass that optimizes capture of diffuse off-angle light and subsequently maximizes energy generation. This 96-cell, 315 W panel incorporates all-back contact solar cells to maximize energy production, resulting in fewer panels per rooftop while also offering aesthetically pleasing appearance.

Solar Power System features single-axis design.

SunPower Corp.    San Jose, CA 95134
Jul 06, 2007 Utilizing solar panels tilted at up to 25° to track sun throughout day, pre-assembled SunPower® Tracker minimizes land usage. Backtracking technology allows panels to change direction as necessary, avoiding shadows and preventing panel sun spots. With each module generating up to 2.5 kW of power, system can scale from 50 kW installations to large, multi-megawatt solar power plants.

Inverters/Monitors are compatible with SunPower solar panels.

SunPower Corp.    San Jose, CA 95134
Oct 10, 2006 SPRx Series Inverters provide maximum ac power output from 3,300-4,000 W, while SPRx Series Inverter Monitors track efficiency and connect to inverters using CAT 5 Ethernet cable. Graphical backlit LCD screen can be used to monitor single or multi-inverter photovoltaic system from one indoor location.
