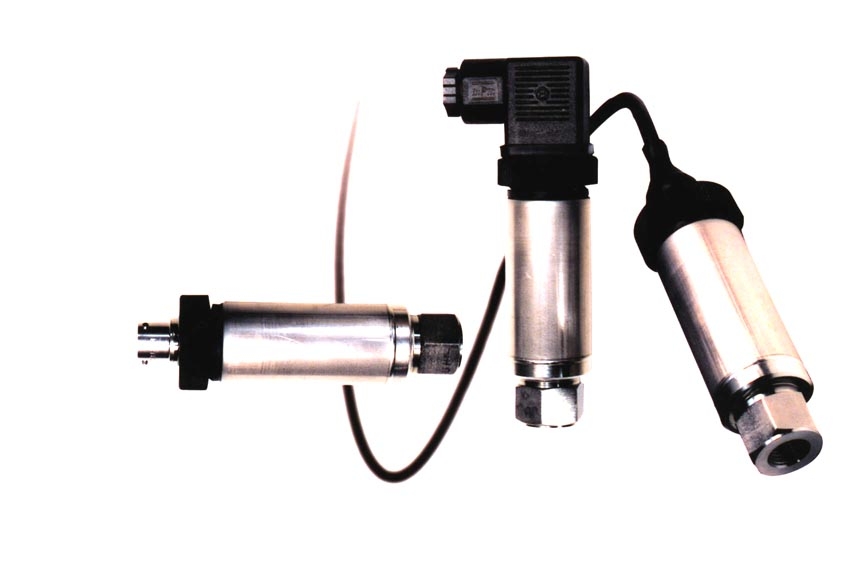

Pressure Sensors suit high-volume OEM applications.

Druck, Inc.    New Fairfield, CT 06812
Mar 18, 2003 Series 1500 Sensors yield inherently accurate pressure measurements up to 2000 psi via piezoresistive silicon technology and ASIC compensation. Static accuracy is better than ±0.25% FS BSL including effects of non-linearity, hysteresis, and repeatability. Thermal accuracy is within ±1% FS over 14 to 122°F, and ambient operating temperature range is -40 to 212°F. Process media can be any fluid/gas compatible with 316L Stainless/Hastelloy C276.

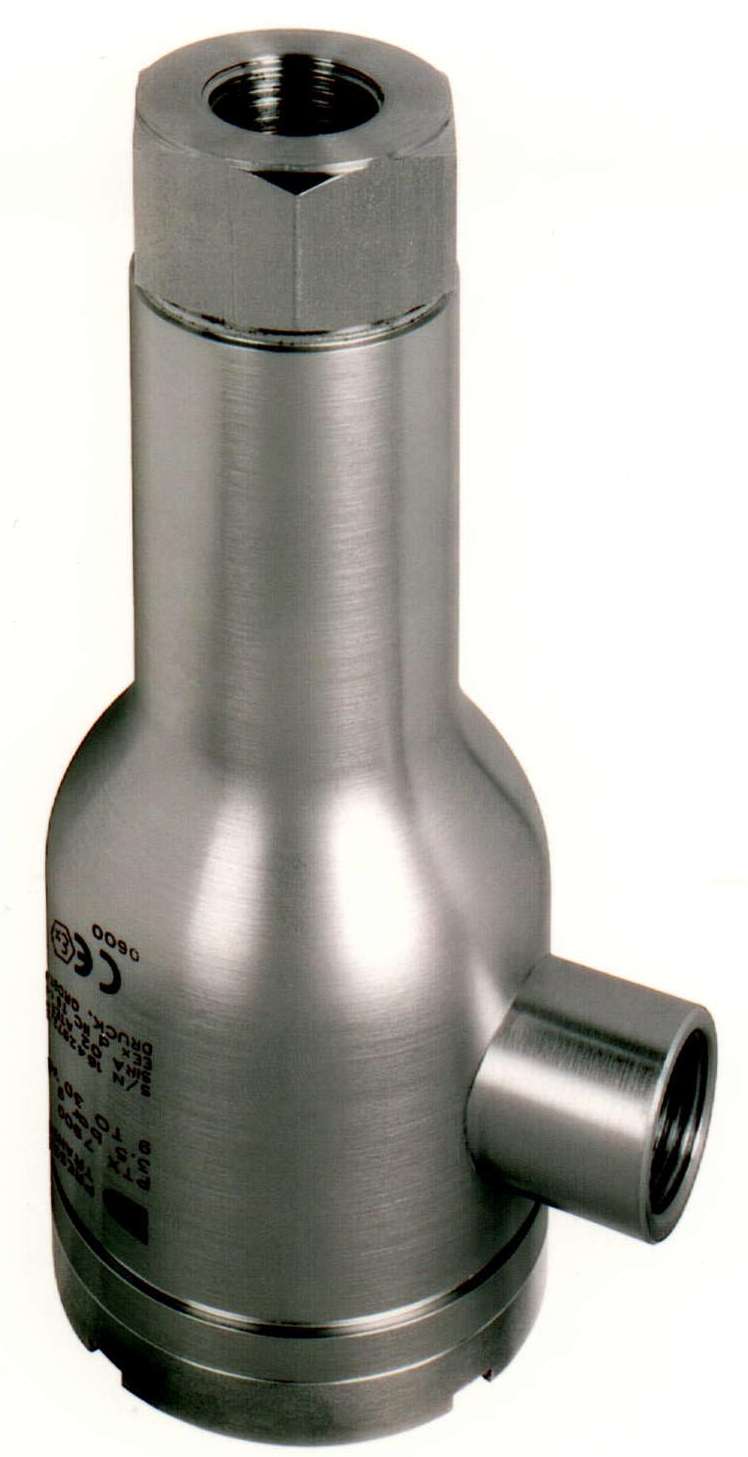

Pressure Transmitter suits long-term, subsea use.

Druck, Inc.    New Fairfield, CT 06812
Jan 30, 2003 With all welded construction, PTX 300 Series is fully submersible with ambient pressure rating to 4,000 psi. Product utilizes micromachined piezo resistive silicon pressure measurement technology and is packaged to suit specific requirements of subsea hydraulic control systems. Series, offered with pressure ranges from 1,000–15,000 psi sealed gauge or absolute, offers better than 0.1% accuracy.

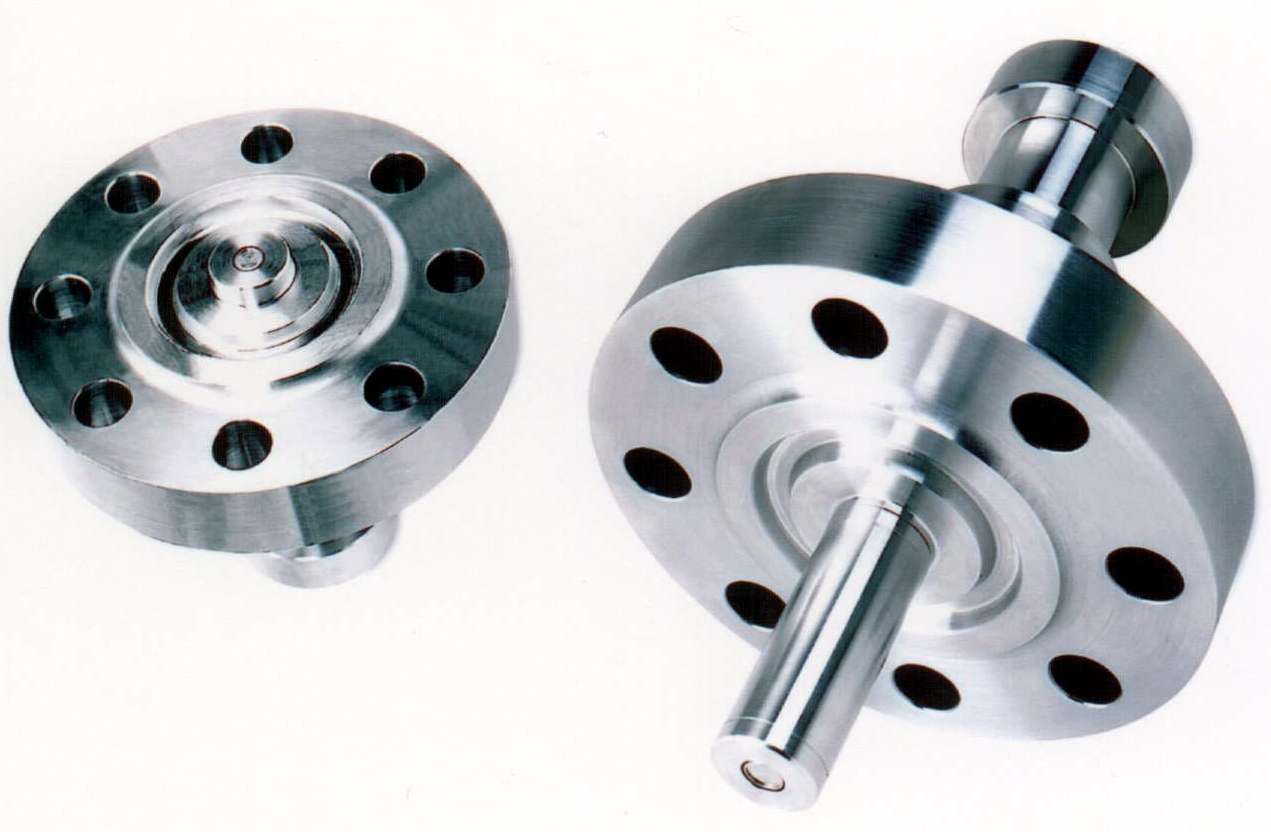

Transmitter suits long term use in subsea locations.

Druck, Inc.    New Fairfield, CT 06812
Jan 23, 2003 Series PTX 400 enables temperature/pressure measurements to be made directly on subsea wellheads and production manifolds by utilizing micromachined piezo resistive silicon pressure measuring technology. Able to handle external pressure to 9,500 ftH₂O, pressure ranges are available to 10,000 psi with proof pressure at 1.5 x FS range and secondary pressure containment in excess of 15,000 psi. Temperature measurement range is from -40 to 150°C.

Pressure Transmitter has modular design.

Druck, Inc.    New Fairfield, CT 06812
Jan 14, 2003 Series PTX 7900, for process applications, incorporates ASIC technology and surface-mounted electronics. User-adjustable zero/span controls are accessible via removable screwed-end cap. Series incorporates standardized core, which is available in operating pressures from 1–10,000 psi sealed gauge or absolute, with proportional 2-wire, 4-20 mA output. Accuracy is ±0.25% FS for combined non-linearity, hysteresis, and repeatability.

Pressure Transducers offer ranges from 5-1,000 psi.

Druck, Inc.    New Fairfield, CT 06812
Jan 10, 2003 Series DPS 4000 features digital CANbus serial communications interface. Fully temperature corrected pressure readings are output as digital word at up to 100 Hz in any one of 24 engineering units, requiring no user system set-up or calibration. Integral digital electronics provide 0.2% reading for values above 50% FS and 0.1% FS for readings below 50% FS. Transducers are fully input/output isolated and suitable for automotive test stands.

Pressure Transducer provides analog and digital output.

Druck, Inc.    New Fairfield, CT 06812
Dec 26, 2002 Model PDCR 3500, 1 in. dia, fluid isolated, analog output device achieves total accuracy of better than ±0.1% FS over -65 to +250°F. Internal digital electronics correct for repeatable errors without affecting analog bandwidth. Due to internal microprocessor electronics, unit can also give digital pressure output in engineering units via RS485, which is also used for re-calibration, serial number retrieval, and diagnostics.

Pneumatic Calibrators have built-in pressure source.

Druck, Inc.    New Fairfield, CT 06812
Dec 12, 2002 DPI 320/325 Series high pressure portable calibrators offer bottle source for dry pneumatic calibrations to 3000 psi. Combined with electrical source/measure and PC interface, instruments provide calibrations with 0.025% FS accuracy. Offerings include 122 in.³ capacity gas cylinder, precision regulator, and fine volume adjuster. Pressure ranges vary from 0-500 psi thru 0-3000 psi. DPI 325 units support real-time error analysis with full documenting capability.

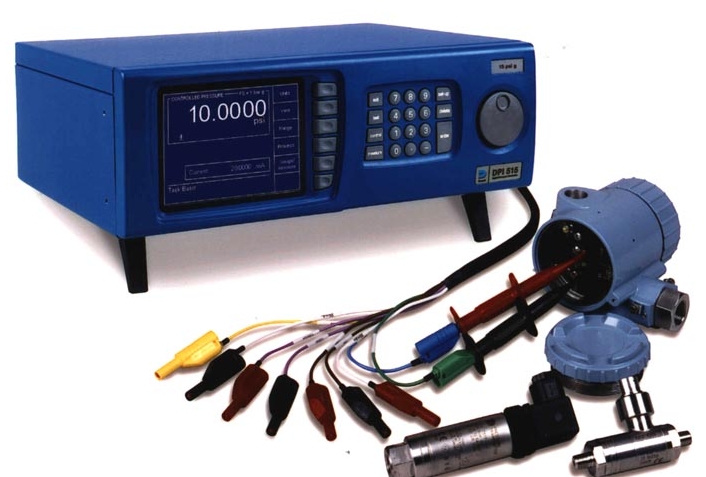

Pressure Calibration System offers sensor-calibration module.

Druck, Inc.    New Fairfield, CT 06812
Jul 26, 2002 Sensor Calibration Module (SCM) enables users to source low voltage for transducer or transmitter excitation and read back mV, V, or mA output from sensor. Supplied pressure setpoint and electrical output are displayed on screen simultaneously. SCM can be retrofitted into company's DPI 515 calibration system and is accessed via 15-way, D-type connector. Multi-way connecting cable, terminated with 4 mm female connectors, is supplied along with probes.

Liquid Level Meter offers accuracy to ±0.06%.

Druck, Inc.    New Fairfield, CT 06812
Jul 24, 2002 Suitable for industrial level measurements in liquid control applications, PDCR/PTX 1830 Series offers FS operating ranges from 1 to 900 psi with choice of electrical format. Its 4-wire transducer variant, PDCR 1830, offers FS scale signal of up to 100 mV, while transmitter variant, PTX 1830, is a standard 2-wire, 4 to 20 mA device. Its integral lightning surge arrestor protects against raised ground potentials.

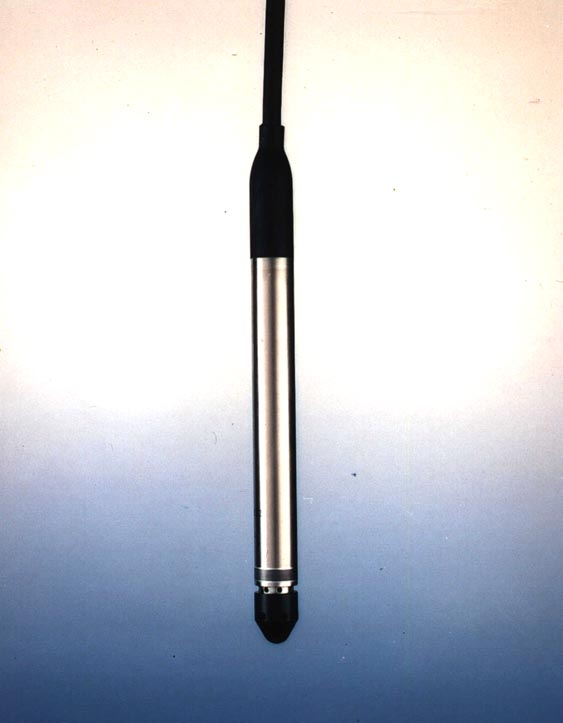

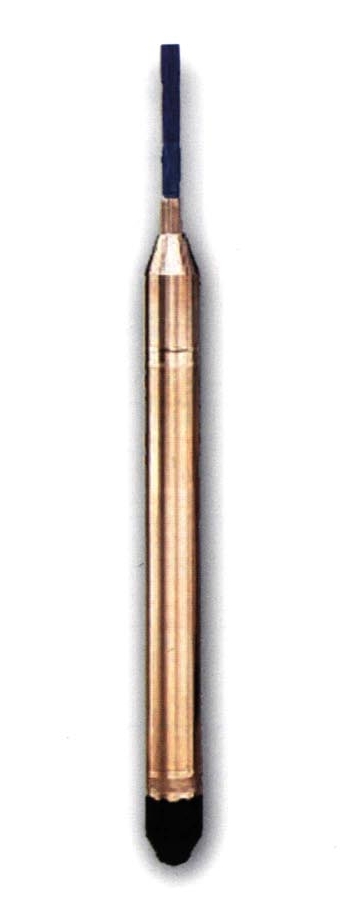

Pressure Transmitters provide depth/level measurements.

Druck, Inc.    New Fairfield, CT 06812
Jul 10, 2002 PTX 1835 and 1235 submersible pressure transmitters are designed for use in groundwater, well water, canals, rivers, and other applications where possibility exists for lightning damage. Transmitters are constructed of all welded titanium and protected to IEC 61000-4-5, Level 4.

Pressure Transmitters provide depth/level measurements.

Druck, Inc.    New Fairfield, CT 06812
Jul 01, 2002 PTX 1885 and 1285 submersible transmitters are designed for depth/level measurements in groundwater remediation and chemical tanks. They are constructed of all-welded titanium with tefzel cable attached to transmitter body, providing chemical resistant, waterproof assembly. Internal lightning protection to IEC 61000-4-5, Level 4 is incorporated as means of protecting against possible water lightning strike.

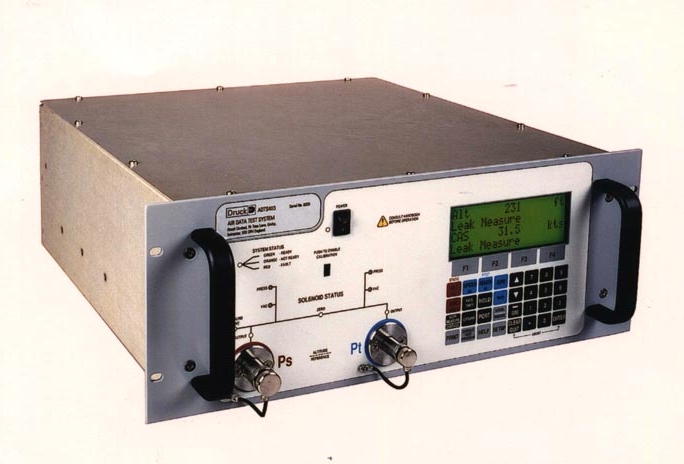

Pressure Control System calibrates aircraft instrumentation.

Druck, Inc.    New Fairfield, CT 06812
Jun 26, 2002 Rack mounted ADTS 403 Air Data Test System is RVSM compliant and compatible with ATE systems used in aerospace industry. Twin channel Ps and Pt pressure control system can be programmed for calibration and verification of aircraft pitot-statics for fixed or rotary wing aircraft. It enables pressure based flight instrumentation – including altimeters, airspeed indicators, rate of climb indicators, mach meters, and air data computers – to be accurately tested.

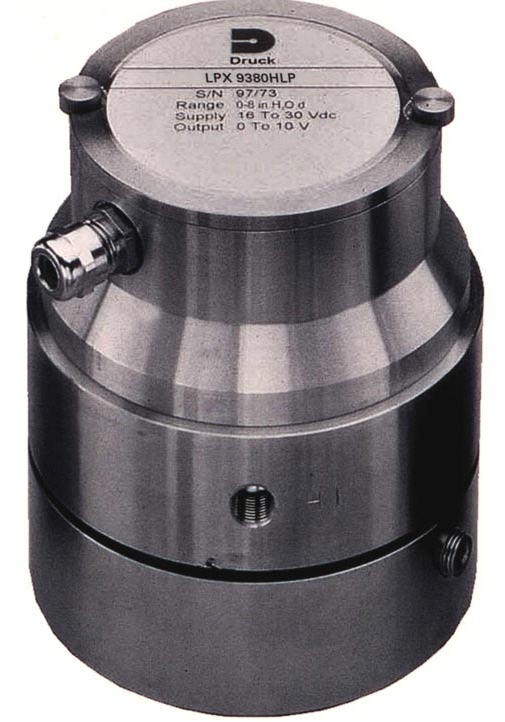

Pressure Sensor suits high-static/low-flow measurements.

Druck, Inc.    New Fairfield, CT 06812
Jun 24, 2002 Available in gauge or differential pressure, unidirectional or bidirectional operations, LPM/LPX 9000HLP Series low-differential pressure sensor offers static line pressure up to 10,000 psi. Watertight series measures differential or relative pressures of corrosive and non-corrosive gases and liquids in ranges between ±8 in. H2O and ±1000 psid. Variable inductance technology yields accuracy of 0.2% FS BSL. Standard operating range is 8 to 800 in. H2O.

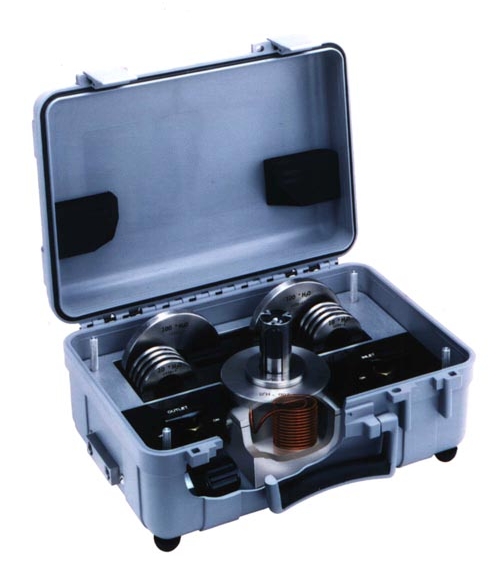

Deadweight Tester is traceable to NIST.

Druck, Inc.    New Fairfield, CT 06812
Jun 18, 2002 T9000 Series floating ball deadweight testers are available in ranges from 3 to 1000 in. H2O and have NIST traceable accuracies of 0.05%, 0.025%, and 0.015% of reading. Testers have ceramic ball and nozzle, wide operating temperature range, 400 psi and overpressure protection, durable case, and stainless steel weights. All units can be calibrated to local gravity and supplied in any of 3 water density factors.

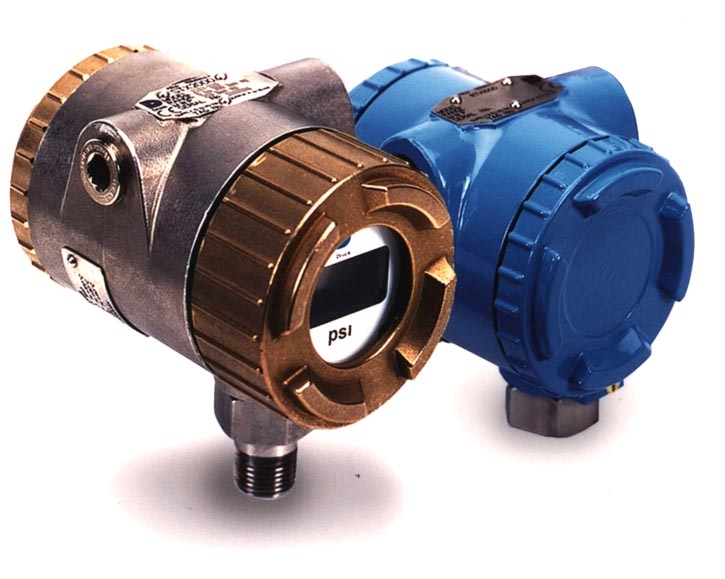

Pressure Transmitter complies with NAMUR failure mode.

Druck, Inc.    New Fairfield, CT 06812
Jun 14, 2002 RTX 1000 Gauge/Absolute pressure transmitter has 10:1 rangeability, 0.15% FS accuracy, and 0.1% FS per year stability. It is available in full scale ranges from 1 to 15,000 psi. Housing is available in epoxy-coated aluminum or 316L SS. Wetted parts are NACE MR-01-75 compatible. It is rated intrinsically safe and explosion proof by FM and CSA, and is CENELEC IS and flameproof certified. LCD display is optional.

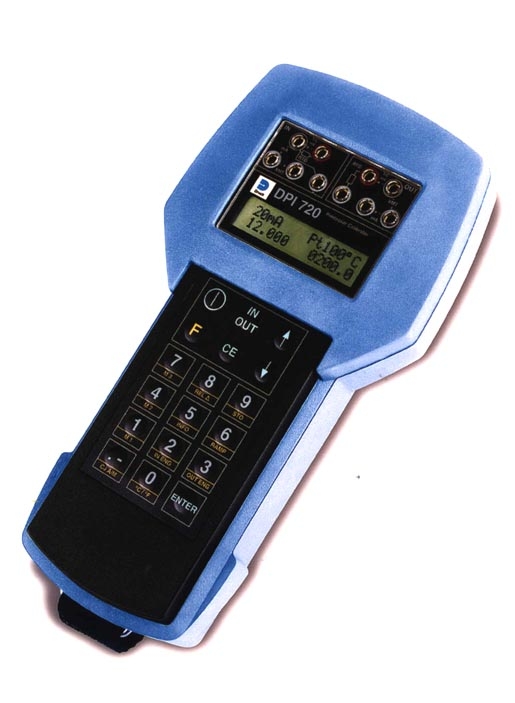

Process Calibrator replaces several test instruments.

Druck, Inc.    New Fairfield, CT 06812
May 22, 2002 Hand-held DPI 720 measures, sources, and simulates temperature and electrical process signals, and displays fully isolated input and output readings simultaneously on LCD. These include 34 input/output ranges for RTDs, thermocouples, current, voltage, and ohms. Unit offers independent scaling of input and output, 24 V loop power, and memory presets. It is AA battery powered and includes input-to-output isolation.

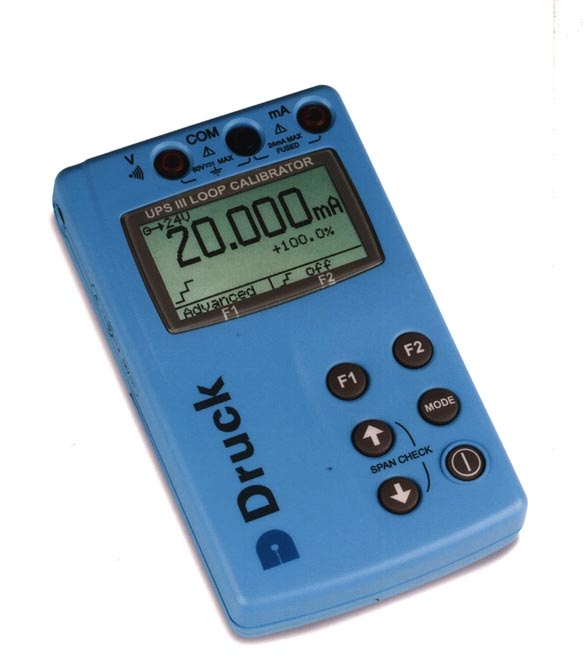

Loop Calibrator is HART(R) compatible and CE compliant.

Druck, Inc.    New Fairfield, CT 06812
May 01, 2002 Hand-held UPS III measures from 0 to 24 mA. It offers 0.01% reading accuracy (includes 12 month stability and temperature effects) coupled with 0.001 mA display resolution for demanding applications. For loop diagnostics and voltage output instrument maintenance, 0 to 60 Vdc can be measured. Microprocessor-based electronics and menu-driven graphic display provide simultaneous mA/% value readout.

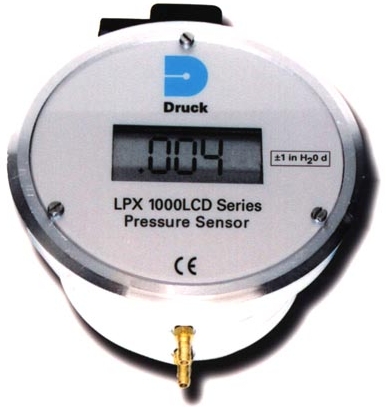

Pressure Transmitter suits HVAC monitoring and control.

Druck, Inc.    New Fairfield, CT 06812
Mar 12, 2002 LPX 1000LCD wet/wet differential pressure transmitter is available in 2 diameters, allowing installation directly into existing mechanical gauge applications. It offers standard accuracy of 0.5% FS, and standard ranges of ±0.1 to ±6 in. H2O, 2-wire, 4-20mA output. Excitation voltage is 15 to 30 Vdc. Damping adjustment feature allows user to slow response time to eliminate nuisance trips of alarms when doors are opened and closed.

Pressure Transmitters measure up to 10,000 psi.

Druck, Inc.    New Fairfield, CT 06812
Jan 14, 2002 PTX 7200 Series uses piezoresistive silicon pressure sensors to measure in ranges from 1 to 10,000 psi. All-welded 316L stainless steel housing and Hastelloy C276 diaphragm are NACE MR-01-75 compatible for handling hostile media. All models are available in gauge or absolute pressure versions with 2-wire 4-20mA output and are FM rated intrinsically safe for Class I, Div 1 & 2, and Groups A, B, C, D. Operating temperature range is -40 to 210°F.
