Clam Shell Straightener offers open access to rolls.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Nov 25, 2011 Featuring design that allows top rollers to rise up and separate from bottom rollers, Clam Shell Power Straightener provides access for inspection and cleaning of rolls. Open head feature is helpful when running materials with critical finish requirements as users can ensure rolls are clean and free from debris that might mark surface. To raise head that contains top rolls, users push button that activates hydraulic cylinder.

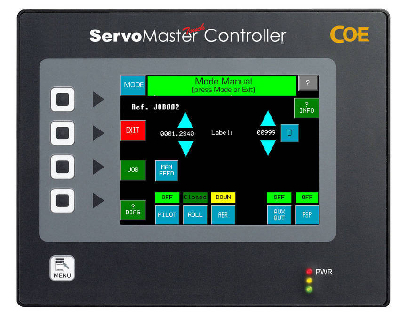

Touch Controller features 5.7 in. VGA color interface.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Sep 01, 2011 Featuring customizable operator screens, ServoMaster Touch(TM) Controller includes batch counter to 999,999 cycles and Feed Advisor to optimize feed parameters. Unit supports production data reporting of feed cycles and material usage, as well as downloading of set-up data or job number selection. Multi-axis capabilities include push-pull, zig-zag, and tailout configurations. Capable of storing 500 jobs in memory, control provides serial communications and password-protected job editing/parameters.

Coil Reel handles coils up to 10,000 lb.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Jul 26, 2011 Developed to serve press lines handling heavy coils in widths from 12-36 in., 10,000# Series can be combined with traveling coil car to provide modular unwinding solution. Unit can be configured to work in pull-off application with power straighteners and rollforming equipment or as motorized pay-off reel with drive mechanism to unwind coil built into machine. Standard features include heavy-duty welded construction, 3-pad mandrel design, and manual hand crank expansion.

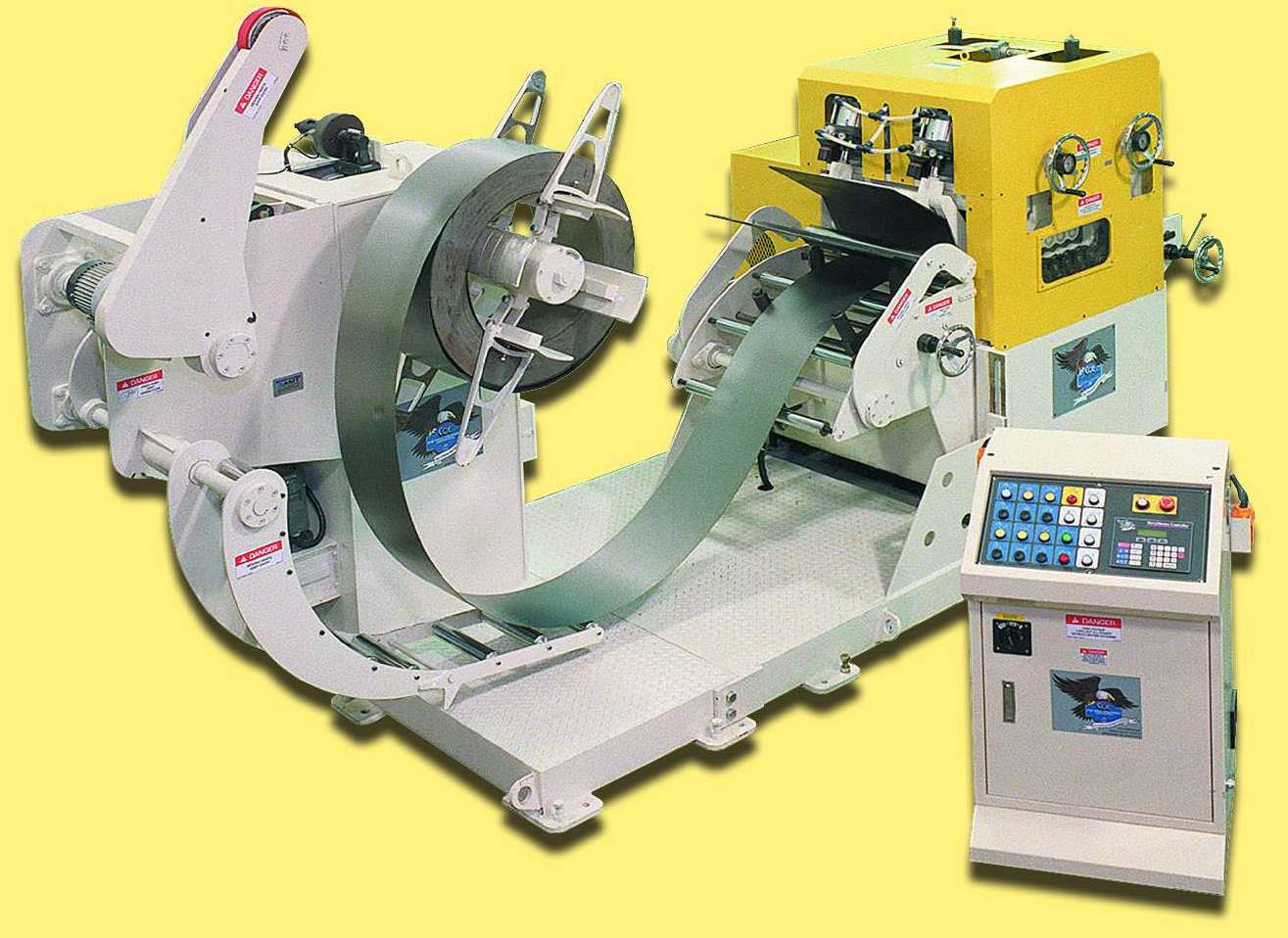

Coil Lines each combine 3 functions in single unit.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Nov 13, 2007 Combining unwinding, straightening, and feeding of coil stock, SpaceMaster Series 1 is available in 4 model sizes to process maximum coil widths of 12, 16, 20, or 24 in. Units can handle coil thicknesses to .125 in., coil ODs to 60 in., and max coil weight of 4,500 lb. Each system is mounted on common machine base, helping to maximize rigidity during feeding process. Overall footprint ranges from 12-15 ft.

Servo Roll Feeds suit staggered feeding applications.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Jul 18, 2006 Designed for staggered feeding applications of 12-30 in. coil widths, press-mounted Zig-Zag Servo Roll Feeds offer processing velocities to 576 fpm and acceleration rates to 70 fps. Y-axis shuttle travel of 4-12 in. provides processing capabilities required for one-out or multiple-out applications. Along with ServoMaster 3 Dual Axis Controller, products feature 500-job memory, true pivoting upper feed roll, 4-roll catenary section, and funneled stock path.

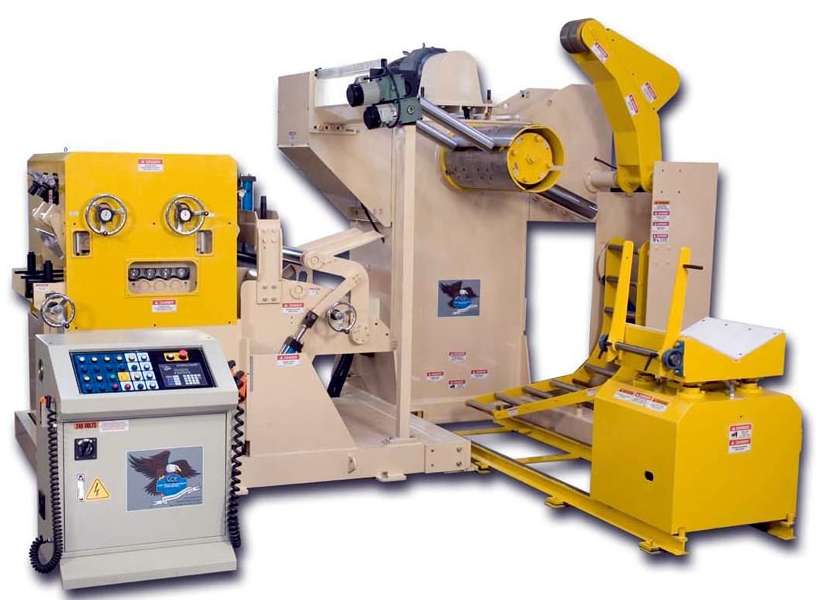

Multifunction Machine feeds, straightens, and unwinds coil.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Jan 13, 2005 Designed to optimize plant floor space, SpaceMaster Series 3 Compact Coil Line is offered in 3 models. It meets requirements of applications with thickness to .250 in., coil widths to 64 in., and coil weights up to 40,000 lb. ServoMaster 3 Controller provides users with servo feed controls and operator interface. Control, designed with graphic display, is available for single- and multiple-axis as well as step-programmable feeding applications.

Controller suits stamping and roll forming applications.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Jan 06, 2004 Step Programmable controller offers functionality suited to metalforming applications that require programmable outputs and repetition. Features include 8 programmable outputs with dwells; ability to program up to 50 complex move patterns from start and end sequences to loops and repeats; and adjustable accel and decel rates. It offers forward and reverse jogging feature, 7-digit alpha-numeric job naming assignments, and 500 job storage memory capacity.

Coil Handler combines functions to save space.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Jan 05, 2004 Mounted on common machine base, SpaceMaster Compact Coil Line Series unwinds, straightens, and feeds coil stock. It eliminates need for excessive slack loop area or loop pit and comes with powered straighteners in 5-over-5 or 5-over-4 arrangement. Series processes max coil widths of 12–64 in., coil thicknesses to .250 in. and coil ODs to 64 in., depending on model. Series 1, 2, and 3 accept coil weight to 6,600, 11,000, and 20,000 lb, respectively.

Coil-Feeding Line provides multiple operations.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Aug 28, 2002 Coil-feeding line features CPRF SM-4-42 ServoMaster servo roll feed, capable of processing 0.080 in. thick x 42 in. wide material. It also includes CPPS-350-42 power straightener, SIKO digital roll-height indicators, ultrasonic loop control, and dual-axis peeler table for automated coil threading. CPR-30042 coil reel can handle 30,000 lb, 42 in. wide coil and includes hydraulic traveling coil car for material staging and changing.

Power Straighteners suit metal stamping applications.

Coe Press Equipment Corp.    Sterling Heights, MI 48310
Apr 22, 2002 Series 250 provides speed, torque, and straightening capacity needed for light gauge coil metal-stamping. Machines are typically matched with ServoMaster Series 1 and 2 servo roll feeds and 2,500 to 20,000 lb capacity coil reels. They feature oversize Crodon coated pinch rolls, 7 independent straightening rolls, cluster-gear drive drivetrain, and AC-variable speed-drive technology.
