Surface Mount Platforms are optimized for capacity, utilization.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Feb 18, 2013 Intended for electronics manufacturers, FuzionXC2-37 and FuzionXC2-60 leverage NPI software tools featuring icon-driven interface and efficiency tools, including on-line component auto-teach and on-the-fly production editing. FuzionXC2-37 accommodates boards up to 1,300 x 610 mm; 272, 8 mm feeder inputs, and range of input types: strip, tape, tube, odd-form, and tray. FuzionXC2-60 offers 264, 8 mm feeder inputs, larger board support, and on-the-fly part range.

Automated Insertion Products accelerate pin-through-hole process.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Dec 20, 2012 Automated Insertion (AI) products include Radial 88HT and VCD 88HT. While accommodating range of components on one machine with quad-span insertion tooling (2.5, 5.0, 7.5, and 10 mm), Radial 88HT radial inserter also addresses high-density applications with single-span insertion tooling. Programmable clinch height facilitates lead length optimization, sensitive component placement, and backside density conflict resolution, and Tall Part Kit enables placement of components as tall as 27 mm.

Pick-and-Place Platform supports LED and SMT technologies.

Universal Instruments Corp.    Binghamton, NY 13902 0825
May 01, 2012 Optimizing productivity for LED and SMT applications by leveraging Lightning® placement head, Advantis® AC-60 LED consists of dual-beam platform configured with two 30-spindle Lightning placement heads that maximize throughput for 1.2 m LED lamps. Enablers for LED applications include specialized long board kits to support boards up to 1.3 m long as well as various LED nozzles that utilize soft compliant tips when contacting LED globe or pick LEDs without contacting globe.

Surface Mount Placement System handles boards up to 1,016 mm.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Apr 06, 2011 Powered by VRM linear motor with closed-loop 1 µm positioning, Genesis Series 2 is available 1-, 2-, and 4-beam configurations with throughputs up to 140,000 cph. Unit features 30-spindle Lightning® head, which places passives down to 01005, CSPs, WSPs, µBGAs, eCAPs, DPAKs, and MELFs at full speed. Vertical part sensor verifies part presence immediately prior to placement, while dual on-the-head cameras support components up to 30 x 30 mm and up to 6 mm tall.

Direct Die Feeders install on GenesisSC Platform.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Mar 25, 2011 Innova and Innova + direct die feeders are portable, high-speed units that enable GenesisSC system to assemble complete module on single machine. Multiple feeders can be installed on single placement machine with minimum feeder slot consumption and feeders can alternate operation for continuous running of like part numbers. Units process wafers up to 300 mm in size and include vision processing, wafer map input or ink dot identification, and barcode identification and tracking.

Reporting Software identifies production inefficiencies.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Apr 09, 2010 Designed to increase utilization rates to over 90%, Linechart(TM) multi-vendor reporting software provides complete visibility into all production lines and identifies factory inefficiencies. It helps maximize utilization by monitoring production lines and providing graphical feedback for several KPIs across Universal and non-Universal pick-and-place equipment. By displaying data down to feeder and nozzle level, all guess work is removed from debugging issues.

Radial Insertion Machine offers expanded lead span capability.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Jan 13, 2010 With 5.0/7.5/10.0 mm triple-span, Radial 8XT Insertion Machine optimizes PCB coverage by automating placement of components that, until now, have required manual insertion. Machine is available in both stand-alone and pass-through configurations and will benefit power supply, white goods, military, and aerospace electronics production. In addition, 15 mm dispense head tooling is available to minimize dispense time requirements.

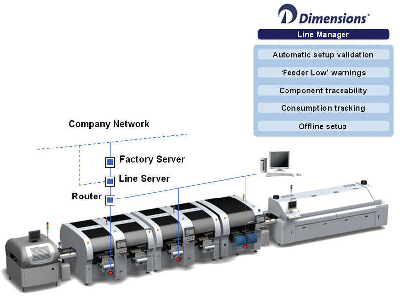

Shop Floor Control Software maximizes line utilization.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Aug 24, 2009 Promoting production visibility, Dimensions® Line Manager reduces downtime by up to 75% in any manufacturing environment. It enables proactive management of changeover and part replenishment during production. Additional functionality offers dynamic instructions at each machine for feeder destinations during changeover and automatically guarantees correct locations. Modular solution also includes various production management tools for feeder, component, and reel monitoring.

Placement System addresses mid-tier SMT assembly needs.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Apr 01, 2008 Targeted at mid-tier assembly sector, AdvantisX surface mount platform features linear motor positioning system and is available in single- as well as dual-gantry models empowered by Lightning Head technology. Platform is also offered in several multifunction configurations utilizing Inline7 and Inline4 High Force flexible heads.

Electric Tape Feeders offer continuous splice capability.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Oct 24, 2006 Supporting requirements of high-speed chip placement, 0201-capable 8 mm Gold dual-lane feeders offer PSV reel detection sensor that enhances traceability for absolute line control. Single lane Black 8 mm and 12 mm electric feeders, designed for medium to low-volume midrange applications, ensure traceability with unique feeder ID. All feeders are compatible with Lightning rotary-motion surface-mount component placement head.
