Load Cell facilitates brake testing.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Sep 14, 2005 Designed with 3 in. diameter flat loading surface, Brake Pedal Load Cell measures force where direction of load changes. Set of tapped holes on underside and mounting bracket allow it to be firmly attached to pedal. Load cell gives same output, ±1%, no matter where force is applied across surface. By minimizing error due to off-axis loads, unit is suitable as part of portable system for automotive and aerospace brake testing.

Load Cells come in miniature and subminiature models.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Jun 30, 2005 Available in tension and compression models, load cells cover capacities from 50 g to 10,000 lb and come in sizes as small as 0.13 in. high x ½ in. dia. Units may be incorporated into existing machines and are suited for space-restricted areas. Featuring all-welded construction, products are available with accuracies to 0.1% and have operating temperature range of -65 to +250°F. Standard output is mV/V.

Transducer Indicator/Conditioner comes in 1/8 DIN package.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Sep 24, 2004 While offering strain gauge, high-level, and LVDT transducer input options, microprocessor-based Model SC500 also provides 5 output options, including RS-232 and RS-485. It has 4 virtual channels to support custom applications and offers Plug and Play technology, eliminating cabling and labeling problems. Equipped with vacuum-fluorescent display, unit is compatible with various Honeywell Sensotec sensors and comes with ac adapter.

Digital Pressure Gauge offers 0.25% accuracy.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Sep 17, 2004 Featuring 313 stainless steel wetted parts, Model CK uses high-impedance sealed pressure transducer compatible with liquids and gases. It includes auto shut-off, independent zero and span adjustment pots, and on/off membrane switch. Maximum pressure is 1,000 psi and compensated temperature range is 0–70°C. User can select gage, absolute, or vacuum reference. Backlit display and NEMA 4X rating are optional.

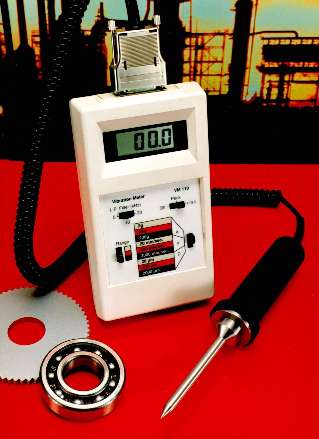

Portable Vibration Meter helps protect machine components.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Jul 01, 2004 Battery-powered Model VM enables engineers to prevent damage to components by monitoring machine vibration. Placing probe directly on vibration point and comparing 2 successive readings indicates when vibration is increasing to unacceptable levels. User can select Model VM110 for peak or Model VM120 for peak-to-peak and rms measurements of acceleration, velocity, and displacement. Respective ranges include 2, 20, and 200 g; 2, 20, and 200 ips; and 2, 20, and 200 thou.

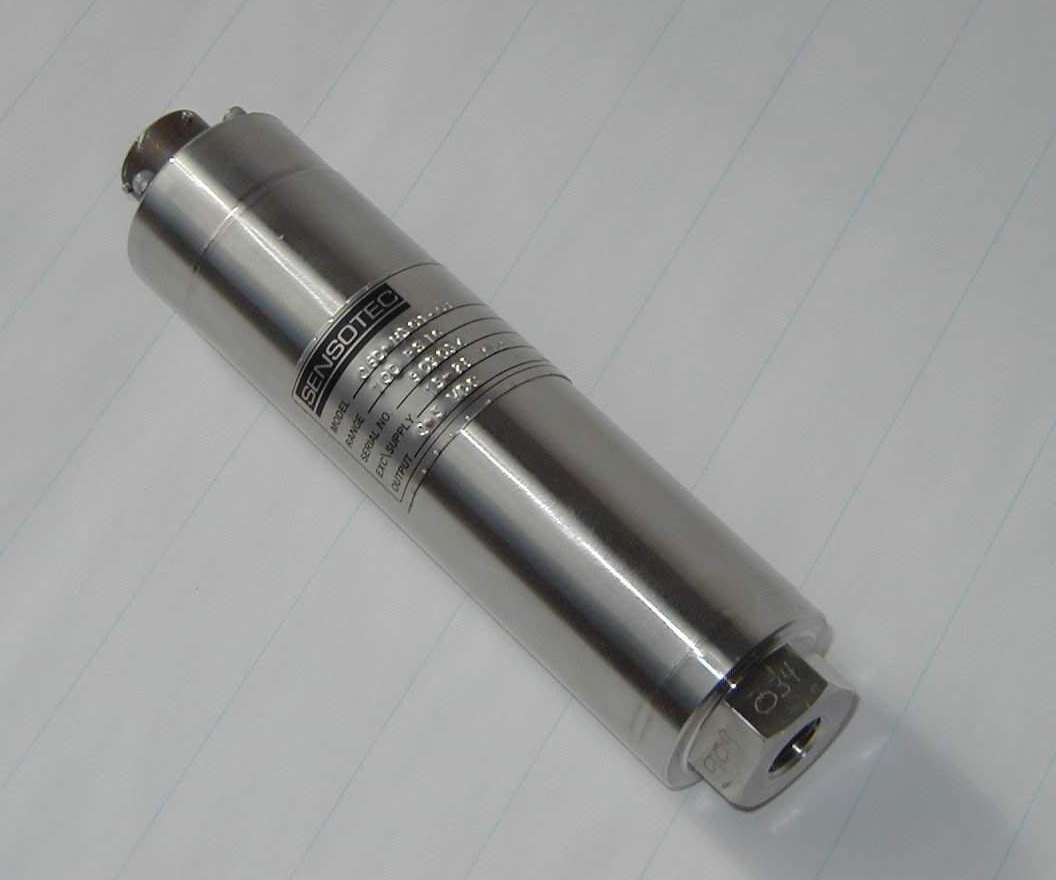

Pressure Sensor produces digital and analog outputs.

Honeywell Sensotec    Columbus, OH 43228
Mar 08, 2004 Model DS provides RS485 or RS232 output and 0–5 Vdc analog output. Digital output eliminates need for interface card with connection to PC or data acquisition system. Frequency response of analog output and 380 readings/sec of digital output meet test and measurement requirements. All-welded, stainless steel sensor has combined accuracy of ±0.1% FS including temperature errors over compensated temperature range. Pressure ranges are 0–5 psi to 0–10,000 psi.

Accelerometers have built-in signal conditioning.

Sensotec, Inc.    Columbus, OH 43228
Nov 25, 2003 Models MA15, MA321, MA322, and MA52 provide 4–20 mA output that is proportional to RMS vibration value. With built-in signal conditioning, accelerometers require only 4–20 mA meter to monitor vibration. Model MA15 provides output proportional to g vibration, while Model MA52 delivers output proportional to velocity vibration levels. Models MA321 and MA322 provide g vibration down to 0 Hz.

Torque Transducers measure over wide range.

Sensotec, Inc.    Columbus, OH 43228
Nov 06, 2003 Models QWFK-8M/QWLC-8M Miniature Reaction Transducers feature 4 bonded strain gauges, positioned on finely machined spindle, to effectively measure torque ranges from 25 oz-in. to 300 lb-in., achieving 0.1% maximum non-linearity. Units operate and calibrate in both directions. Typical applications include motor dynamometers, tire braking, twist measurement, torque table, and friction-skid test measurements.

Digital Force Indicator has 10,000 lb capacity.

Sensotec, Inc.    Columbus, OH 43228
Oct 14, 2003 Powered by 9 V battery, Model LK provides portable solution to calibration verification. It can be deployed in remote locations requiring force measurement calibrations in tension or compression of up to 10,000 lbs. Unit can be set to zero and display high and low readings via pushbutton control. Product's 3 ft cable enables indicator to be operated away from sensor, while stainless steel construction protects unit in adverse field conditions.

Calibration Conditioner designed for load cells.

Sensotec, Inc.    Columbus, OH 43228
Oct 07, 2003 Microprocessor-based Model SC2000 AM provides 1 or 2 channels and is calibrated against 8.5-digit, traceable digital voltmeter. Conditioner presents test and reference load cell measurements on split-screen display. Its 22-bit processor offers 19 bits of resolution that measures signals from up to 2 load cells. Unit connects to computer running load cell calibration software to generate certificates and store and retrieve calibrated load cell data.

Calibration Systems are IEEE 1451.4 compliant.

Sensotec, Inc.    Columbus, OH 43228
Aug 19, 2003 Plug, Play, and Calibrate Systems are compliant to IEEE 1451.4 standard for connectivity of sensors and associated signal conditioning. Transducer electronic data sheet containing sensor specifications, calibration data, and user-defined location information is stored in sensor. When connected to SC2000 or any IEEE 1451.4 compliant signal conditioning, sensor is interrogated for TEDS information and automatically sets up and calibrates signal conditioning with sensor.

Wireless Transmitter works with bridge based sensors.

Sensotec, Inc.    Columbus, OH 43228
Aug 12, 2003 Model WTB battery-powered, wireless transmitter for use with Honeywell-Sensotec bridge based sensors simplifies testing, measurement, and automation by eliminating hookup of cables and sensing devices. Based on PWM technology, system features up to 1000 Hz frequency response for data transmission over line-of-sight distances up to 300 ft. Product operates in 900 MHz ISM radio band and does not require FCC licensing. Analog output is ±5 Vdc.

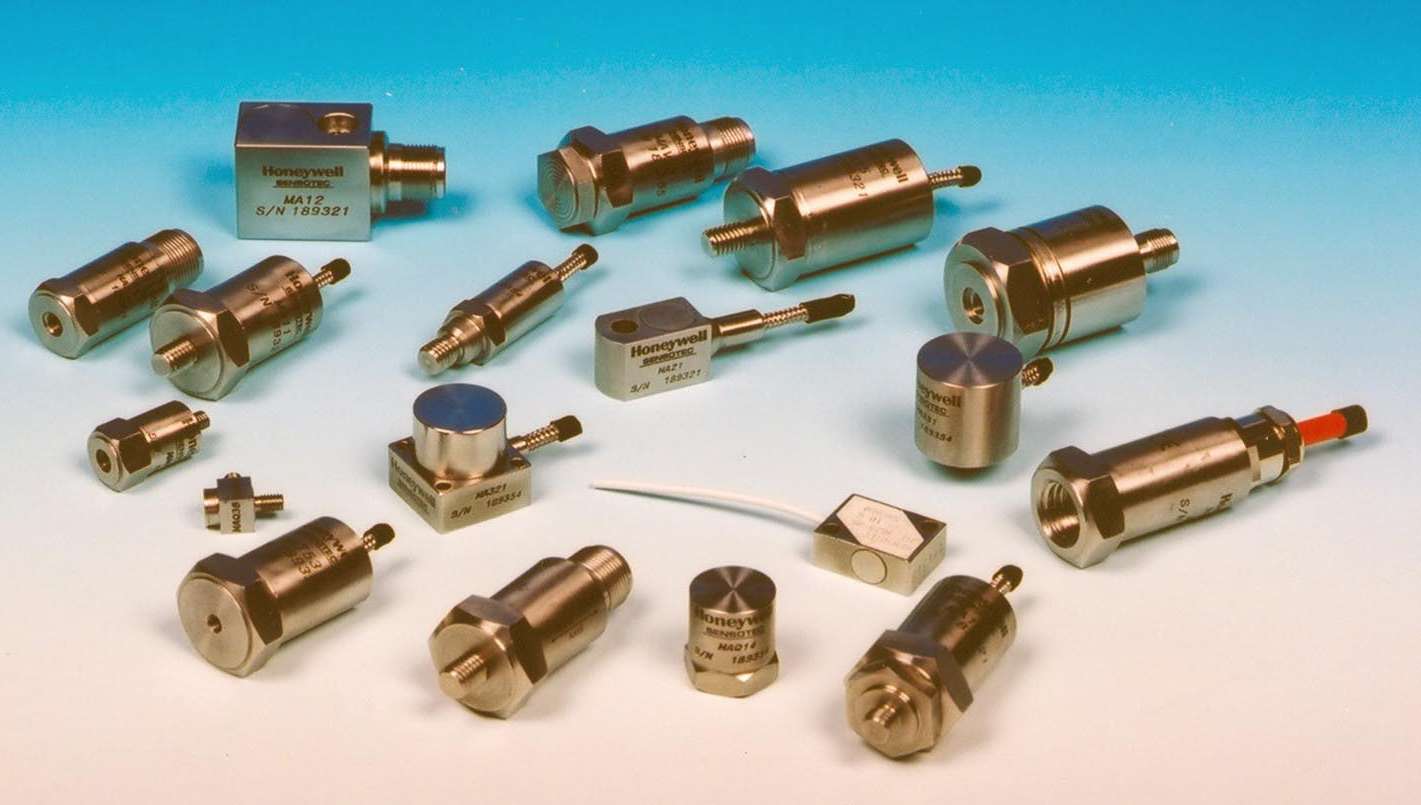

Accelerometers survive harsh environments.

Sensotec, Inc.    Columbus, OH 43228
Aug 06, 2003 Stainless steel MA Series test and measurement accelerometers withstand temperatures from 100–500°F. They offer frequency response from DC to 25 KHz and ranges from 5–2,000 g. Outputs can be IEPE (2 wire constant current), charge, or current, and mounting configurations include stud mount, bolt mount, and epoxy. In addition to underwater submersible units, products include miniature sensors for space-restricted applications.

Sensor Amplifiers are DIN rail mounted.

Sensotec, Inc.    Columbus, OH 43228
Apr 22, 2003 Sensor Amplifiers offer hi-level output signals, ready for long cable runs and/or direct interface to common PLC interface cards. They provide controlled power to associated sensor and condition sensor's return signal before providing it to output terminals. Relay buffered shunt calibration circuit offers simplified calibration, set-up, and real time circuit verification. Outputs include ±5 Vdc, ±10 Vdc or 4–20 ma.

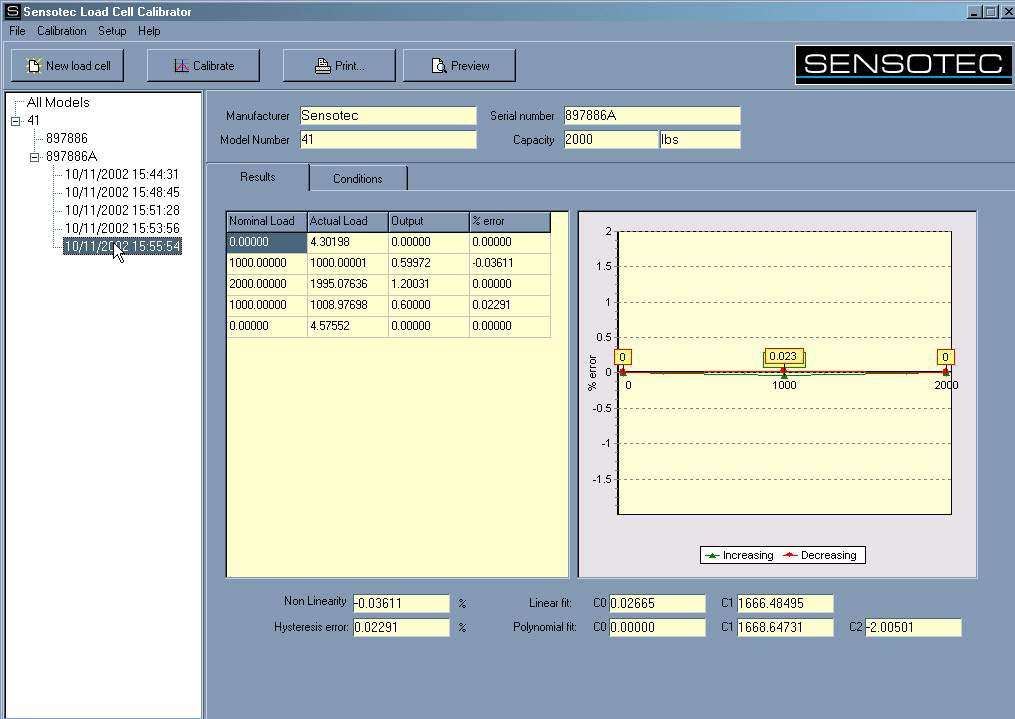

Software calibrates load cells.

Sensotec, Inc.    Columbus, OH 43228
Dec 11, 2002 Load Cell Calibration Software accepts output from both load cell under test and load being applied to cell. Upon completion of loading cycle, it calculates linearity and hysteresis and provides least squares fit and polynomial information on cell under test. Software works with excitation and signal conditioning equipment. Archiving and data storage functions allow information on previously calibrated load cells to be retrieved.

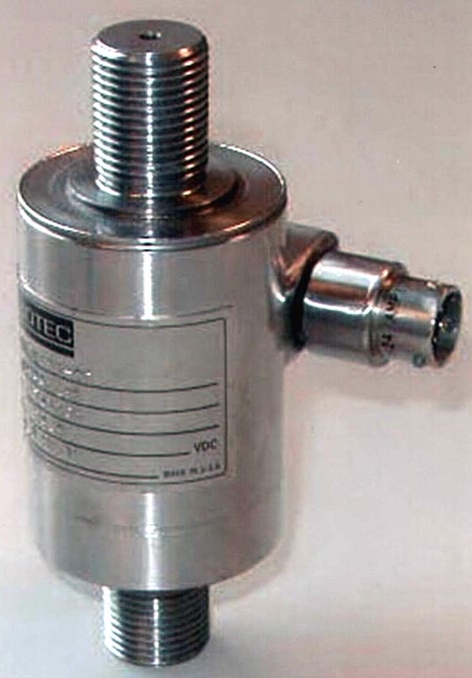

In-Line Load Cell works in compression and tension.

Sensotec, Inc.    Columbus, OH 43228
Sep 03, 2002 Fully welded and hermetically sealed Model RG has 50% overload capacity rating. Unit exhibits only .003 in. FS deflection and suits applications where side loading cannot be completely controlled. It is available for ranges from 2,000 to 50,000 lb and can be configured with integral male and/or female threads. Excitation up to 15 Vdc or Vac is acceptable and standard output is 2 mV/V. Combined linearity and hysteresis is ±0.25% over operating temperature of -65 to +250°F.

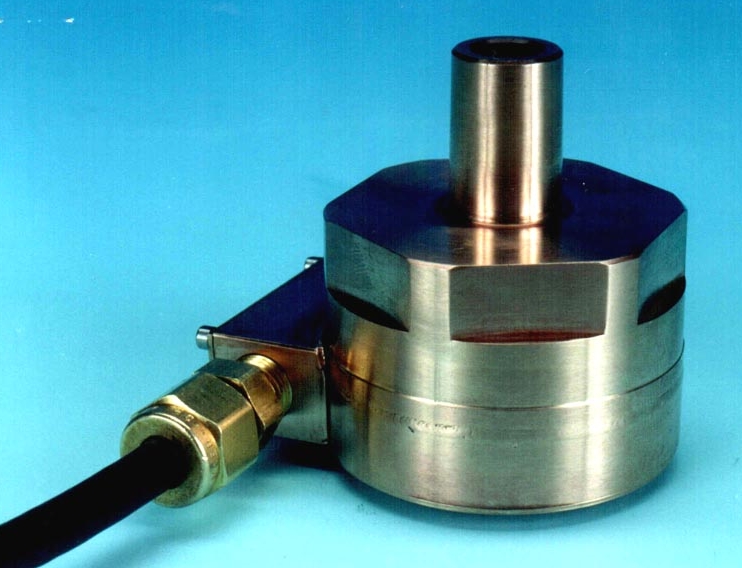

Weld-Thru Sensor provides force-triggered firing.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Aug 28, 2002 Model WEL weld-thru load cell combined with Model WGM Weldmeter allows control of electrode force at time of firing for spot and projection welds. System works equally well with differential air or hydraulic pressure sensors to provide consistent results.

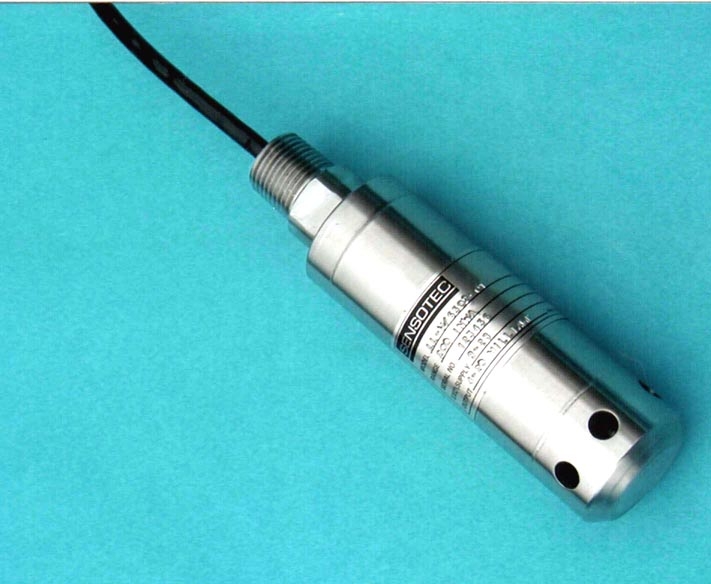

Tank Level Sensor measures virtually any depth.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Aug 21, 2002 Model LL-V vertical entry style submersible sensor may be suspended in open tank or attached to crown of enclosed tank to measure liquid level with 0.1% accuracy. Sensor has all-welded stainless steel construction, and welds are helium leak tested. Atmospherically vented oceanographic cable assembly exits through ½-14 NPT threaded conduit connection. This allows mechanical or chemical protection tubing or pipe to be threaded over cable.

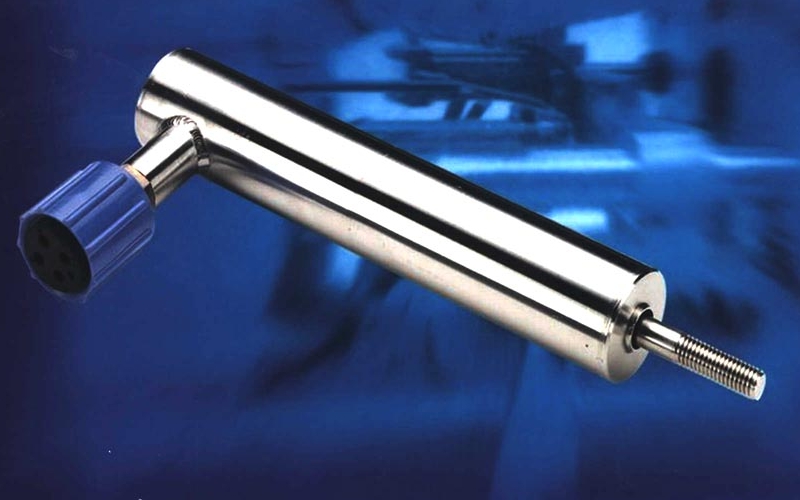

Displacement Sensors operate in sea water up to 10 years.

Sensotec, Inc.    Columbus, OH 43228
Aug 06, 2002 Model SSA (AC/AC) and Model SSD (DC) are submersible LVDT displacement sensors designed to operate in sea water at depths up to 7500 ft. They have all welded 316 stainless steel construction and waterproof cable and connector. Sensors are offered in ranges from ±0.5 to ±4 in. with operating temperatures from -40 to +122°F and capability to withstand pressures up to 3500 psi.

Communication Module helps calibrate sensors.

Sensotec, Inc.    Columbus, OH 43228
Jul 08, 2002 SC2000 Signature Module communicator for pressure transducers, load cells, and torque sensors allows auto-calibration with Model SC digital indicator. Calibration information is stored in each sensor, including serial number, full scale range, units of measure, decimal point, and last calibration date. Upon power-up or command, Model SC interrogates sensor and automatically sets zero and span of amplifier.
