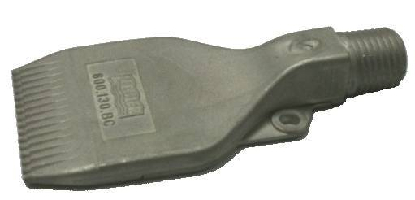

Compressed Air Nozzle features stainless steel design.

Lechler, Inc.    St. Charles, IL 60174
Jul 03, 2012 Operating at inlet air pressures up to 150 psi and temperatures up to 1,000°F, WHISPERBLAST Air Nozzle is suitable for drying off parts, blowing dirt or dust off of parts or equipment, or blowing off rejected items from conveyor. Unit is constructed of 316L stainless steel enabling it to withstand virtually any condition in which it is used, such as pressures and temperatures required in steel mills and material resistance necessary for use around heavy oils and caustic chemicals.

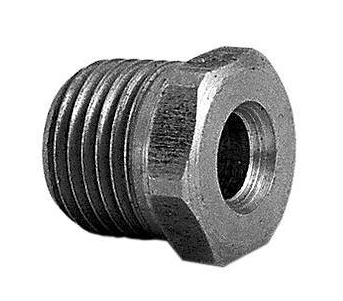

Solid Stream Nozzles suit high pressure showers.

Lechler, Inc.    St. Charles, IL 60174
Jun 25, 2012 Available in solid 316 SS or 316 SS with ruby orifice, Needle Jet Nozzles are suited for cleaning on paper machines in paper mills with use of oscillator, as well as any cleaning application requiring high pressure needled jet sprays, such as felts or wires. Second only to diamond in wear resistance, ruby will outlast stainless steel, glass, and ceramic as orifice material. Alternate version of nozzle has clog preventer, which is designed for showers without self-cleaning features.

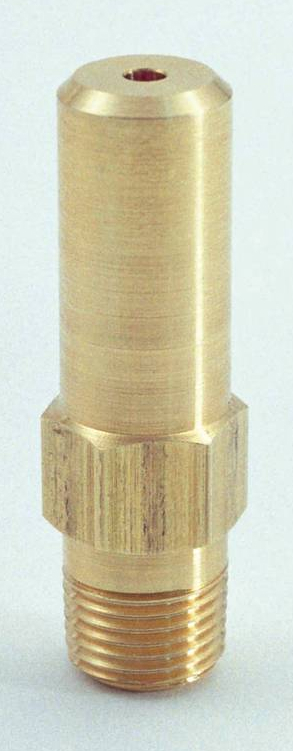

Ruby Orifice Nozzle trims wet paper to uniform width.

Lechler, Inc.    St. Charles, IL 60174
Jun 25, 2012 Able to create columnar streams of fluid under low (100 psi) or high (1,000 psi or more), ruby orifice solid stream or needle jet trim nozzle can be used anywhere potent solid stream is required for maximum impact or to trim pliable target. Product is constructed for spray precision, performance consistency, and extended operational life with 316Ti stainless steel housing and ruby orifice. Optional strainer is available to protect against clogging, and 1/8 in. connection is standard.

Pneumatic Atomizing Nozzles features solenoid activation.

Lechler, Inc.    St. Charles, IL 60174
Jun 22, 2012 Without additional air input, Series 166 creates fine mist for humidification, cooling, or coating. Assembly consists of solenoid coil attached to AirMist pneumatic atomizing nozzle. Solenoid electronically activates nozzle through operation of needle valve, which opens liquid passage of nozzle to allow it to operate and closes it down to shut off flow. This operation is instantaneous and not dependent upon distance between air control and nozzle, accelerating cycling.

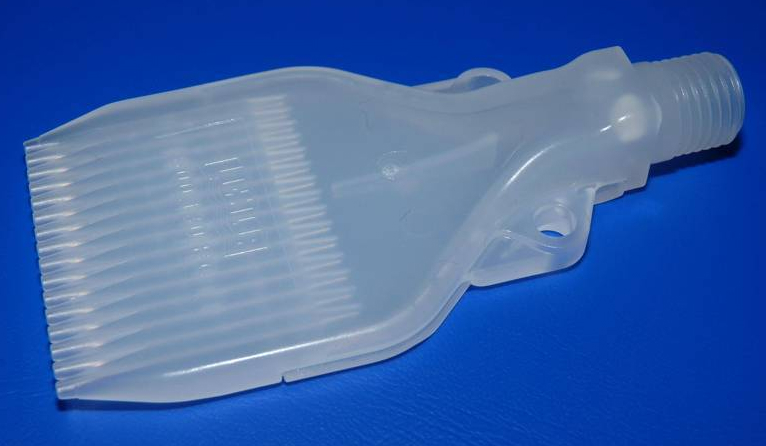

Air Nozzle features polypropylene construction.

Lechler, Inc.    St. Charles, IL 60174
Aug 26, 2011 Compliant with FDA standards, PP WhisperBlast has transparent color and 16 channels of concentrated blasting power. Flat configuration which makes unit usable for use individually or side-by-side on header. Appropriate uses include cleaning, drying, and cooling applications in food, beverage, and pharmaceutical industries or wherever harsh acids might come into contact with nozzle. Product comes standard in ¼ in. male NPT threads and can operate at inlet air pressures up to 75 psi.

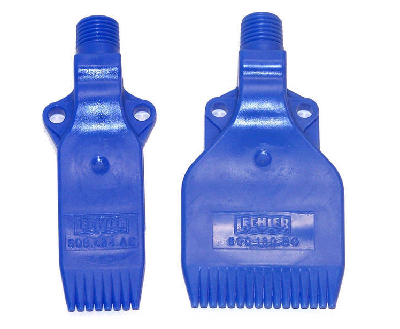

Air Nozzles control compressed air in industrial applications.

Lechler, Inc.    St. Charles, IL 60174
May 10, 2011 Available in flat and round versions, WHISPERBLAST® Air Nozzles are suited for drying off parts, blowing dirt or dust off equipment, or blowing rejected items from conveyor. Standard round version supports hand-held applications, while standard flat version, available in aluminum, stainless steel, or zinc, can be installed on machine or used with others on header to create air curtain. For tight places, Mini-WHISPERBLAST and MiniBlast are available.

Atomizing Spray Nozzle offers flat and round spray patterns.

Lechler, Inc.    St. Charles, IL 60174
Jul 29, 2010 Available in choice of stainless steel or nickel-plated brass, AirMist(TM) Nozzle provides consistent, precision spray mist with very fine droplets created through collision of fluid and metered air. Unit comes in internal or external mix models and is especially appropriate for spraying applications that require coating, cooling, or humidification. Optional accessories for shut-off control and cleanout are available.

Flat Fan Spray Nozzles suit wide range of applications.

Lechler, Inc.    St. Charles, IL 60174
Jul 01, 2010 Covering fan-shaped area on single plane, Flat fan nozzles are suited for use in stationary position on conveyor when target moves through spray or when spray itself is independently moved over target, such as on wand. Nozzles have parabolic distribution and are suited for cleaning, surface treatment, PCB etching, degreasing, phosphating, and foam control applications. Product line includes threaded, tip, deflector, and ball-type as well as clip-on and high pressure nozzles.

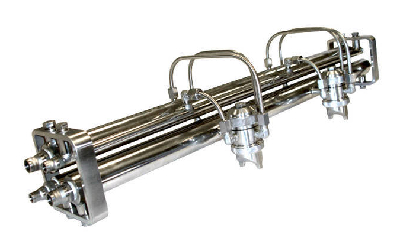

Air Atomizing Headers target food industry.

Lechler, Inc.    St. Charles, IL 60174
May 22, 2009 In addition to fixed-location style, Air Atomizing Headers come in side track mounting design, enabling operator to fine tune nozzle location on header. Units connect to LSC 360i computerized spray controller, which allows user input of spray variables for control of spray process. Headers are available with AirMist or ViscoMist(TM) nozzles, which combine metered air and liquid for fine atomization. Both come in nickel-plated brass or 316 stainless steel.

Spray Controller customizes spray performance.

Lechler, Inc.    St. Charles, IL 60174
Jun 07, 2006 Part of modular, self-contained Portable Spray Platform, Lechler Spray Controller offers various functions and timing modes that can be selected by operator to customize spray performance. It controls performance of spray headers such as for coating applications on food and pharmaceutical lines. When connected to controller, AirMist(TM) and ViscoMist(TM) air atomizing nozzles offer optimized precision.
