Air Operated Flow Control Valve features mixproof design.

Top Line Process Equipment Co.    Bradford, PA 16701
Nov 16, 2012 With TOP-FLO® VDCI MC PMO-C, two different liquids can cross over in complete safety, even during seat lifting operations. Valve features 3 identical O-rings, which avoid risk of confusion between spare parts during maintenance. Equipped with intermediate plug made from PEEK resistant plastic, valve eliminates need for additional seal. Compliance with 3A standard 85-02 allows pasteurized milk in one chamber while CIP solution is flowing into other chamber, without any risk of mixing.

Circumferential Piston Pump serves sanitary fluid applications.

Top Line Process Equipment Co.    Bradford, PA 16701
Sep 14, 2012 Featuring circumferential piston design and helical timing gears, TRA® 10 and 20 Series provide gentle action for shear-sensitive liquids, or slurries with soft solids, that suit such areas as food processing as well as beverage and cosmetic manufacturing. Design and cleanability make series applicable for all sanitary fluids. Typical applications include dairy, bakery, meats, canned foods, beverages, candy, flavorings, dressings, cosmetics, and industrial.

Stainless Steel Canister Actuator operates at 80 psi.

Top Line Process Equipment Co.    Bradford, PA 16701
Aug 31, 2012 Intended for Top Line butterfly valves ranging from 1-4 in., Top-Flo® Canister Actuator has 304 stainless steel shell with O-ring seal, prelubricated internals, and 1/8 in. FNPT x ¼ in. OD air connections for poly tube. Stainless steel brackets and fasteners withstand external washdown environments, while dual stacked coil springs render reliable output torques to ensure valve closure. Visual indication is located on coupler for valve position confirmation.

Three-Way Ball Valves divert to L or T port flow patterns.

Top Line Process Equipment Co.    Bradford, PA 16701
Nov 10, 2011 Meeting 3A/FDA/USDA requirements, Top-Flo® 3-Way Ball Valves feature fully encapsulated PTFE cavity filler, locking vinyl handle, and and are available in sizes from ½-4 in. ISO-5211 direct mounting pad, standard on all valves, eliminates need for brackets and couplers. Suited for applications requiring tight shut off, valves maintain and regulate high-volume, high-pressure, and high-temperature flow. Tri-clamp ends are standard, but other ends are available.

Valve Actuators are resistant to corrosion.

Top Line Process Equipment Co.    Bradford, PA 16701
Nov 10, 2011 Available in double acting and spring return models, Top-Flo® TA Series features ISO 5211 valve mounting dimensions and corrosion-resistant, hard anodized finish. In addition to dual travel stops, features include valve position indicator optimized for visibility. Various feedback switches and controls are also available. Along with standard operating temperature range of -20 to 175°F, actuators have max air line pressure rating of 150 psig.

Ball and Butterfly Valves are electrically actuated.

Top Line Process Equipment Co.    Bradford, PA 16701
Nov 24, 2009 Top Line TE Series electric actuators are available in 24 Vac, 24 Vdc, and 115 Vac single-phase voltages. Featuring NEMA 4, 4X, and IP67 polyester powder-coated aluminum housing, they integrate 2 limit switches for operation and 2 auxiliary dry contact switches. Anticondensation space heater minimizes downtime. Units also include visual position indicator and captive cover bolts, while external manual override protects devices during power failure.

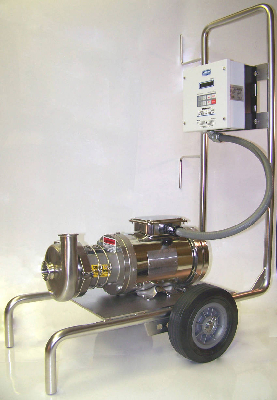

Pump Dolly features full 304 stainless steel construction.

Top Line Process Equipment Co.    Bradford, PA 16701
Jan 06, 2009 Featuring roll-away design, Pump Dolly is available for C100, C114, C216, C218, and C328 pumps with motors through 10 hp. Unit has two 8.0 in. semi-pneumatic wheels, bead blast finish, adjustable pivot point axle, and handle-mounted cord wrap. Full range of control options is available, including VFD, start/stop controls, and network controls.
