Laser Cutting Machine is designed for autonomous operation.

Bystronic, Inc.    Elgin, IL 60123
May 02, 2013 In combination with automation system, ByAutonom 3015 can be operated lightly manned. Labor tasks associated with laser setups and manned operations are reduced due to Automatic Lens Cassette Changer, Automatic Nozzle Changer, and Automatic Nozzle Centering. Along with option to incorporate 4,400 or 6,000 W CO₂ laser sources, system offers accelerated operation due to linear motors, rigid machine frame, and lightweight cutting bridge. Optional rotary axis allows tube profile processing.

Laser Cutting System offers 4,400 and 6,000 W laser options.

Bystronic, Inc.    Elgin, IL 60123
Jan 08, 2013 Available with ByLaser 4400 or ByLaser 6000 CO2 laser source, BySprint Pro 3015 offers accelerated pierce times across full material range. Automatic nozzle changer provides up to 40 nozzles and CNC controlled automatic nozzle centering. For economic efficiency, system features wear-free solid state power supplies and magnetic-bearing turbine. Electrical power consumption is minimized because excitation is automatically switched off when protective door is opened and when machine is at standby.

Electric Press Brake provides 88 tons of bending force.

Bystronic, Inc.    Elgin, IL 60123
Dec 17, 2012 Powered by dual electric motors, Xcite 80 E offers seamless speed transitions without lag times. Fast Bend+ safety system enables upper tool to be positioned very close to metal sheet without placing operator in any danger. Providing speed, power, and constant pressure along entire bending length, Force Dynamic Drive ensures that minimal deflections occur in both upper and lower beam, enabling Xcite to bend within tolerance of ±25 arc min, and with repeatability of ±0.000098 in.

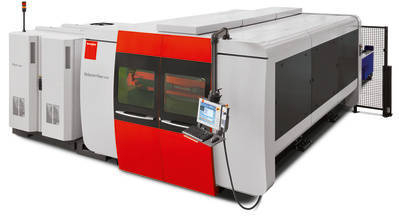

Fiber Laser Cutting Machine delivers power and flexibility.

Bystronic, Inc.    Elgin, IL 60123
Feb 22, 2011 Equipped with 2 kW Fiber 2000 fiber laser, BySprint Fiber 3015 can cut steel, stainless steel, and aluminum as well as non-ferrous metals such as copper and brass. Laser beam is transported to cutting head via passive fiber, and cutting head with 150 mm focal length optimizes performance in cutting of thin and thick material. While performance is optimized for handing metal sheets up to .160 in. thick, laser source provides power enough to process sheet materials as thick as .500 in.

High-Speed Laser Cutting System utilizes 4.4 kW laser source.

Bystronic, Inc.    Elgin, IL 60123
Jul 24, 2009 Optimized for compressed air cutting and thin sheet metal processing, BySprint Pro 3015 is equipped with 3.75 in. cutting head and ByLaser 4400 laser source, with wear-free solid state power supplies and magnetic-bearing turbine. Laser excitation is automatically switched off when protective door is opened, as well as when machine is at standby, resulting in low power consumption. System can also handle thick metal plates.

Intensifier Pump suits Byjet waterjet cutting system.

Bystronic, Inc.    Elgin, IL 60123
Mar 26, 2008 With dual cylinder intensifier design, Bypump 50 APC (Active Pressure Control) intensifier pump uses CNC control for each cylinder to maintain constant pressure. It outputs 1.3 gpm of water, which allows either 1 head cutting with 0.016 in. orifice or 2 heads with 0.011 in. orifices. Diagnostics within pump control allow for monitoring over 20 signals to aid troubleshooting, and can be accessed either at pump itself or through Byvision control.

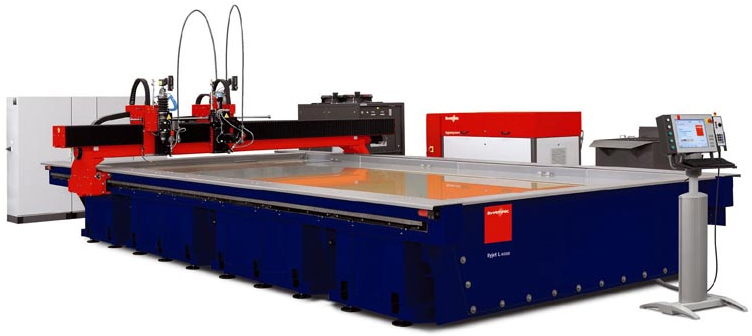

Waterjet Cutter is optimized for handling large sheets.

Bystronic, Inc.    Elgin, IL 60123
Feb 20, 2008 Suited for steel service centers, Byjet L series features modular base frame that can be expanded in 6.5 ft increments and cutting areas from 6.5 x 10 ft (Byjet L 2030) to 52.5 x 10 ft (Byjet L 16030). All models include 2 High Precision Technology abrasive waterjet cutting heads with automatic head spacing, height sensing, and collision protection. Optional third and fourth cutting heads are available, and removable cassettes facilitate and accelerate material loading and unloading.

Press Brake features hydraulic piston control.

Bystronic, Inc.    Elgin, IL 60123
Jan 17, 2008 EP Series is equipped with independent Y1 and Y2 hydraulic piston control along with Cybelec DNC 880 2D control, which is capable of automatically selecting bend sequences. Designed for American tool integration, press brake can accommodate all types of punches and dies with appropriate adapters. EP features hydraulic crowning that is capable of delivering exact bend angles across entire length of bed.

Cutting Systems employ laser and water mediums.

Bystronic, Inc.    Elgin, IL 60123
Jan 17, 2007 Occupying 20 ft², ByVention laser cutting machine handles material up to 5 x 10 ft and is capable of round-the-clock operation. It has integrated safety system and operating area completely accessible without photoelectric barriers. Also available, Byjet waterjet cutting machine is available with shuttle table and swing arm loader as well as rotary axis. It supports multiple cutting heads and employs constant height sensing feature. Parts are produced with minimal kerf angles.

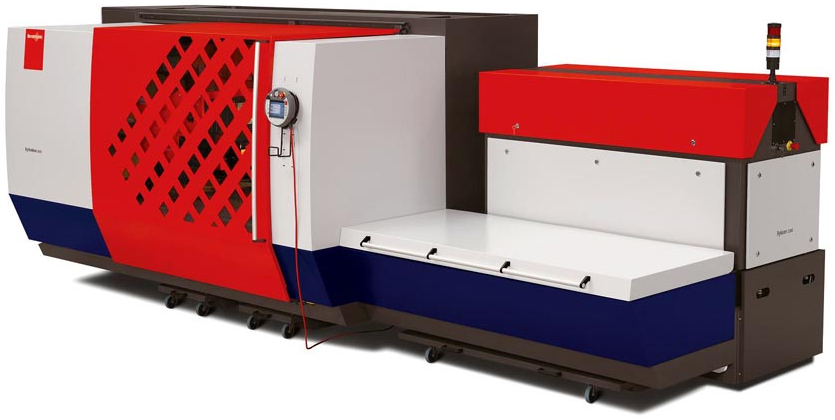

Laser Cutting Machine has footprint of 20 x 20 ft.

Bystronic, Inc.    Elgin, IL 60123
Nov 29, 2006 With automatic machine prompts and touch screen, ByVention laser cutting machine is suited for various standard-sized metal sheet formats up to 5 x 10 ft. Control cabinet and laser source are integrated into machine frame to form single unit, and cooling unit and dust collector are also combined. Cut parts are automatically transported from cutting area, reachable from front of machine through sliding door, and are available to user during cutting process.
