Metal Pushbutton Switch offers white ring and point illumination.

Schurter, Inc.    Santa Rosa, CA 95403
Mar 29, 2013 Available with integrated 5, 12, and 24 V resistor options, MSM series offers white illumination to supplement existing red, green, yellow, and blue options. Construction includes stainless steel housing and actuator, with micro switch snapped into housing with 19, 22, or 30 mm mounting diameter. Switching voltage ratings range from 5 Vdc to 250 Vac, and current ratings vary from 0.1–10 A. Operating from -25 to +85°C, IP67-rated switch also carries impact resistance rating of IK07.

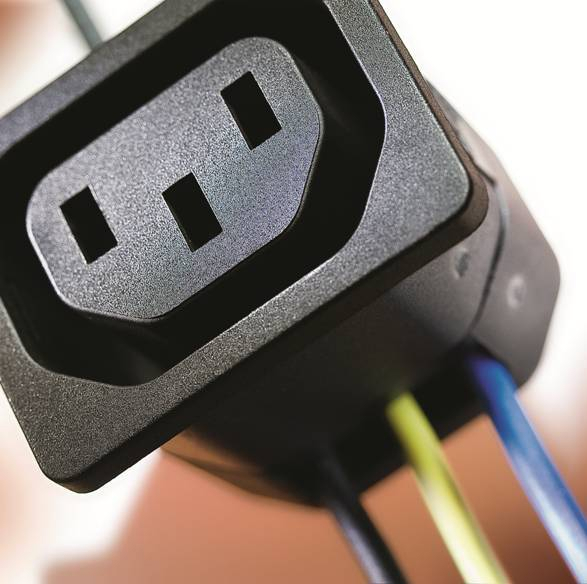

IEC Appliance Outlet with IDC Terminals accepts 14 gauge wire.

Schurter, Inc.    Santa Rosa, CA 95403
Mar 28, 2013 Suited for use in PDUs and other equipment where multiple outlets are banked in series, 6610 appliance outlet lets wires be bussed across terminals and thereby connect common terminals simultaneously. IDC terminals are arranged either along or across connector pin axis, allowing for horizontal or vertical mounting orientation. Wires are pressed into place with protective back cover, and outlet versions with combination IDC and quick-connect or solder terminal are also available.

Appliance Inlet withstands temperatures to 155°C.

Schurter, Inc.    Santa Rosa, CA 95403
Feb 08, 2013 Available in snap-in and screw-on mounting with solder, quick-connect, or screw terminals, 1681 series IEC 60320 style C22 inlet is ENEC approved for 16 A at 250 Vac and cCSAus approved for 21 A at 250 Vac. Inlet has max pin temperature of 155°C and operating temperature range of -25 to +155°C. Product meets protection class covered in IEC 60320 as well as requirements of IEC 60335-1.

High-Current DC Interference Filter serves PV systems.

Schurter, Inc.    Santa Rosa, CA 95403
Jan 23, 2013 Offered without ground capacitors to safely prevent any leakage of current to ground, FMER SOL series is designed for use on DC side of inverter in photovoltaic (PV) and other DC systems. Products are designed for rated currents from 25–2,300 A with standard ambient temperature rating of 55°C. Series is also rated at 75°C ambient up to 1,200 Vdc with corresponding current de-ratings. Screw clamps are offered for types up to 150 A and copper bars are offered for types upwards of 250 A.

Compact Filtered Inlet withstands high-temperature environments.

Schurter, Inc.    Santa Rosa, CA 95403
Jan 10, 2013 Rated at 155°C, C22F appliance inlet with power line filter suits equipment requiring electrical components rated for high ambient temperatures. Chamfered shape of inlet differentiates its style according to IEC 60320 C22, and power line filter is rated for ambient temperatures up to 16 A at 75°C and 20 A at 65°C. Filters are available in standard and medical versions suitable for applications according to IEC 60950 and IEC 60601-1. Product is also available without filters.

IEC Power Inlet, Line Filter delivers optimal attenuation.

Schurter, Inc.    Santa Rosa, CA 95403
Oct 24, 2012 Designed for currents up to 15 A, 5123 series offers attenuation and dimensions that meet demands for interference suppression in IT, medical, test and measurement, as well as industrial equipment. Combination power entry module integrates EMC filter directly at line input, providing optimal effect on electromagnetic compatibility, while broad metal flange optimizes contact area, which maximizes filtering and shielding effects. Snap-in, screw-in, or studded assembly options are available.

IP65 Circuit Breaker is offered with antibacterial cover.

Schurter, Inc.    Santa Rosa, CA 95403
Sep 13, 2012 Available in 1-, 2-, and 3-pole versions with illuminated or non-illuminated rocker switch, TA35 features thermal overload protection and is offered with protective cover that is antibacterial effective according to ISO 22196. IP65-rated product, which is cURus and VDE approved, withstands use of common cleaning agents and disinfectants, is designed for snap-in mounting in panels from 1–4 mm thick, and comes with 6.3 x 0.8 mm terminals. Rated currents range from 50 mA to 20 A.

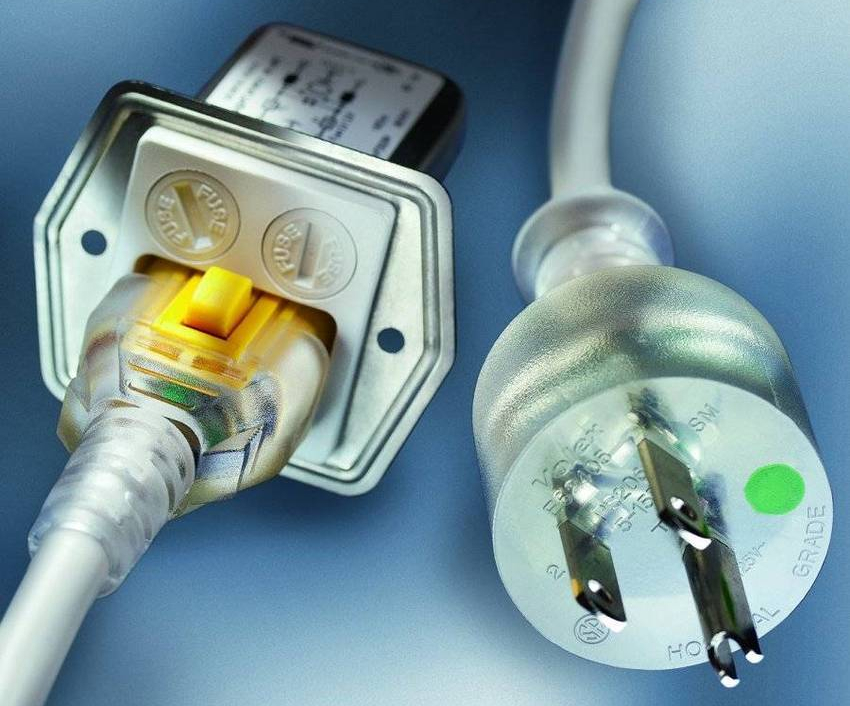

Hospital Grade Power Cordsets ensure patient safety.

Schurter, Inc.    Santa Rosa, CA 95403
Sep 11, 2012 In medical/dental applications, V-Lock power cords protect against unintended equipment disconnect. Plug end of cordset meets UL 817 requirements, and solid pin construction and extra-safe wiring are visible through transparent material. Lever on cord connector latches into notched power inlet, and ground contact has make-first and break-last configuration. Detachable hospital grade power cords come with EN/IEC 60320 C13 and C19 cord connectors on equipment end and NEMA 5-15 on plug end.

High Voltage Fuse offers overcurrent protection to 500 Vac.

Schurter, Inc.    Santa Rosa, CA 95403
Jul 24, 2012 With breaking capacity of 1,500 A at rated voltage, Series SHT 6.3 x 32 mm Fuse safeguards electronic systems and operators in event of catastrophic short circuit incident. Unit is available in 10 rated currents ranging from 1-8 A. In addition to panel or board mount clips and holders, fuse is available with pigtail leads for direct mounting to PCB. RoHS-compliant device, operating from -40 to +85°C, is suited for HVAC systems, photovoltaic systems, frequency converters, and power electronics.

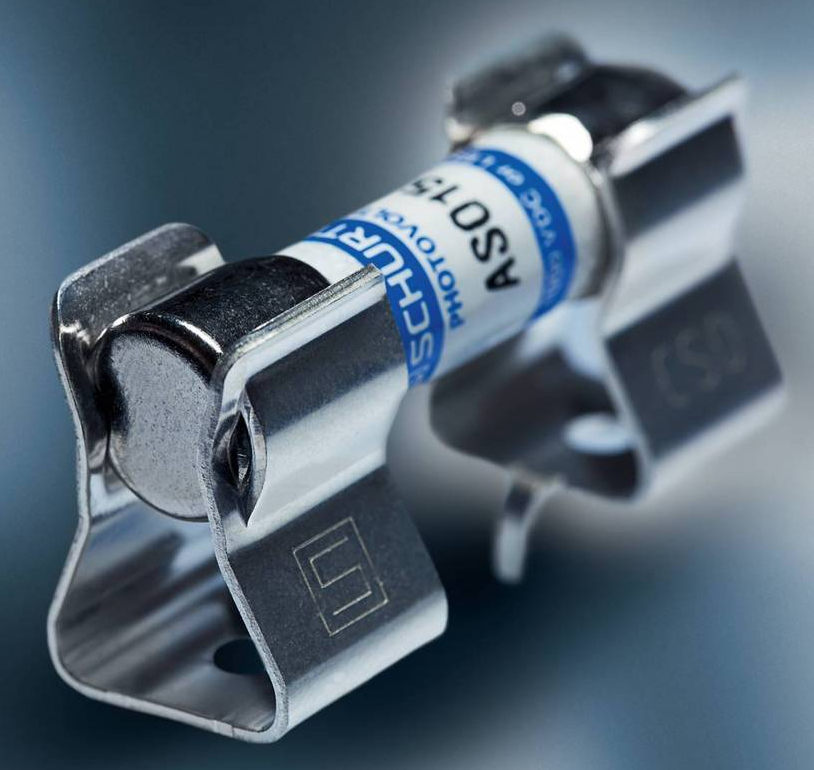

Heavy-Duty Clip accommodates high-voltage fuses.

Schurter, Inc.    Santa Rosa, CA 95403
Jun 29, 2012 Intended for use with 38 x 10.3 mm dia or 85 x 10.3 mm dia fuses, RoHS-compliant and cURus-approved CSO clip is rated for applications with voltages to 1,500 V AC/DC and currents to 32 A. Characteristics meet/exceed need for PV system voltages, and copper alloy and clamping force lend to minimal power loss. While solder type version allows direct mounting on PCB via through-hole technology, screw/rivet version provides additional flexibility for basic designs.
