Latest New Product News from J. W. Winco, Inc.
Steel Workholding Pins are designed to facilitate insertion.J. W. Winco, Inc. New Berlin, WI 53151
May 13, 2013 Offered in metric sizes with diameters from 10–25 mm, RoHS-compliant series GN 6322 features tempered, hardened steel pin and ball-type shoulder. Latter facilitates insertion into bore for product's intended purpose of positioning. While Type B is cylindrical in shape, Type C has flattened sides on pin. Flattened design provides tolerance for spacing of 2 bores. Another application of this design is fixing parts to be positioned in one direction only.

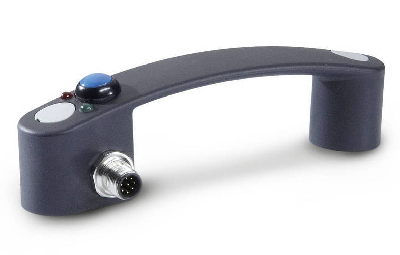

Cabinet U-Handles feature power switching function.J. W. Winco, Inc. New Berlin, WI 53151
May 01, 2013 Available in metric sizes, EN 628.4 Cabinet U-Handles feature pushbutton that allows two switching positions. Red status LED is lit during normal function. Pressing pushbutton triggers control pulse that activates certain door functions, and LED changes to green. Made of Polyamide PA with dark gray matte finish, RoHS-compliant ergonomic handles have arch shape and round cross-section. Two versions enable cable to be connected on bottom or side of handle.
Ball Lock Pins accelerate component connection/securement.J. W. Winco, Inc. New Berlin, WI 53151
Apr 19, 2013 Available in metric sizes, GN 113.8 Heavy Duty Ball Lock Pins with Plastic T-Handle are used for connecting and securing components or work pieces. Pin is fabricated of heavy-duty, hardened, and abrasion-resistant stainless steel, which lends to load capacity. T-handle is black plastic (Polyamide PA), while pin, balls, and spring are all stainless steel. Typical application is locating pins that have to be regularly moved in and out of position.
Steel Seating Pins can also function as feet.J. W. Winco, Inc. New Berlin, WI 53151
Apr 02, 2013 Available in metric sizes, series GN 6321.1 Seating Pins are RoHS compliant and fabricated of tempered, hardened steel. These products, in addition to their use in positioning parts of jig assembly, can also be used as feet. Pin heads range in diameter from 6–40 mm, and pin lengths range from 6.5–20 mm.
Metric Size Knobs suit corrosion-free applications.J. W. Winco, Inc. New Berlin, WI 53151
Mar 15, 2013 Made of matte black, glass-filled nylon plastic, RoHS-compliant GN 6336.10 Hand Knobs function well when corrosion is to be avoided, such as in medical, food, and cleanroom applications. Threaded stud is made of 316 stainless steel with brass or plastic tip, which prevents indentations or other damage from occurring. Knobs are available in diameters from 25–50 mm, with stud threads ranging from M5–M10, and lengths from 10–55 mm.

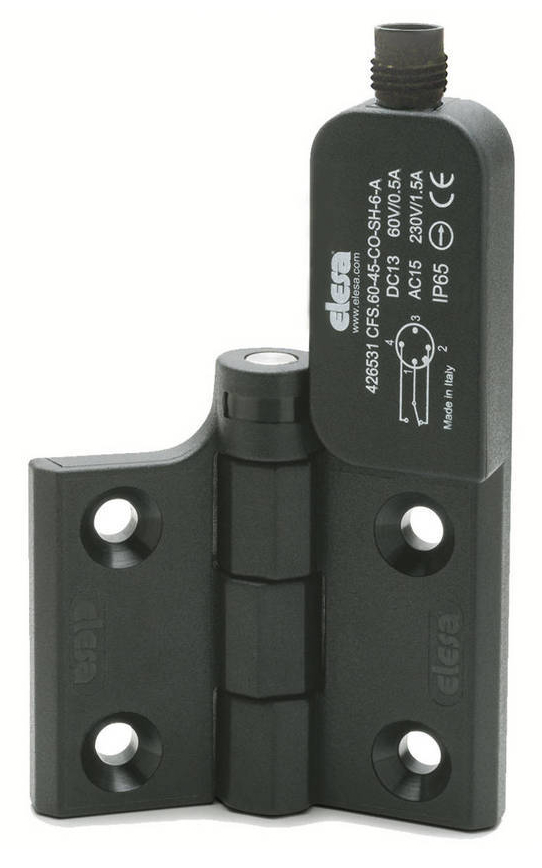

Hinges feature integrated safety switch.J. W. Winco, Inc. New Berlin, WI 53151
Mar 04, 2013 Designed for accident prevention, series EN 239.1 and EN 239.2 hinges with integrated safety switch come in metric sizes. Safety circuit is disrupted as soon as door is opened, and function of tamper-proof, forced-opening safety switch cannot be altered. While hinges are technopolymer plastic (Polyamide PA) with black matte finish, hinge pin is 303 stainless steel. Hinges with countersunk screw holes or with slotted holes are available with switch on right or left side.
Shoulder Screws come in metric sizes.J. W. Winco, Inc. New Berlin, WI 53151
Feb 19, 2013 Suitable for variety of construction uses, ISO 7379 Hardened Steel Shoulder Screws are made of blackened steel with tensile strength of 1,200 N/mm². RoHS-compliant screws come in range of head sizes from 6–24 mm diameter, with threads from M5–M20, and shoulder lengths from 10–100 mm.
Steel Feet support jig construction.J. W. Winco, Inc. New Berlin, WI 53151
Feb 13, 2013 Available in metric sizes, Series DIN 6320 Jig Feet are normally used in jig construction if neither self-aligning support nor axial adjustment is required. RoHS-compliant units are made of 1.0718 steel rather than quenched and tempered steel as specified in official DIN 6320 standard sheet. Feet range in height from 10–50 mm with thread sizes from M6–M12.
Retaining Cables are available with key rings, fixing loops.J. W. Winco, Inc. New Berlin, WI 53151
Feb 01, 2013 Available in lengths from 150–500 mm, GN 111.2 Stainless Steel Retaining Cables are offered with 2 key rings, mounting loop, and key ring or with 2 mounting loops. Cables are American Standard Series 301 stainless steel and coated with clear plastic (PVC), and mounting loops and 14–30 mm dia key rings are also of American Standard Series 301 stainless steel. Static load limits for cables alone are 1,800 N, which reduces to 50–120 N with key ring added.

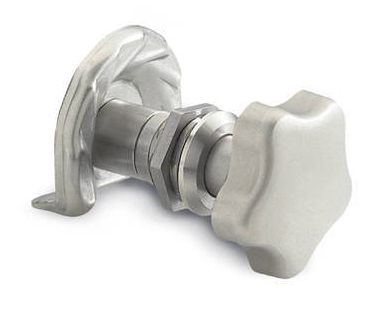

Door Locks come in stainless steel and metric sizes.J. W. Winco, Inc. New Berlin, WI 53151
Jan 16, 2013 With drawing range of 10 mm and 10 clamping ranges from 17–65 mm, RoHS-compliant GN 119-NI Door Locks are offered with star knob, triangular spindle, square spindle, or double bit spindle. Locking is achieved by turning door lock clockwise, and operating spindle is fitted with O-ring to prevent penetration of water. Lock housing, spindle, and spacer are 303 stainless steel; star knob is 304 stainless steel, shot-blasted finish; and cam is 304 stainless steel.
Click below for more Product News from J. W. Winco, Inc.
