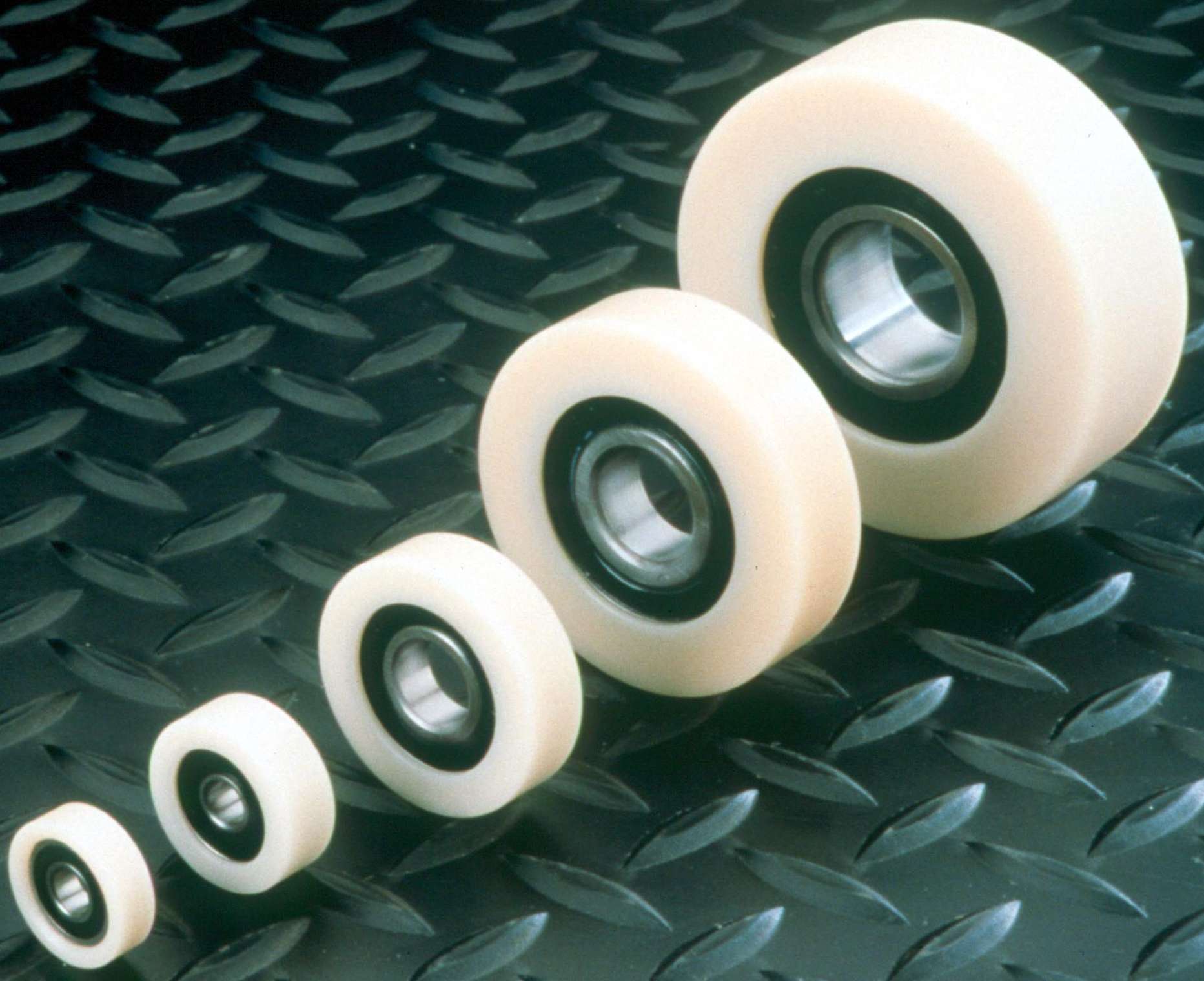

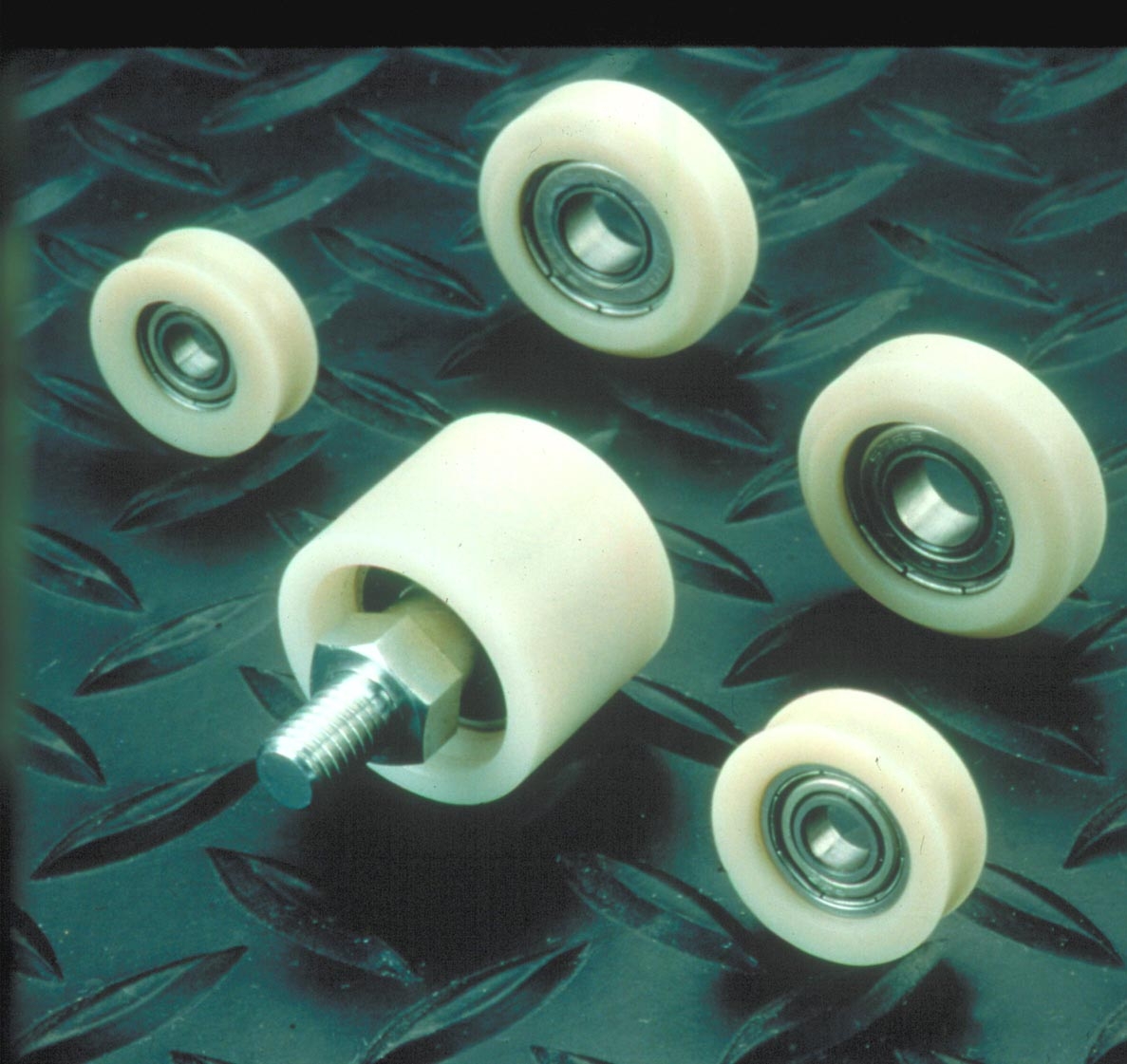

Rollers and Cam Followers offer alternative to metal rollers.

Intech Corp.    Closter, NJ 07624 1333
May 26, 2004 Self-Lubricating Power-Core curved, U- and V-shaped rollers will not wear out rail, and achieve noise reduction of 6–10 dBa over metal rollers. Precision machining provides minimal run-out, while tire material absorbs shock to provide smooth rolling motion and is resistant to chemicals and corrosion. Power-Core rollers operate in temperatures ranging from -60 to +140°F and are suitable for indoor and outdoor use.

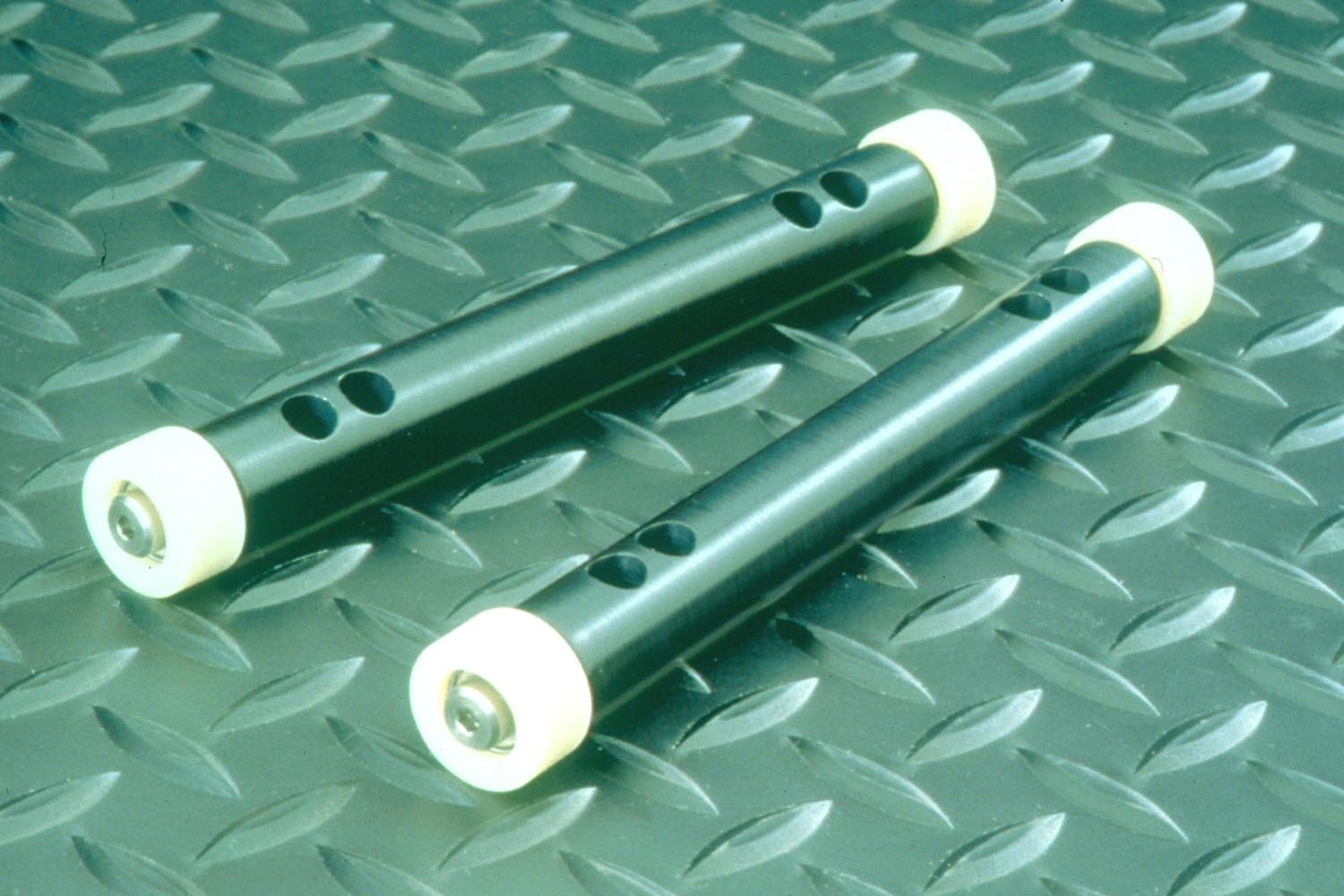

Composite Roller exhibits low rolling resistance.

Intech Corp.    Closter, NJ 07624 1333
Mar 08, 2004 Non-hygroscopic Power-Core roller, with integral roller bearing, runs quietly and absorbs vibration and shock without placing undue wear on rail. Snap-in design ensures snug bearing fit, and composite material features integral elasticity that provides structural resistance to developing flats under static loads. Roller retains dimension and tight bearing fit in all weather conditions. Roller to shaft attachments are machined directly into metal hub.

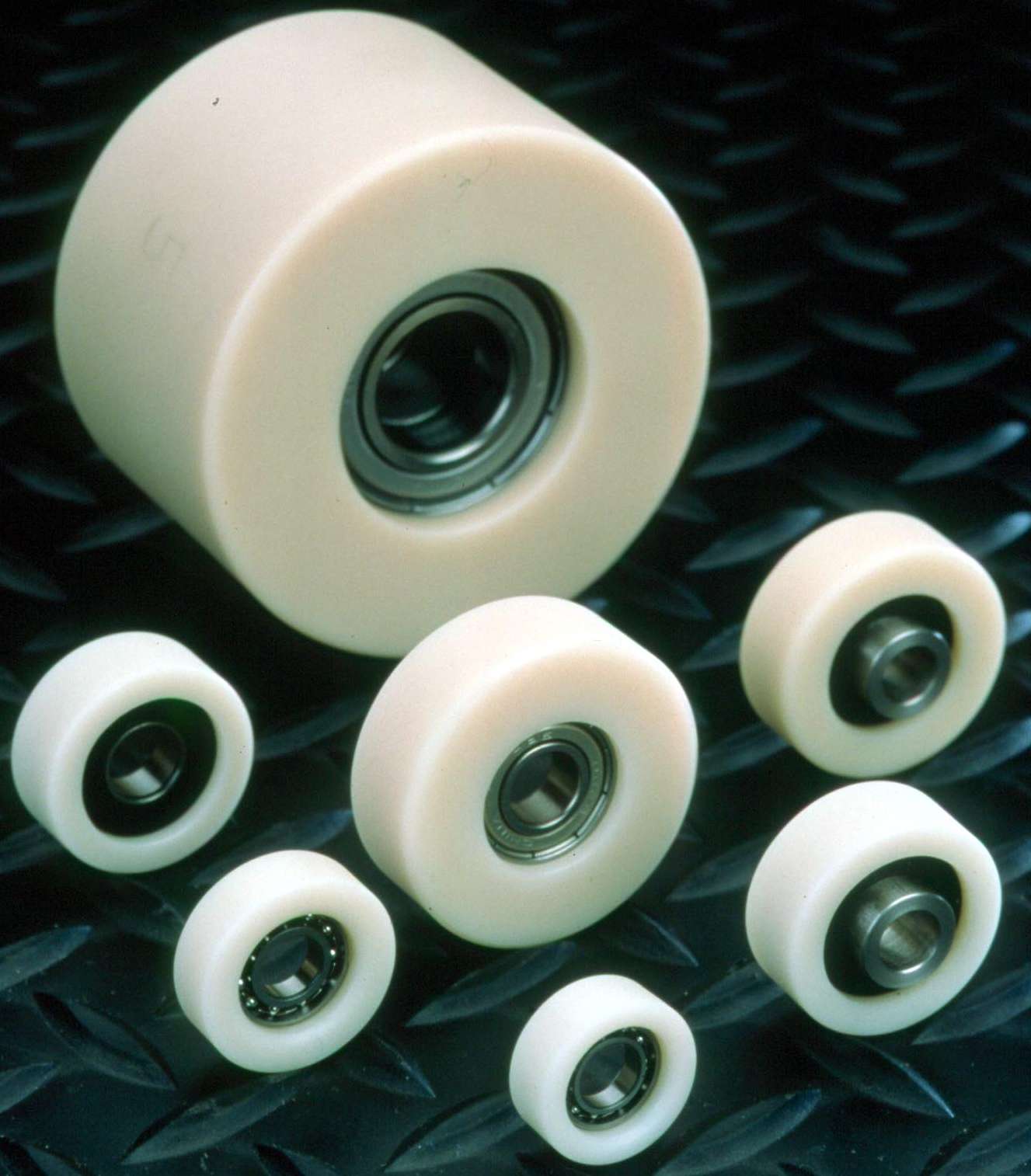

Rollers offer non-lubricated performance.

Intech Corp.    Closter, NJ 07624 1333
Feb 02, 2004 Power-Coreâ„¢ rollers feature crystalline structure that is resistant to flow under static load and does not absorb moisture. Rollers and cam followers retain bearing fit from -40° to +160°F, retain elasticity in sub-zero temperatures, and reduce noise. Assembled from precision-machined plastic tires, rollers are offered with load capacities from 50–230 lb. Trolley assemblies feature aluminum tract and trolley systems with attachments.

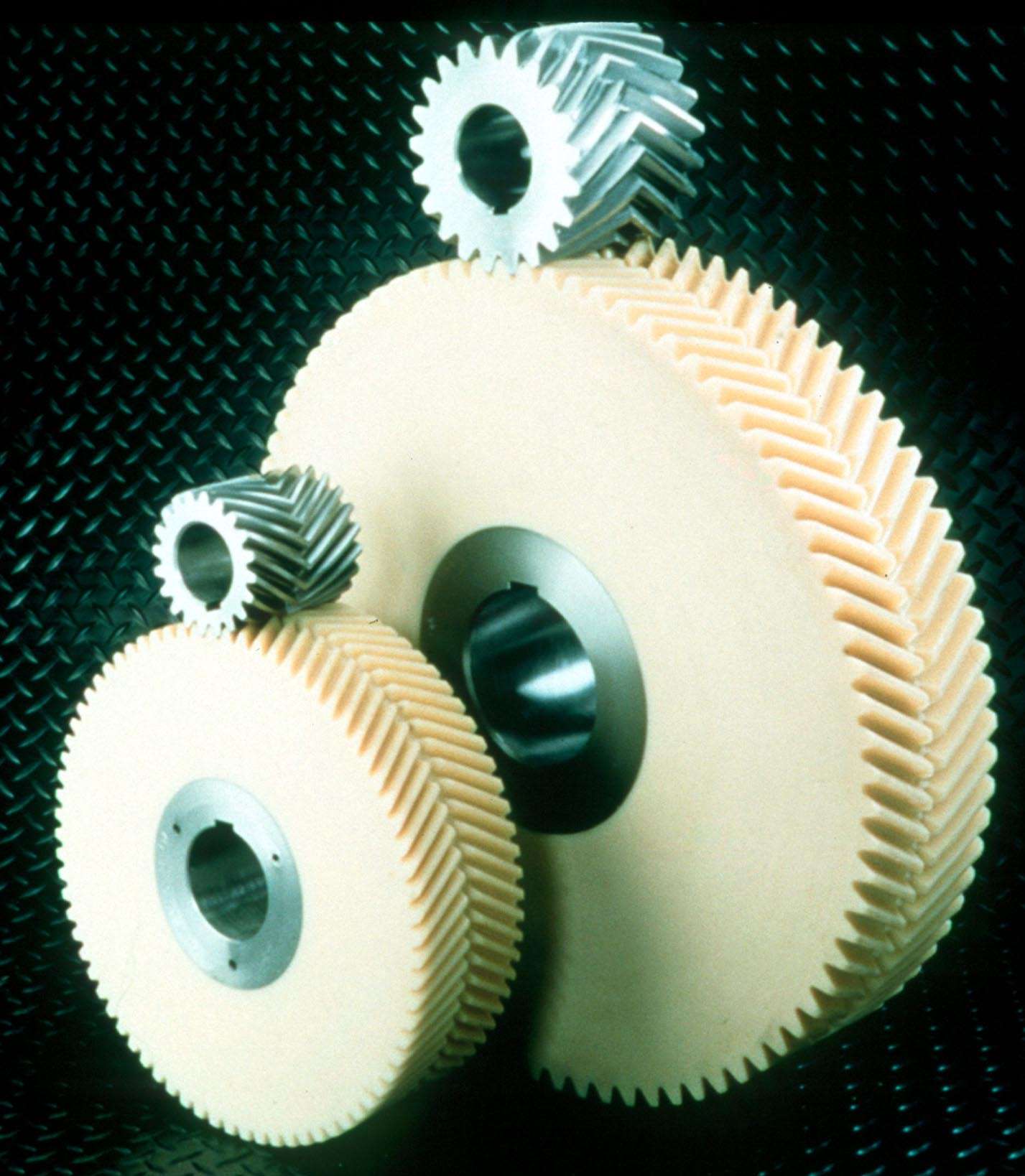

Hybrid Gears solve noise and premature failure issues.

Intech Corp.    Closter, NJ 07624 1333
Oct 17, 2003 Power-Core™ Gears feature crystalline, non-hygroscopic, composite material that is gravity-cast around metal core. Gear teeth are hobbed into outer plastic portion of gear material. Bore machined into metal core secures temperature-resistant, metal-to-metal shaft connection. Metal core helps restrain thermal expansion of plastic portion of gear. It comes in carbon steel, stainless steel, or aluminum with OD from 0.75–8 in. in 3/8 in. increments.

Composite Wheels operate in clean rooms.

Intech Corp.    Closter, NJ 07624 1333
Mar 26, 2002 Power-Core wheels eliminate possibility of metal particulate contamination in clean room operations. Composite wheel is comprised of two components: machined plastic tire and roller bearing. Tire material has high resistance to flow under load and retains tensile and flexural strength as well as dimensions in shock load applications. Bearings use clean room approved grease. Wheels eliminate need for lubrication, reduce maintenance, and eliminate corrosion.

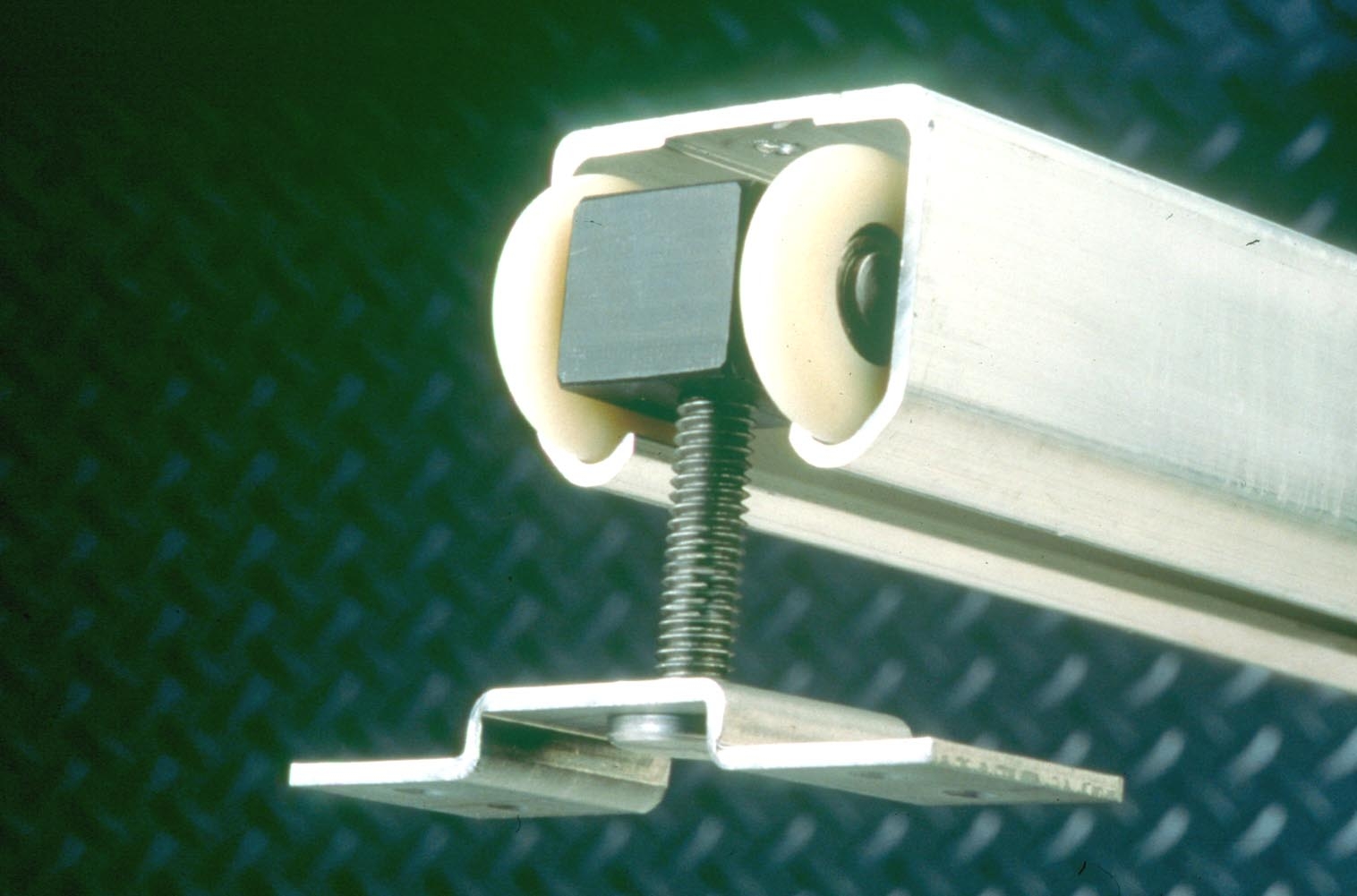

Roller makes it easy to open and close doors.

Intech Corp.    Closter, NJ 07624 1333
Mar 15, 2002 Power-Core(TM) roller and trolley system is suitable for precision sliding doors and indoor/outdoor architectural partitions. Roller is assembled using thermotechnology, rather than injection molding, and is combined with precision roller bearing to provide quiet and smooth ride. It resists flat development, will not absorb moisture, does not wear out rail, carries high loads and retains strength over temperature range of -40 to 140 deg F.

Composite Rollers replace steel cam followers.

Intech Corp.    Closter, NJ 07624 1333
Feb 05, 2002 Quiet-running, self-lubricating Power-Core rollers work in demanding, load-bearing applications where noise, moisture, shock, temperature and rail wear present challenging operating environment. Roller includes long-wearing composite tire with stress-free crystalline structure that resists flattening from compression under static loads. Deformation resistance and internal elasticity provide vibration and shock dampening under dynamic loads.

Rollers are custom made for each application.

Intech Corp.    Closter, NJ 07624 1333
Nov 28, 2001 Power-Core rollers have composite tires installed over roller or needle bearings. Rollers are custom manufactured to meet specs derived by engineering analysis of load data. Calculations include Hertzian stress and linear speed that enable engineers to make design recommendations. Applications include clean room conveyors, linear positioners, sliding door hardware and automatic doors for motor vehicles, trains, incubators and storage systems.
