Automotive Fuses range from 20-80 A.

NTE Electronics, Inc.    Bloomfield, NJ 07003
May 14, 2013 Color-coded by rated currents, MAX Automotive Fuses feature max rated voltage of 42 V. Fast-acting, RoHS-compliant units protect circuits in wiring harness, which is usually found under hood, in fuse panel, or supplementary panel near battery. Primarily used in domestic cars, MAX automotive fuses also have some applications in imported models. Fuses are especially suited for high-end automotive audio systems.

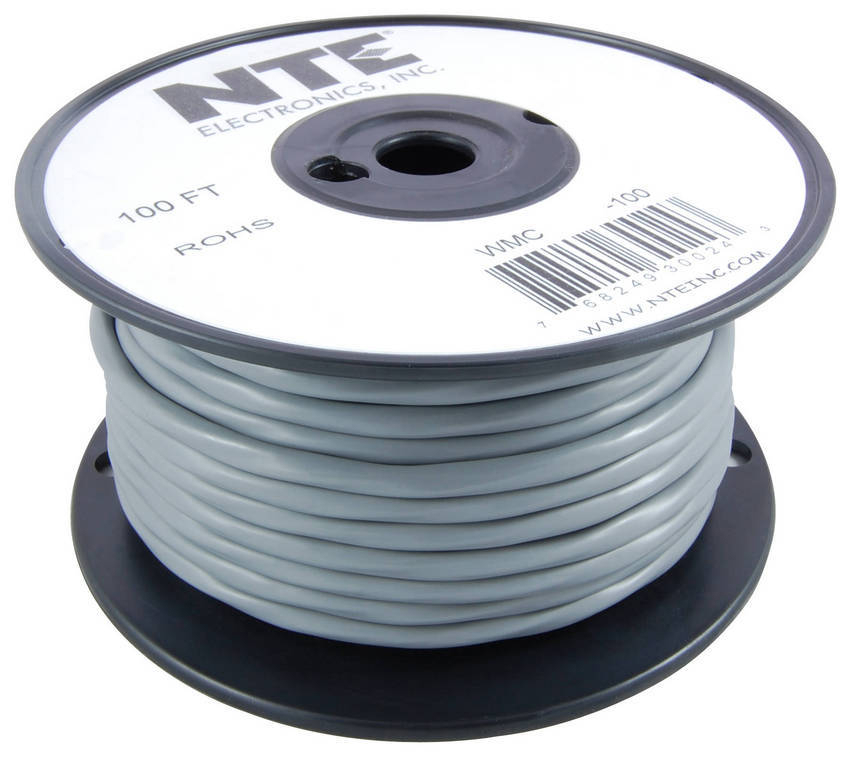

Multiconductor Cable brings reliability to diverse applications.

NTE Electronics, Inc.    Bloomfield, NJ 07003
May 06, 2013 Used for data transmission, multi-conductor cable features flexible stranding that improves soldering connections and facilitates termination handling. Cable comes in 100 ft spools in unshielded (2, 3, or 4 conductor) PVC or shielded (2 or 3 conductor) polyethylene featuring foil shield. Both types feature chrome gray PVC jacket. Along with 18 and 22 gauge availability, features include 300 V working voltage rating, 20 to 75°C temperature range, and tinned copper conductor.

Weatherproof Relays and Sockets offer 50 A current rating.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Dec 19, 2012 Featuring .250 in. quick connect terminals, R51 Series is suitable for use in automotive, marine, tractor, lawn mower, and recreational vehicles. Flange mount units offer SPST-NO and SPDT contact arrangements and 12 and 24 Vdc coil voltages. Available in 4- and 5-pin versions with 12 in. wire leads, socket Models R95-190 and R95-191 contain rubber seal to guarantee full weatherproof assembly.

Colored Split Loom cleanly organizes and protects cables.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Dec 13, 2012 By holding, protecting, and concealing cables, harnesses, hoses, and wires, colored split loom creates color-coded bundles that help keep electronic equipment in order and helps prevent tangling, snagging, and equipment failure. Construction is of flexible polyethylene, and slit automatically closes after installation. Protecting against abrasion, punctures, vibrations, and corrosive fluids, product comes in 4 colors, 6 diameters from ¼–1 in., and 3 lengths from 5–100 ft.

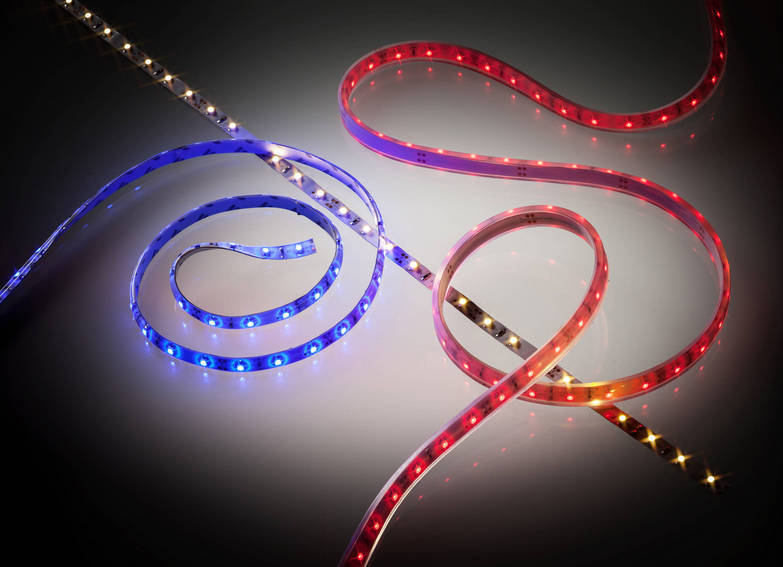

Flexible LED Strips come in various styles and colors.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Sep 13, 2012 Featuring LED sizes 3528 and 5050, Flexible LED Strips come in non-waterproof (IP20), water-resistant (IP65), and fully submersible water proof (IP68) types as well as several colors: red, amber, blue, green, white, warm white, and RGB. RoHS-compliant products, offered in 3 LED densities and dimmable to 6 Vdc, have 3M adhesive back (excluding IP68 types) and 120° viewing angle. RGB strips are compatible with soft touch remote control, which offers color mode and brightness options.

Photovoltaic Fuses protect solar panel from shorts.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Mar 02, 2011 UL-Recognized to safely interrupt circuits up to 1,000 Vdc, 74-10FC Solar Protection Fuse series can safely protect photovoltaic (PV) modules and their conductors from reverse over current conditions. These midget fuses, which measure 10 x 38 mm, will interrupt low over-currents associated with faulted PV string arrays (reverse current, multi-array faults), are rated 1-20 A, and comply with RoHS standards.

Video Camera features removable LCD color monitor.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Apr 14, 2009 Incorporating 2 LEDs and 3.28 ft IP67 shaft, ECG® wireless video inspection camera (WIC-1) suits HVAC inspection, automotive inspection, cable routing, electrical and general contracting, home theater installation, plumbing inspection. Measuring 2.4 in., LCD monitor can be kept up to 30 ft. away for monitoring. Video Out allows user to connect to TV/monitor or projector to view and/or record video. Accessories included are mirror, hook, and magnet tips.

LED Tubing has approximately 50,000 hr life.

NTE Electronics, Inc.    Bloomfield, NJ 07003
May 23, 2008 Available in blue, green, red, white, amber, and red/white/blue colors, LED tubing contains 15 bright LEDs that are encased in flexible clear encapsulate. Measuring approximately 1 ft long, up to 15 individual tubes can be connected in series and powered by one 12 Vdc power supply. Available accessories include multi-strip surface mount connector, surface mount multi-strip L connector, rotatable mounting clip, multi-strip electrical connector, and power supply adapter.

LED Flashlight features compact size.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Jul 26, 2007 Containing 14 ultra-bright LED lights that provide beam of intense white light, LED flashlight has 100,000 hr life. Available in 3 metallic colors including pewter (FS-03PW), blue (FS-03BL), and red (FS-03RD), waterproof unit comes with non-slip grip, aluminum alloy case, and 3 AAA batteries. Suited for emergency, home, auto, camping, and fishing applications, it can be stored in drawer, glove compartment, emergency kit, or tool box.

Digital IR Thermometer suits range of applications.

NTE Electronics, Inc.    Bloomfield, NJ 07003
May 31, 2007 Supplied in metal alloy housing, pocket-sized ECG® DIT-205 performs pushbutton noncontact surface temperature measurements from -27 to +428°F (-33 to +220°C) and displays results in user-selectable temperature units on its LCD. RoHS-compliant, pen-style unit features 1:1 optics (distance-to-spot size ratio) and does not use laser beam. Powered by 2 LR44 lithium batteries, thermometer offers accuracy of ±2% of reading, or ±2°C, with 0.1° resolution.
