Mobile Pump/Tank Cart handles caustics and ultrapure fluids.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Nov 01, 2011 Featuring non-metallic design, Mobile Pump/Tank Cart transfers wastewater and caustic/acid chemicals with no corrosion and ultrapure fluids with no contamination. All fluid contact surfaces are solid polypropylene, polyethylene, PVC, or other inert thermoplastic. Utilizing rotor mounted on eccentric shaft, self-priming Flex-I-Liner® CC-PY12B pump pushes fluid trapped between elastomer liner and solid thermoplastic body block at flows to 2 gpm, pressures to 25 psig, and temperatures to 185°F.

Solar Powered Pumping System feeds water treatment chemicals.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Feb 08, 2011 Featuring non-metallic, peristaltic pump, Solar Powered Chemical Dosing System provides corrosion-free transfer of caustic/acidic treatment chemicals from thermoplastic storage tank to water and wastewater containment facilities. Self-priming pump, with flows to 2 gpm and pressures to 25 psig at up to 185°F, meters fixed volume of liquid over user-programmed time intervals. System uses 40 W photovoltaic solar panel to charge 12 Vdc deep cell battery, which powers pump's 1/6 hp DC motor.

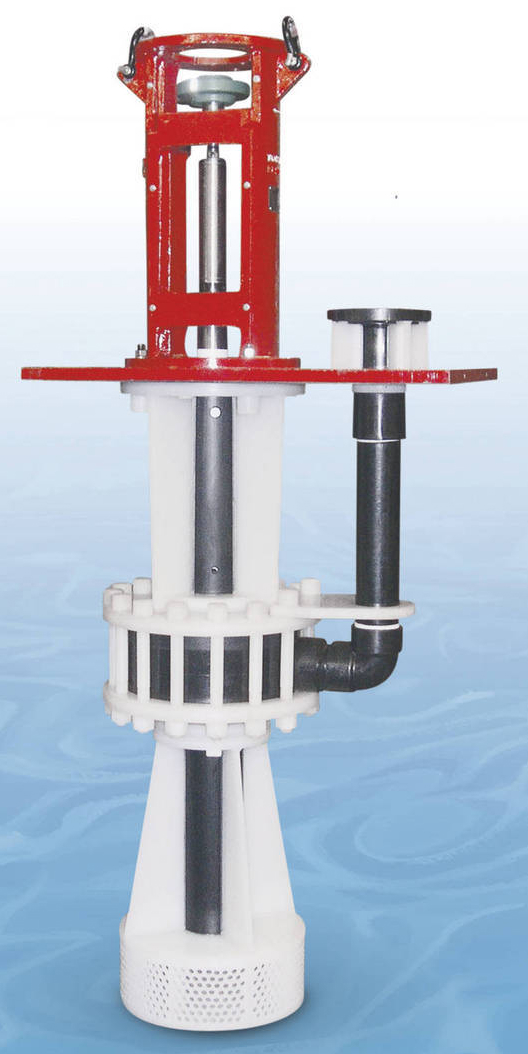

Thermoplastic Sump Pump fits in restricted areas.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Oct 11, 2010 Available in lengths to 4 ft with motors to 125 hp, SUMP-GARD® Model SGK PY800SP handles flows to 800 gpm and heads to 180 ft at temperatures to 275°F. Close-coupled, cantilevered shaft minimizes headroom requirements and eliminates immersed bearings that are prone to fail in caustic, acidic, and abrasive applications. Design allows run-dry operation with no damage to pump. All wetted components are molded of solid Polypropylene, PVDF, or CPVC, eliminating corrosion, delamination, and wicking.

Close-Coupled Mag-Drive Pump eliminates corrosion.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Aug 23, 2010 Available in sizes from 1.5 x 1 x 6 in. to 3 x 2 x 8 in., CHEM-GARD® CGMC offers flows to 400 gpm at heads to 220 ft TDH. Unit features sealless, single-stage, volute-type centrifugal design with all fluid contact components molded of homogenous polypropylene or PVDF. Chemically inert, abrasion-resistant thermoplastic components eliminate pinpoint porosity, substrate separation, and wear. Available with ANSI centerline suction and discharge, pump accommodates C-face motors.

Thermoplastic Sump Pump has cantilevered, bearingless shaft.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Jun 23, 2010 All wetted components of SUMP-GARD® model SGK-2700 centrifugal pump are molded of solid Polypropylene, PVDF, or CPVC to eliminate chemical attack while minimizing abrasion. Alloy shaft, isolated from fluid contact, transfers torque from 125 hp motor and can employ balanced 14 in. dia impeller. This cantilevered shaft eliminates need for immersed bearings and promotes dependable operation for dry run operation. Flow handling capabilities are rated to 1,200 gpm at heads to 200 ft.

Portable Pump System handles corrosive and toxic chemicals.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Sep 21, 2004 Flex-i-Cart® consists of Flex-i-liner® sealless, peristaltic type, rotary pump furnished with UHMW polyethylene, polypropylene, or Teflon® body blocks, and 1 of 7 different elastomeric linings. Pump and motor assembly is mounted on rubber-wheeled dolly, along with quick disconnect suction and discharge hoses. Able to handle acids, caustics, solvents, and chlorides, system offers flows from 0.33–40 gpm at pressures to 45 psig and temperatures to 250°F.

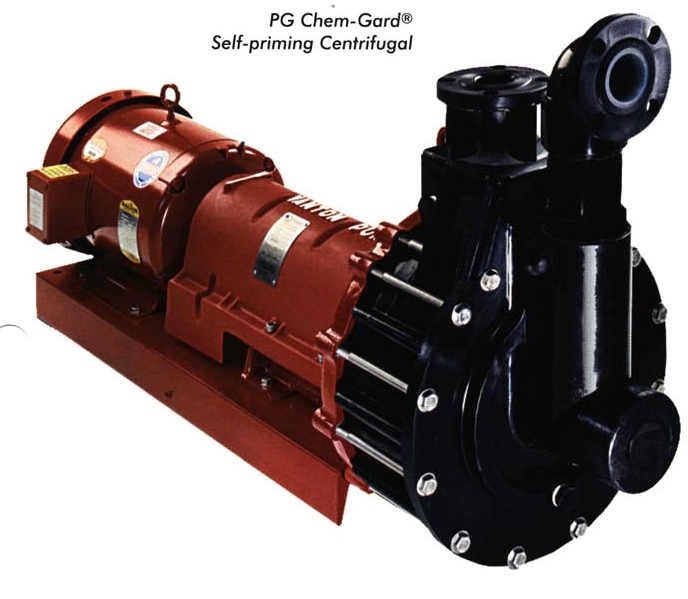

Self-Priming Thermoplastic Pumps are magnetically driven.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Sep 02, 2003 Able to handle corrosive and aggressive fluids, PG/CGM heavy duty, horizontal end suction centrifugal pumps are constructed with thick-sectioned, solid thermoplastic components. All fluid contact structural components are molded from solid homogeneous thermoplastics, which are chemically inert and abrasion-resistant. Products handle temperatures to 275ºF and flows from 5–175 gpm at heads to 175 ft. Features include molded thermoplastic priming chamber and check valve construction.

Centrifugal Pump handles corrosive and aggressive fluids.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Jul 30, 2002 Prime-Gard® nonmetallic, self-priming, horizontal pump offers fluid contact components made of polypropylene or polyvinylidene fluoride. Retractable front-bearing design allows for mechanical seal inspection. Steel shaft is isolated from liquids and gasses by thick-sectioned, chemically inert, thermoplastic sheath. Pump line provides flows from 5 to 175 gpm with heads to 170 ft at temperatures to 275°F.
