OpenVPX 3U AC/DC Power Supply outputs up to 400 W.

Dawn VME Products    Fremont, CA 94539
Oct 15, 2012 Along with universal 85–264 Vac, 47–400 Hz input, PSC-6236 offers current sharing with up to 4 power supplies in system for outputs of 12, 5, and 3.3 V. This VITA 62-compliant, 6-channel power supply comes in models for air cooled, conduction to bulkhead cooled, and conduction to wedge lock cooled applications. Designed to be compliant with MIL-STD-461/-704F/-810F, unit also includes embedded intelligent monitoring and protective control technology.

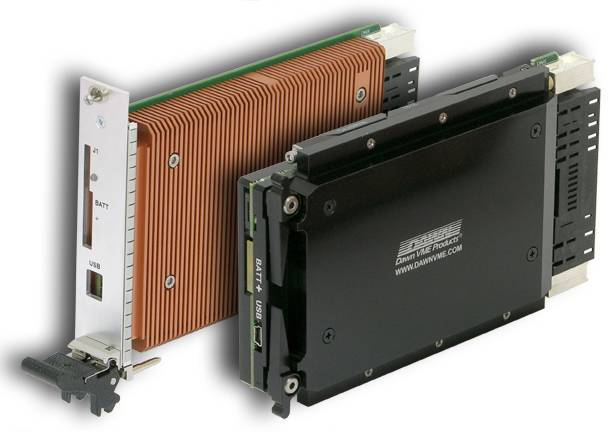

VPX Power Supply (3U) complies with VITA 62 requirements.

Dawn VME Products    Fremont, CA 94539
Aug 01, 2011 With VITA(TM) 62 power connector pin-out and full OpenVPX support, PSC-6234 comes in plug-in or bulkhead mounted models available for air- and conduction-cooled configurations. Six-channel design provides up to 400 W output at 28 or 48 V input on 1 in. pitch, and front I/O panel includes LED status indicator, USB port, and VBAT battery access. Shock and vibration compliant per MIL-STD-810F, product integrates RuSH(TM) Rugged System Health Monitor interfaced to OpenVPX management plane.

VPX 3U Module Enclosure is conduction-cooled, ruggedized.

Dawn VME Products    Fremont, CA 94539
Sep 27, 2010 Designed to MIL-STD-810F, DO-160E, and MIL-STD-461E standards, CCE-3VX4 VPX CUBE is compliant with applicable VITA 46 (VPX), VITA 48 (REDI), and VITA 65 (OpenVPX) specifications. It features 4 slots of 3U VPX on 1 in. pitch, high-bandwidth backplane, and 400 W power supply. Chassis is cold plate base coupled conduction cooled and rated for operation over -40 to +85°C range. Backplane is Fabric Mapping Module overlay-ready and configurable to meet any data plane connection fabric.
