Oil-Injected Screw Compressor generates 29.2 cfm.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Jun 22, 2012 Combining oil-injected screw element and load/unload regulation, 10 hp Model GX 7 EP is suitable for small industrial applications and can be installed directly into workplace. Unit discharges cooling air from top, which permits placement in corner against wall. Available in floor- or tank-mounted variants, Model GX 7 EP features optional integrated dryer.

Screw Compressors are optimized for flexibility, reliability.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Nov 05, 2009 Small oil-injected screw compressors of GA 5-11/GA 5-15 kW Variable Speed Drive (VSD) series optimize free air delivery and offer noise levels as low as 60 dB. Available in ~40 different configurations to meet facility needs, compressors have standard operating range to 46°C. Elektronikon® in GA 5-15 VSD provides remote online monitoring, and control algorithms of VSD create additional average energy savings when compressed air demand is fluctuating.

Hydraulic Breaker offers optimal percussive power.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Sep 14, 2009 Designed with noise and vibration damping, Model MB 750 guarantees sound power level of 118 dB(A). Extra long retainer bars provide maximum contact surface to tool and lower hammer, and can be used on both sides for extended service life. Breaker is optionally available with DustProtector(TM) II 2-stage wiper system, which minimizes penetration of abrasive dust into breaker.

Pneumatic Hammers feature vibro-reduced housing.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Sep 10, 2009 Offering large D-handle and multiple gripping surfaces, chipping hammer Model TEX 05PE is developed for small jobs in soft material, while medium-weight pick hammers, Models TEX 09PE and TEX 12PE, handle medium to heavy applications in brick, concrete, or other hard materials. TEX 05PE comes with standard hexagonal 19 x 50 mm shank, while TEX 09PE and TEX 12PE come in 2 versions, one with standard 22 x 82.5 mm hexagonal shank and one with 25 x 75 mm round shank.

Surface Crawler Drill Rig features modular design.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Sep 09, 2009 Equipped with COP 1840 rock drill offering 18 kW of drilling power, Model ROC T35M employs cylinder-driven aluminum feed system that provides optimal penetration rates and drill steel life. Hydraulic-based control system COP Logic adjusts feed speed, feed pressure, and impact pressure in real time according to rock condition. Maintenance is simplified by all around access to service points and optimized hose management with bulk heads.

Oil-Injected Compressors are designed for energy efficiency.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Apr 07, 2008 Able to operate in ambient temperatures to 131°F, GA Series Oil-Injected Compressors feature compression elements based on asymmetric rotor profiles. Optimization of oil injection, flow, and temperature keeps compression process at coolest possible temperature to minimize thermodynamic loss. Additional energy-saving elements include use of radial fans with Variable Speed Drive regulation, efficiency-optimized motors, and no-loss drains. Air quality is provided by oil removal system and dryers.

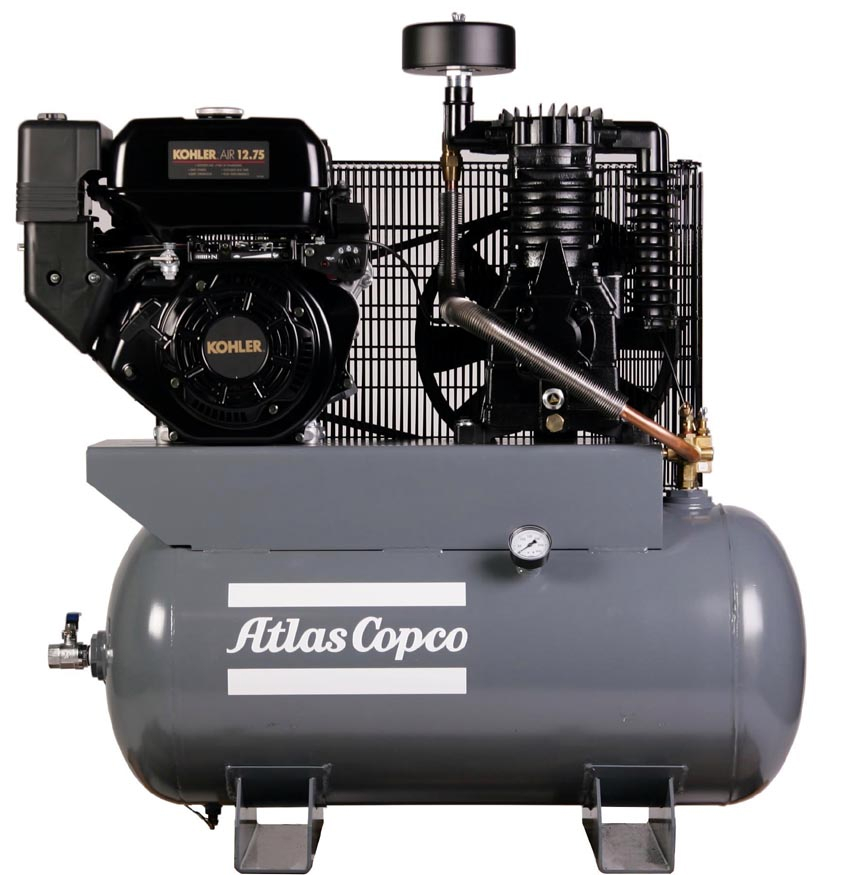

Compressors produce 15.3-70.7 acfm at pressures to 175 psi.

Atlas Copco Compressors, Inc.    Westfield, MA 01085
Oct 30, 2007 KT Series of 5-20 hp, 2-stage reciprocating piston compressors are suited for intermittent use in workshops and in light industrial applications. They are available in variety of configurations including horizontal or vertical tank mounted, duplex horizontal tank mounted, and gas driven tank mounted. For OEM applications, block unit is available by itself and can be combined with choice of driver.

Desiccant Dryers offer capacities from 138-594 cfm.

Atlas Copco Compressors Inc.    Holyoke, MA 01040 2768
Jun 10, 2003 Heatless, twin tower CD65-280 dryers operate up to 232 psig with pressure dewpoints of -40 or -100°F. They feature stainless steel inlet and check valves, fork lift slots and lifting eyes, and reversible inlet and outlet port connections. Simple control method uses switches and gauges for monitoring. Advanced control method, MKIV Elektronikon, comes with purge savings feature using PDP sensors, and allows adjustment of dewpoint and other settings/controls.

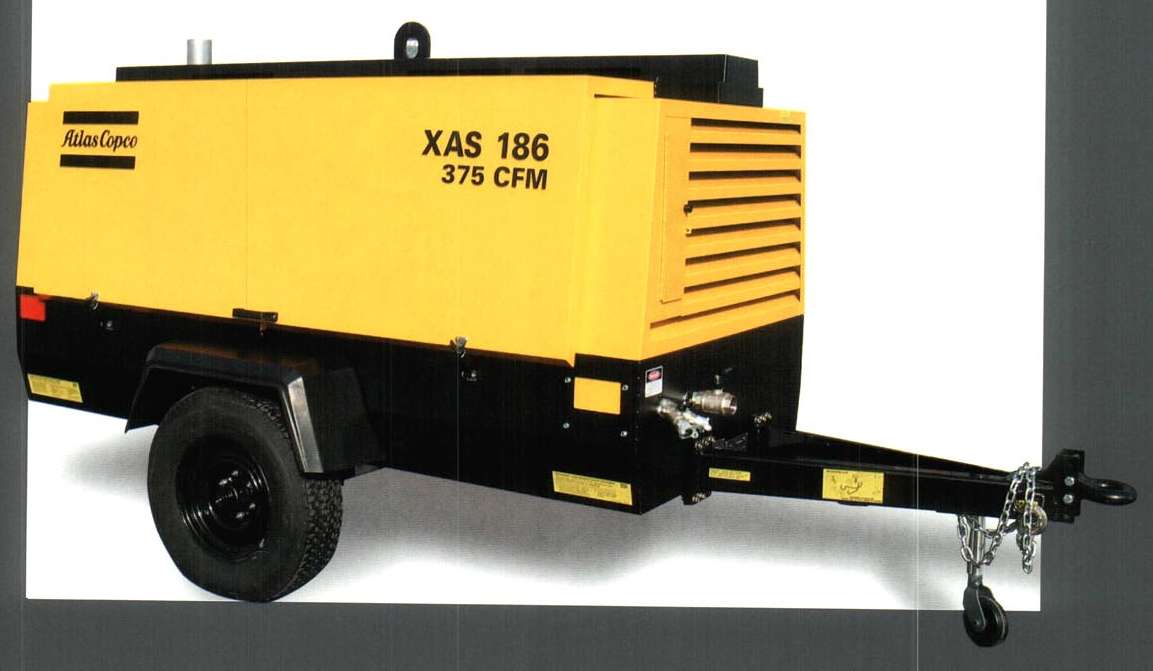

Air Compressor delivers 375 cfm.

Atlas Copco Compressors Inc.    Holyoke, MA 01040 2768
Jun 05, 2003 Single-axle, portable XAS-186JD, powered by water-cooled John Deere 4045 turbocharged diesel engine, weighs 3.47 lb and delivers 375 cfm at 100 psi. Doors grant access to all service points, while integrated toolbox provides storage for breakers and accessories inside lockable canopy. Unit measures 145 x 72 x 71 in. and is also offered in version that delivers 375 cfm at 150 psi working pressure.

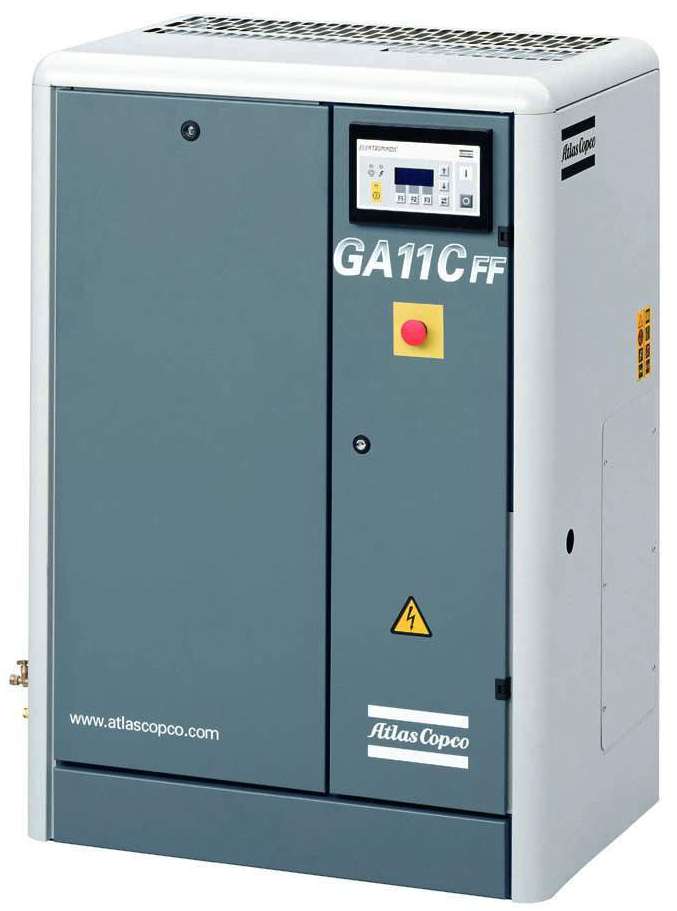

Rotary-Screw Compressor saves space with built-in features.

Atlas Copco Compressors Inc.    Holyoke, MA 01040 2768
Jun 02, 2003 Housed in low-sound attenuated enclosure, Series GA5-11C mounts vertically to provide clean, dry, compressed air. Available with built-in refrigerant air dryer, oil/water separator, inline air filter, and receiver tank, product produces flows from 31.6–164.4 cfm and has 60–188 psig pressure range. Series is available in floor- and tank-mounted models with optional 80 or 120 gal receiver tank.
