Large Capacity Wire EDMs utilize linear motor drive technology.

Sodick    Schaumburg, IL 60173

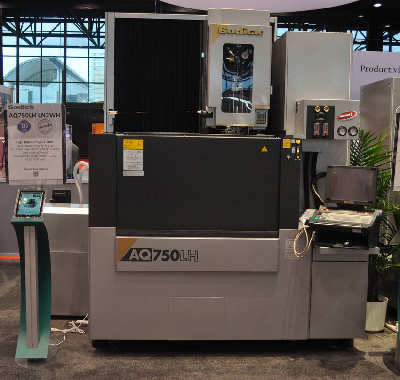

Oct 09, 2012 Featuring fixed table design and X, Y, Z travels of 29.53 x 16.68 x 24 in., Model AQ750LH includes L-cut wire chopper, multi-filtration system, wire jumbo feeder, Super Jet AWT, and vertical sliding tank door. Also available, Model AQ1200LH provides X, Y, Z travels of 47.24 x 31.50 x 24 in. Both offer UV axis travels which allow extreme taper angles up to 45° to be machined to full Z capacity of model. To prevent against operator error, control incorporates collision protection.

Sinker EDM Machine accommodates workpieces up to 11,000 lb.

Sodick    Schaumburg, IL 60173

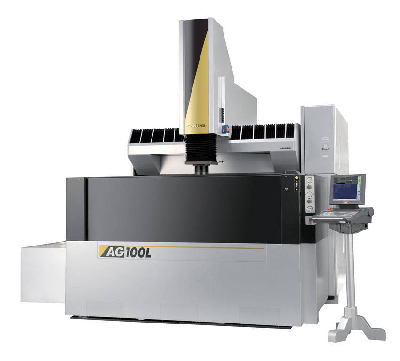

Jan 11, 2012 Providing X, Y, Z travels of 47.24 x 25.59 x 19.69 in., AG100L Sinker EDM features linear motor drives and glass scale feedback on all 3 axes, zero electrode wear circuit, and fine finishing circuit. Control mechanism provides direct link between drive and control, ensuring optimal servo response time and spark gaps at all times. With automatic 3-sided vertically sliding drop tank, large workpieces can be loaded and unloaded.

Wire EDM features extended height capacities.

Sodick    Schaumburg, IL 60173

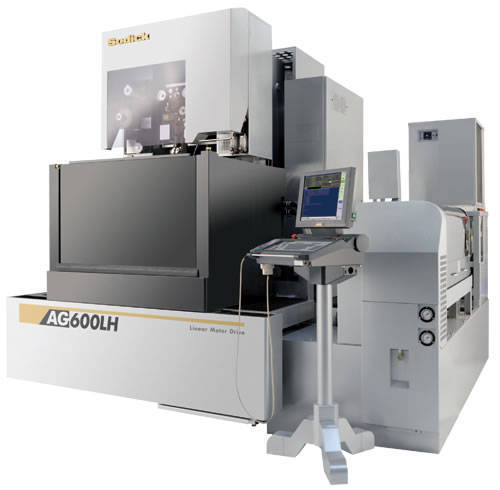

Nov 29, 2011 Featuring respective X, Y, and Z travels of 23.7, 15.8, and 20 in., AG600LH helps large-part manufacturers accommodate tall workpiece capacities. Linear motors on X, Y, U, and V axes allow Wire EDM to machine at maximum speeds without any backlash or lost motion. Along with glass scale feedback, additional features include Super Jet Annealing High Speed AWT, ceramic components, and energy saving circuit.

Sinker EDM accommodates workpieces up to 220 lb.

Sodick    Schaumburg, IL 60173

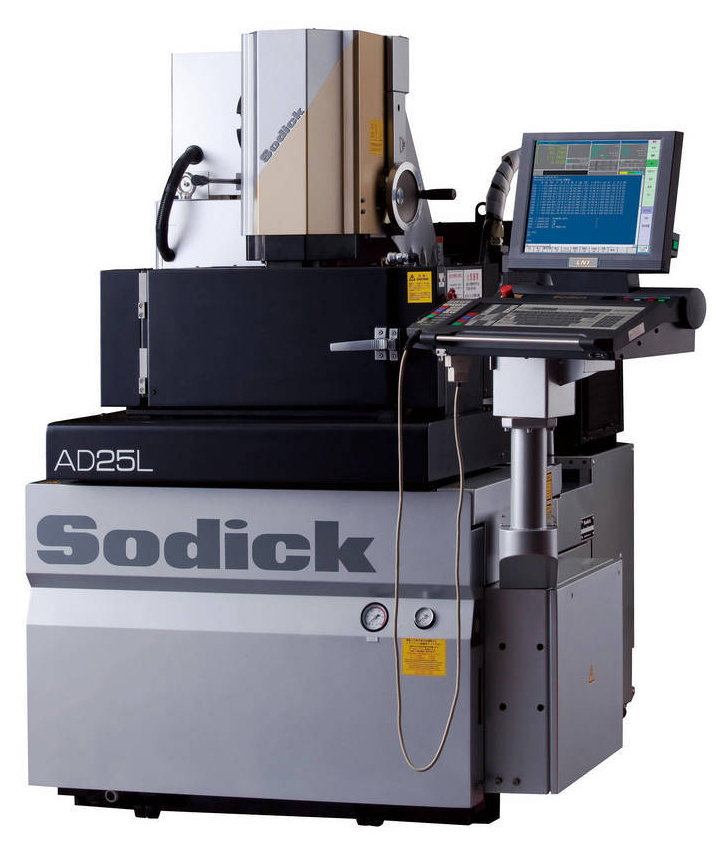

Aug 08, 2011 With X/Y/Z travel of 11.81 x 7.87 x 5.91 in., AD25L features linear motor-driven Z-axis that completely eliminates backlash. Sodick High Speed Finish Circuit controls discharge voltage of each pulse to ensure optimal high-grade texture or mirror surface finish in short period of time. Zero Electrode Wear Technology allows EDMing of steel materials with virtually zero electrode wear when using graphite or copper electrodes.

Sinker EDM features linear motor drives on 3 axes.

Sodick    Schaumburg, IL 60173

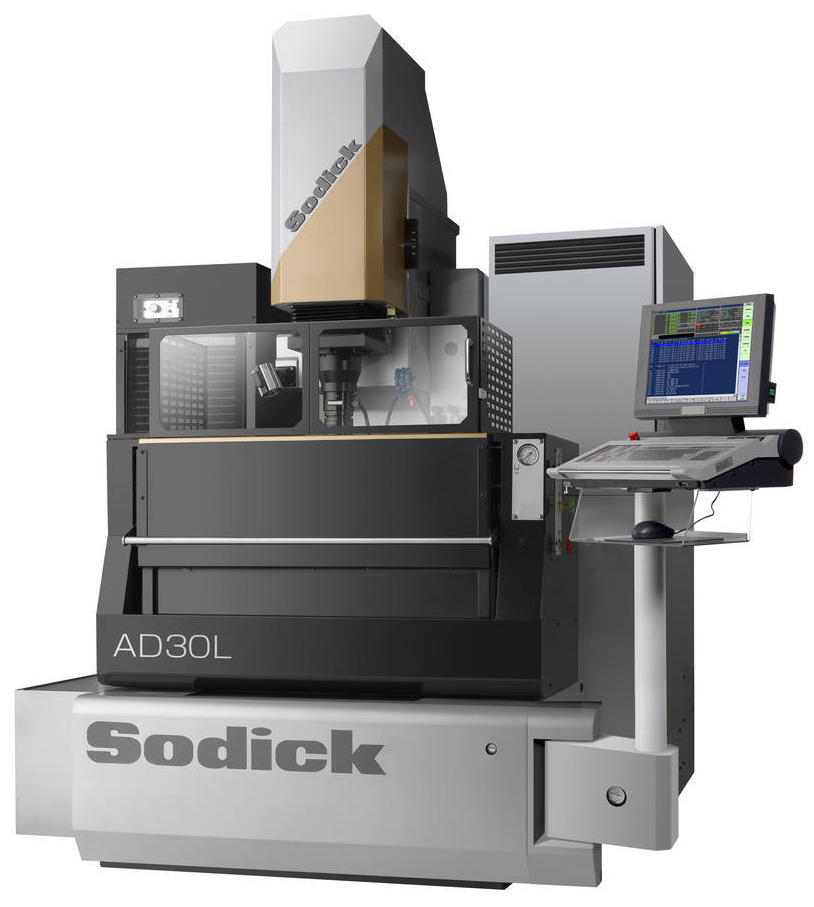

Apr 25, 2011 With X/Y/Z travel of 12.59 x 7.87 x 9.84 in., AD30L can accommodate workpieces up to 1,212 lb. Voltage control via SVC Circuit enables surface finish to be uniformly and efficiently regulated to provide high-grade texture or mirror surfaces. Integrated technology also allows electrical discharge machining of steel materials with virtually zero electrode wear when using graphite or copper electrodes. There are no ball screws or couplings, and backlash is completely eliminated.

High-Speed Wire EDM utilizes high speed oil dielectric.

Sodick    Schaumburg, IL 60173

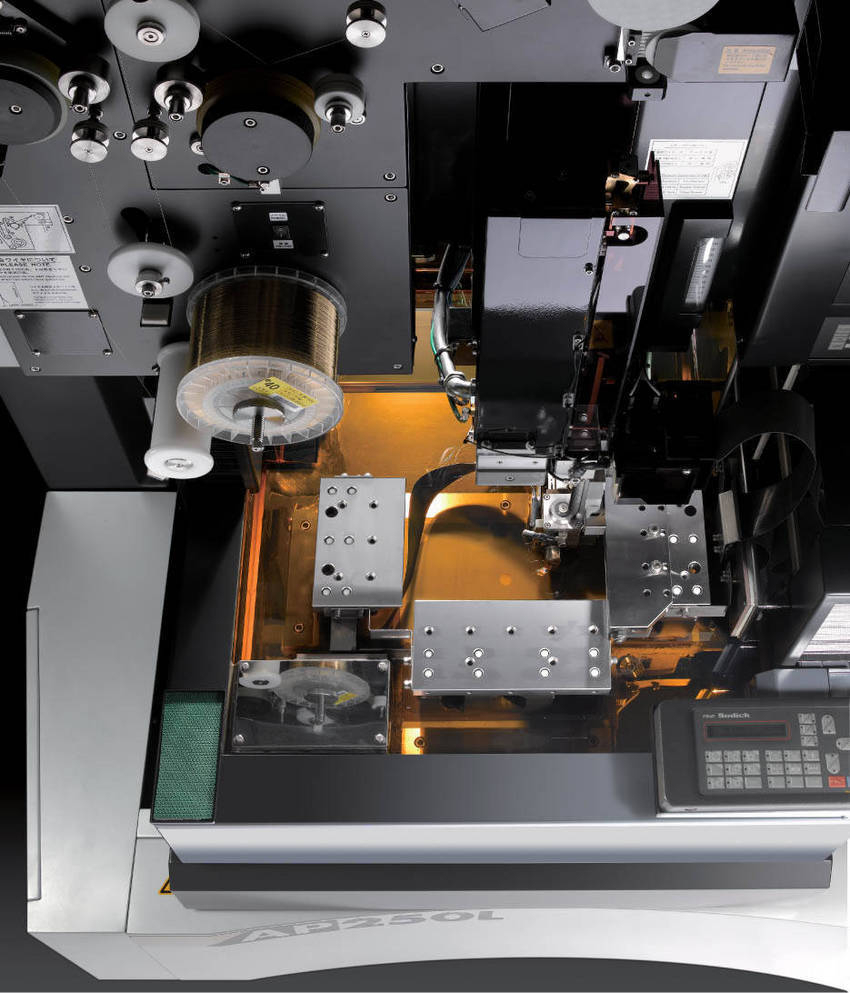

Dec 21, 2010 Designed for manufacture of precision dies and parts, linear motor driven AP250L offers capability to use oil dielectric. Eco-Cut O Technology enables accelerated parts machining when using oil dielectric, and bridge design promotes positioning and machining accuracy. Able to accommodate up to 15.7 x 10.6 x 3.9 in. workpieces, EDM offers respective X, Y, and Z axis travels of 9.8, 5.9, and 4.7 in.

Wire EDM features linear motor system.

Sodick    Schaumburg, IL 60173

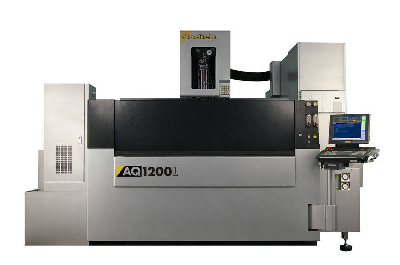

Oct 11, 2010 Featuring 63.0 x 47.2 x 15.7 in. X, Y, Z stroke, Model AQ1200L has maximum workpiece weight of 8,818.5 lb. Linear motor system employs direct-drive, frictionless, vibration-free mechanism that optimizes acceleration and positioning accuracy with no backlash. Glass scale feedback provides true machine positioning at all times, while recycle circuit saves energy by recycling unused discharge pulses that were not originally used in discharge process.

High Speed Wire-Cut EDMs suit high precision applications.

Sodick    Schaumburg, IL 60173

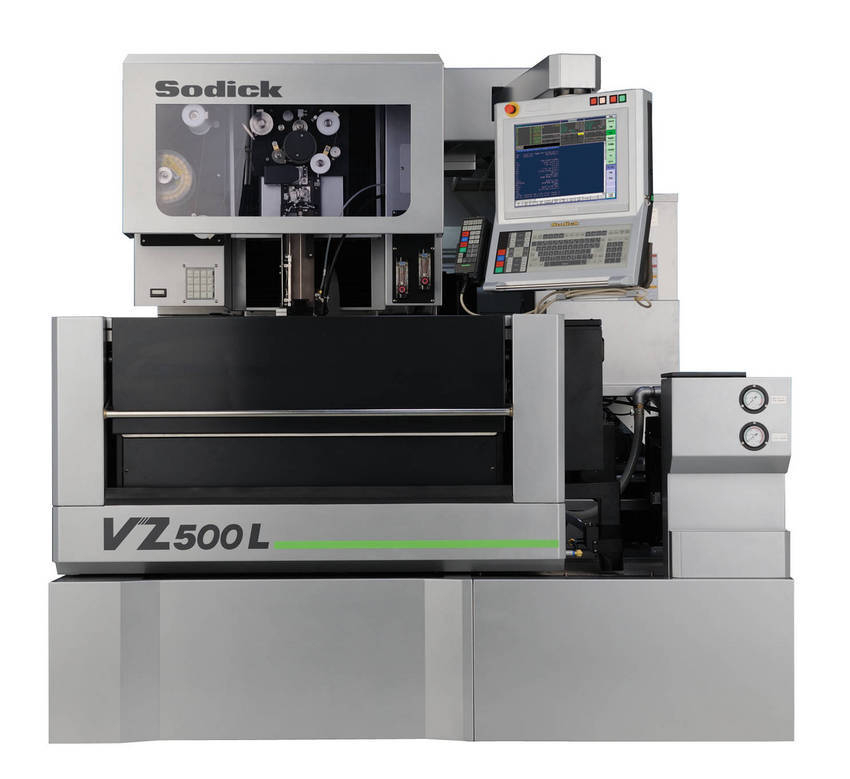

Jun 11, 2010 VZ series EDMs feature linear motor system that employs direct-drive, frictionless, and vibration-free mechanism to provide positioning accuracy with no backlash. High speed electrolysis-free circuit recycles unused discharge pulses, eliminates oxidation, and improves part straightness. Model VZ300L has 13.8 x 9.8 x 8.7 in. X, Y, and Z stoke and max workpiece weight of 1,100 lb, while model VZ500L features 19.7 x 13.8 x 9.8 in. X, Y, and Z stroke and max workpiece weight of 1,870 lb.
