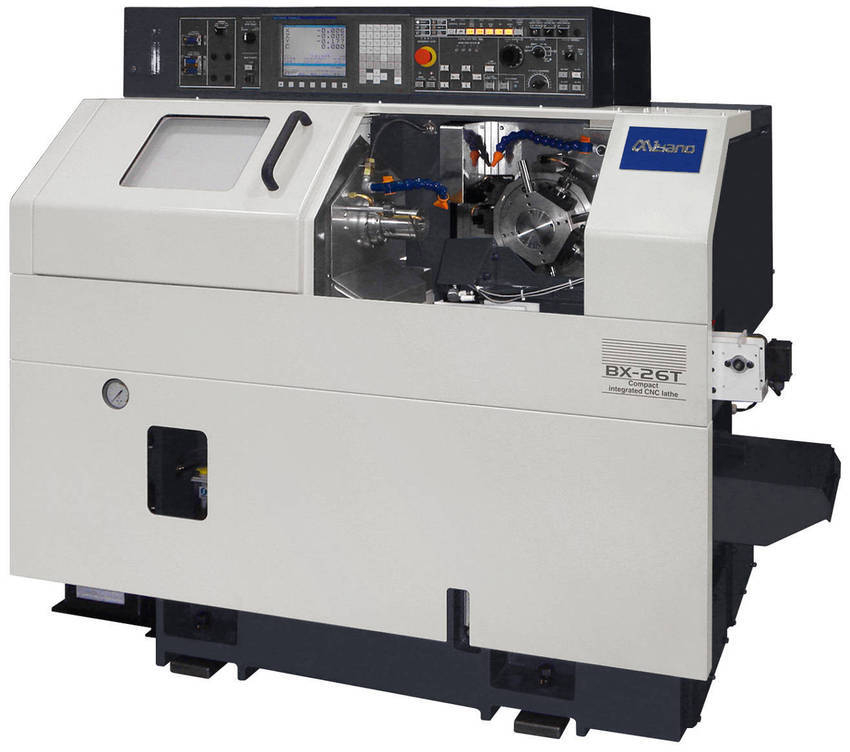

Turning Center machines medium to high volume small parts.

Miyano Machinery USA, Inc.    Wood Dale, IL 60191
Nov 05, 2009 With footprint of only 64.6 x 43.1 in., BX-26T emulates cam-style automatic machine operation and incorporates live tooling to complete complex parts in single setup. Product can accommodate bar stock up to 1.02 in. dia and comes with double stack turret with 4 Z-axis live tools and 14 static tooling stations. Linear guide ways and 8,000 rpm 5 hp spindle aids in high speed turning operations, while additional 4 X-axis live tools on Y-axis slide allows unit perform complex machining operation.

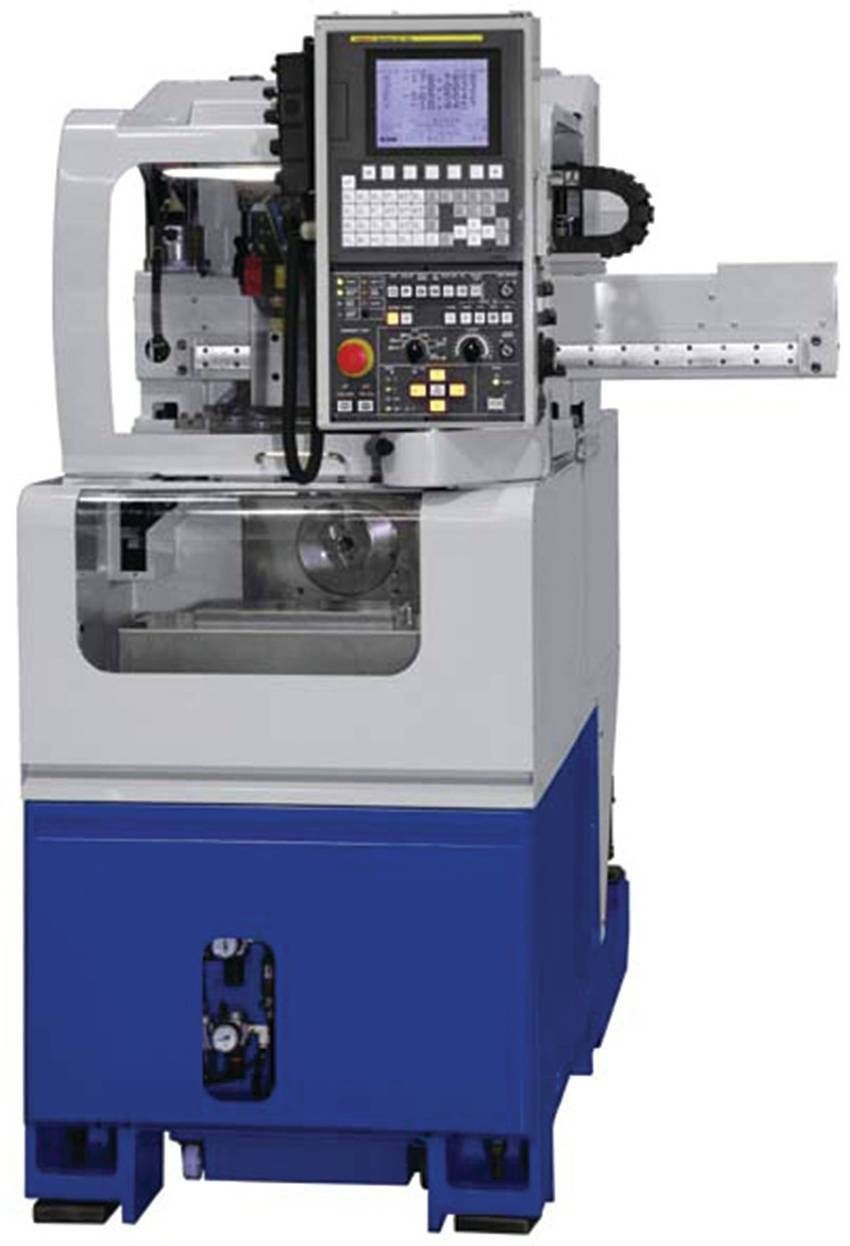

Turning Center is designed for hard turning of small parts.

Miyano Machinery USA, Inc.    Wood Dale, IL 60191
Jun 17, 2009 With 0.1 µm input tolerance, GN-3200 is suited for second operation finishing work and hard turning of heat treated components. It has maximum turning diameter of 45 mm and maximum turning length of 50 mm. Unit features heat-symmetric machine frame and bed, wing type headstock, and separate coolant tank that eliminates chances of thermal distortion over time and ensures heat generated by machining is not transmitted to machine body. Compact machine measures only 2.3 x 4.8 ft.

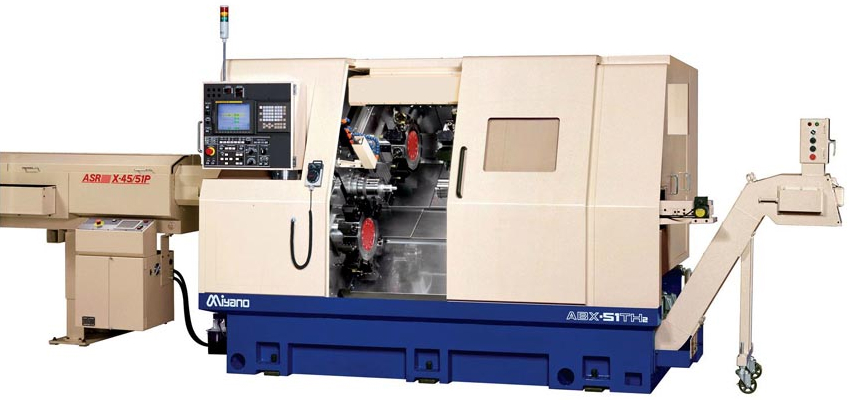

CNC Dual Turning Centers have 2 and 2.52 in. bar capacities.

Miyano Machinery USA, Inc.    Wood Dale, IL 60191
Sep 07, 2006 ABX Series Super CNC Turning Centers feature 2 symmetrical sets of 4,000 or 5,000 rpm spindles, 12-station turrets, and Y-axis slides for optimal throughput of complicated workpieces. On DHY2 and SY models, total of 24 tool stations, which accept up to 24 live tools and 48 ID tools, perform simultaneous turning or milling operations. Model TH2 has 36 live tool stations. While featuring non-lifting turret indexing, turrets incorporate ac servo motor and 3-piece curvic coupling.

Lathe offers complete part machining in single setup.

Miyano Machinery USA, Inc.    Wood Dale, IL 60191
Aug 08, 2005 Measuring 87 x 52 in., Gang Tool Lathe, Model BX-26S features 3D linear turret and traverse-type identical left and right spindles, both with 5 hp, to ensure stable cutting from end to end. High-speed turning of 8,000 rpm max is possible with built-in spindle motors and high-rigidity linear guides. Operation is facilitated by Y-axis and C-axis on either spindles, with 8 revolving tools, allowing Op 10 and Op 20 machining in one setup without handling.
