Walk-In Batch Oven cures varnish on industrial transformers.

Wisconsin Oven Corp.    East Troy, WI 53120
Mar 08, 2011 Built with 18 x 15 x 6.5 ft chamber, electrically heated walk-in batch oven has 302°F max operating temperature and is constructed with 6 in. thick tongue and groove panel assemblies and 20 gauge aluminized steel interior and ductwork. Heating system features incoloy sheathed heating elements for 300 kW total heat input with SCR power control, and recirculation system employs 27,000 cfm @ 20 hp blower and combination airflow to maximize heating rates and temperature uniformity.

Electric IR Conveyor Oven aids in bottle recycling.

Wisconsin Oven Corp.    East Troy, WI 53120
Apr 22, 2010 Electric IR conveyor oven heats deformed plastic antifreeze bottles allowing removal of paper labels and recycling of plastic. Dual RH electric IR heaters produce total output of 19 kW and 27 A at 480/3/60, while conveyor system uses carbon steel flat wire belt. Along with 3 ft 6 in. x 6 in. x 1 ft 6 in. heating chamber and 1,400°F max emitter rating, features include 2 emergency stop buttons, NEMA 12 control enclosure, and Honeywell UDC 2500 temperature controller.

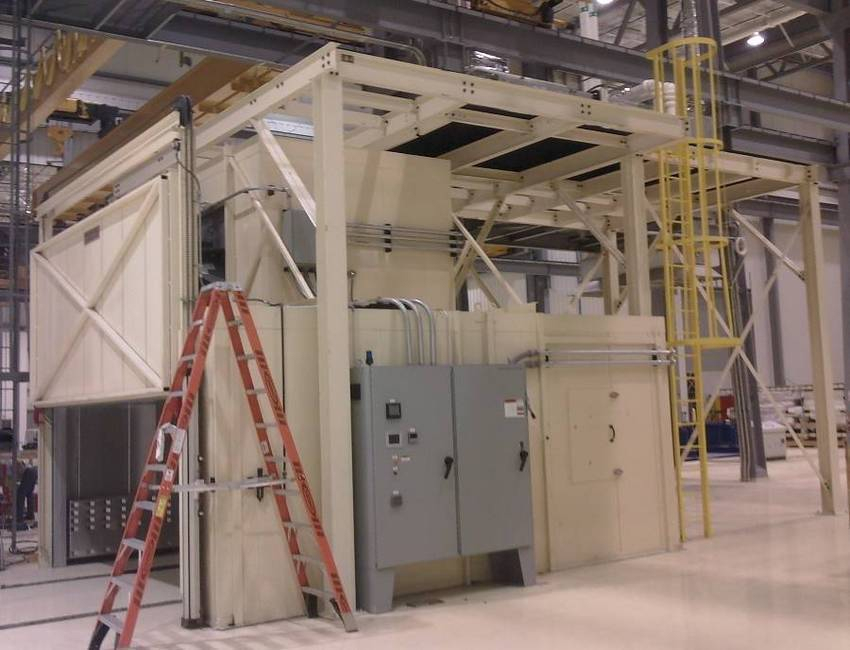

Horizontal Heat Treating System suits aerospace industry.

Wisconsin Oven Corp.    East Troy, WI 53120
Mar 05, 2009 Designed to solution-treat aluminum, natural gas fired batch oven with non-heated manual quench tank accepts 4 x 4 x 4 ft basket and is rated for 1,250°F max and 1,100°F normal operating temperatures. Heating system features 500,000 BTU/hr air heat burner, and hearth consists of 2 rows of wheels rated for 3,600 lb loads. Recirculation system and programmable temperature controller lend to temperature uniformity of +5.4°F/-1.8°F @ 600°F and +5.3°F/-6.1°F at 1,100°F.

Conveyor Oven cures epoxy in automotive transmission parts.

Wisconsin Oven Corp.    East Troy, WI 53120
Mar 02, 2009 Offering 2 zones of control, electrically heated Horizontal Conveyor Oven features 2 ft 3 in. x 5 ft 10 in. x 1 ft 8 in. chamber with max temperature rating of 350°F and normal operating temperatures of 176°F in zone 1 and 302°F in zone 2. Oven uses indexing parallel chain style conveyor system with cleat attachments for accurate rack positioning. Additional features include emergency stop button and photo eye at exit end to prevent indexing with load present in unload position.

Batch Oven cures composites for automotive industry.

Wisconsin Oven Corp.    East Troy, WI 53120
Feb 24, 2009 With chamber dimensions of 25 x 10 x 9 ft, electrically heated batch oven is constructed with 4 in. thick tongue and groove panel assemblies and 20 ga aluminized steel interiors and ductwork. Maximum operating temperature is 500ºF. Heating system provides 240 kW heat input with SCR power control and recirculation system has 29,000 cfm at 25 hp blower. Exhaust features motorized dampers on both fresh air inlet and exhaust outlet for enhanced heating and cooling capabilities.

Batch Oven cures composite materials for aerospace industry.

Wisconsin Oven Corp.    East Troy, WI 53120
Feb 19, 2009 Constructed with 6 in. thick tongue and groove panel assemblies and 20 gauge aluminized steel interiors and ductwork, electrically heated batch oven has 4 x 4 x 6 ft chamber and max operating temperature of 650°F. Heating system features incoloy sheathed elements, resulting in 48 kW total heat input with SSR power control. For uniform heating, recirculation system has 4,500 cfm @ 5 hp blower and utilizes combination airflow to maximize heating rates and temperature uniformity.

Infrared Conveyor Oven thermoforms medical stints.

Wisconsin Oven Corp.    East Troy, WI 53120
Feb 19, 2009 Featuring 4 in. x 1 ft 2 in. x 1 in. heating chamber and 1,300°F maximum emitter rating, Infrared Conveyor Oven uses medium-wave V-Series panel heaters rated at 20 W/SI. Heater panels are arranged for both top and bottom heating for 2 separate zones of control with 1,686 W/zone. Roller chain supply conveyor is stainless steel with variable speed AC drive adjustable from 0.2-5 ips. Measuring 7.5 in. wide, solid urethane belt conveyor for return operates at 2-10 ips.

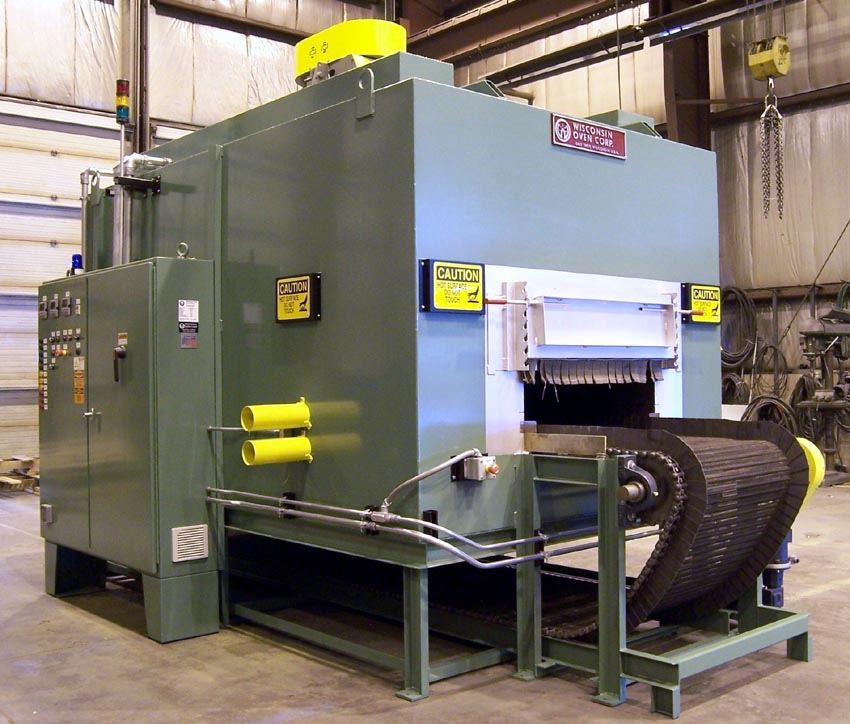

Conveyor Oven performs stress relief on locking wheel hubs.

Wisconsin Oven Corp.    East Troy, WI 53120
Mar 10, 2008 With production rate of 600 lb of parts/hr, Electrically Heated Conveyor oven is designed to heat parts from 70-1,100°F, and features 1,250°F maximum operating temperature. Constructed with 10 in. thick insulation, 3/16 in. thick plate steel exterior, and 16 ga 304 SS interior, it has 30 in. wide, 9 ft long, and 1 ft high heating chamber. Heating system is rated for 180 kW of heat input, while recirculation blower is rated for 18,000 cfm at 15 hp.

Gas-Fired Conveyor Oven preheats tubes for oil industry.

Wisconsin Oven Corp.    East Troy, WI 53120
Feb 25, 2008 Along with 12 ft x 47 ft x 9 in. chamber rated to 500ºF max, bottom-flow conveyor oven features chain style conveyor with 10 strands of carbon steel chain spaced across width on 60 in. centers. Heating system features Eclipse 320 AH burner rated at 3,000,000 BTU/hr, and Allen-Bradley Powerflex VFD provides conveyor speed adjustability from 1.5-9 ipm. Oven is constructed with 4 in. thick tongue and groove panel assemblies, with interior and ductwork of aluminized steel.

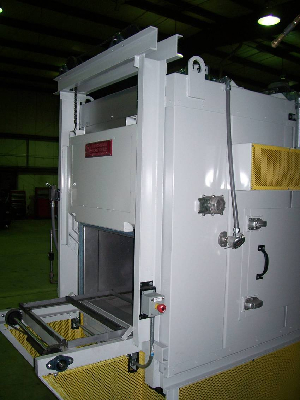

Electrically Heated System treats aluminum sheets in labs.

Wisconsin Oven Corp.    East Troy, WI 53120
Feb 25, 2008 Along with pneumatically operated quench system, Electrically Heated Solution Treat System is built with furnace that has 1 ft x 1 ft 6 in. x 1 ft basket and 1,200ºF max operating temperature. Load can drop into quench tank or onto load/unload platform for ambient air cool. Featuring bottom-up airflow, system achieves part temperature uniformity of ±3°F @ 875° and 1,055°F with no overshoot. It is controlled via Allen-Bradley Micrologix 1500 PLC.
