SCARA Robots feature lightweight, die-cast aluminum arms.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Dec 11, 2012 With arm lengths of 300 and 400 mm, respectively, Models THL300 and THL400 feature max payload capacity of 5 kg and cycle times of .48 sec with 2 kg load. Units have working envelope of 4 axes, with Z-axis rotation of 360°. TSL3000 Controller, offering storage capacity of 6,400 point + 12,800 steps, includes USB compatibility as standard. Robots are suitable for small parts handling and assembly, including medical devices, pharmaceuticals, automotive parts, and consumer products.

Lightweight, Rigid SCARA Robots have 5 kg max payload capacity.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Dec 07, 2012 Along with respective arm lengths of 300 and 400 mm, THL300 and THL400 feature working envelope of 4 axes with Z-axis rotation of 360°. Design minimizes required supporting and vibration-suppression elements, while simplified gearboxes and motors facilitate maintenance. Suited for small parts handling and assembly, robots are built with rigid, die cast aluminum arms and offer cycle times, with 2 kg load, of .48 sec.

Robot Line provides lightweight models for reduced energy use.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Jan 24, 2012 THL Series SCARA Robots include the THL500, THL600 and THL700 with lightweight die cast aluminum arm lengths of 500 mm, 600 mm, and 700 mm. Each THL offers payload of 10 kg with cycle times of .45 s for the THL500 and THL600 and .50 s for the THL700. Robots feature working envelope of 4 axes, with a Z-axis rotation of 360º. Maximum speeds range from 6.3 m/s to 7.9 m/s overall. TSL 3000 Controller included is USB compatible.

SCARA Robots feature rigid gears on each axis.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Jul 15, 2010 Model TH650A robots have 10.0 kg maximum payload mass and maximum composite speed of 7.52 m/sec, while TH850A, with speed of 8.13 m/sec, and TH1050A, that reaches up to 9.15 m/sec, carry 20.0 kg. On all models, axis one and two combine to provide near 360º working area, and robot arms are constructed of aluminum casting and span from 650-1,200 mm. Series also includes internal wiring harnesses that protect against contaminants and TS2100 Controller that uses SCOL programming language.

Scara Robots are optimized for cycle time and payload.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Apr 22, 2008 Comprised of 3 models, TH-A Series includes full-function TS Controller with PLC and multitask function. X-, Y-, and Z-axis positioning repeatability is ±0.01 mm, while C-axis positioning repeatability is ±0.004°. Built with sealed labyrinth structure, series offers rigid construction and vibration-free performance. Max payload mass for TH650A is 10.0 Kg, and max composite speed is 7.52 m/s. While TH850A and TH1050A carry 20.0 Kg max each, respective max speeds are 8.13 and 9.15 m/s.

Scara Robots can accelerate to 6.21 or 8.03 m/s.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Oct 11, 2005 With respective max payloads of 5 and 20 kg, TH550 and TH850 feature low-profile, heavy-duty housings that lend to stable performance. Both models have compact bodies and 3-axis speeds of 2,000 mm/s. Features include TS Controller for up to 5 simultaneous axes and absolute system that eliminates difficulties with home return. Total arm length of TH550 and TH850 is 550 and 850 mm, respectively, and positioning repeatability is ±0.015 and 0.03 mm.

SCARA Robot performs high-speed operations.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Aug 09, 2005 Featuring duct-less design, Model TH1050 offers arm lengths to 1,050 mm. It reaches composite speeds of 8.73 m/s and 3-axis speeds of 2,000 mm/s. With 2 kg payload, standard cycle time is 0.48 s. Maximum payload mass is 20 kg. Able to control up to 5 axes simultaneously, TS Controller includes built-in PLC, operation panel, and multitask function. Robot provides positioning repeatability of ±0.03 mm for X-Y axes, ±0.02 mm for Z-axis, and ±0.03° Z-axis rotation.

Scara Robot features high-speed operation.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Mar 29, 2005 Model TH450 is equipped with high-speed ball screws and full-function TS2000 controller with built-in PLC, operation panel, and multitask function. With total arm span of 450 mm, unit reaches composite speeds of 7.33 m/s and 3-axis speeds of 2000 mm/s. Positioning repeatability in X and Y axes is ±0.015 and ±0.01 in Z axis. Robot carries 5 kg max payload and can be incorporated into tight spaces because of its cable position.

Robot features wide working envelope and high speed.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Jun 21, 2004 With space-saving design suited for integration into compact production cells, Model TH650 SCARA Robot offers composite max speed of 7,500 mm/s and z-axis speed of 2,000 mm/s. Working envelope is +/-160° on axis 1 and +/-143° on axis 2. Unit provides arm spans of 650 mm, maximum payload of 10 kg, and x- and y-axis repeatability of ±0.015 mm. Absolute encoder feedback eliminates need for zero return on start-up following shut down.

Programmable Logic Control uses ladder language programming.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Sep 17, 2003 Series TC7 board-type PLC is offered in models as small as 90 x 60 mm and can be configured into variety of equipment. Thermistor inputs make unit suited for temperature-controlled appliances and equipment. Users can design, customize, monitor, and debug programs using PC. Series TC7 includes 8 input/outputs, 2 analog inputs, and control panel interface, which allows for 7-segment LED outputs, single LED output, and key switch input.

Machining Center offers automatic attachment-changing option.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
May 01, 2003 Bridge-type, 5-axis Series MP-5F Die and Mold Machining Center provides universal workpiece machining using combination of swiveling head and motor spindle with switchable planetary gearing. Swiveling action makes 2 axes possible using A- and C-axis or B- and C-axis milling heads. Axes can alternatively be used as NC axes, making rough milling and high-speed cutting possible in one setting. Three external monitoring devices ensure accuracy with interchangeable heads and spindles.

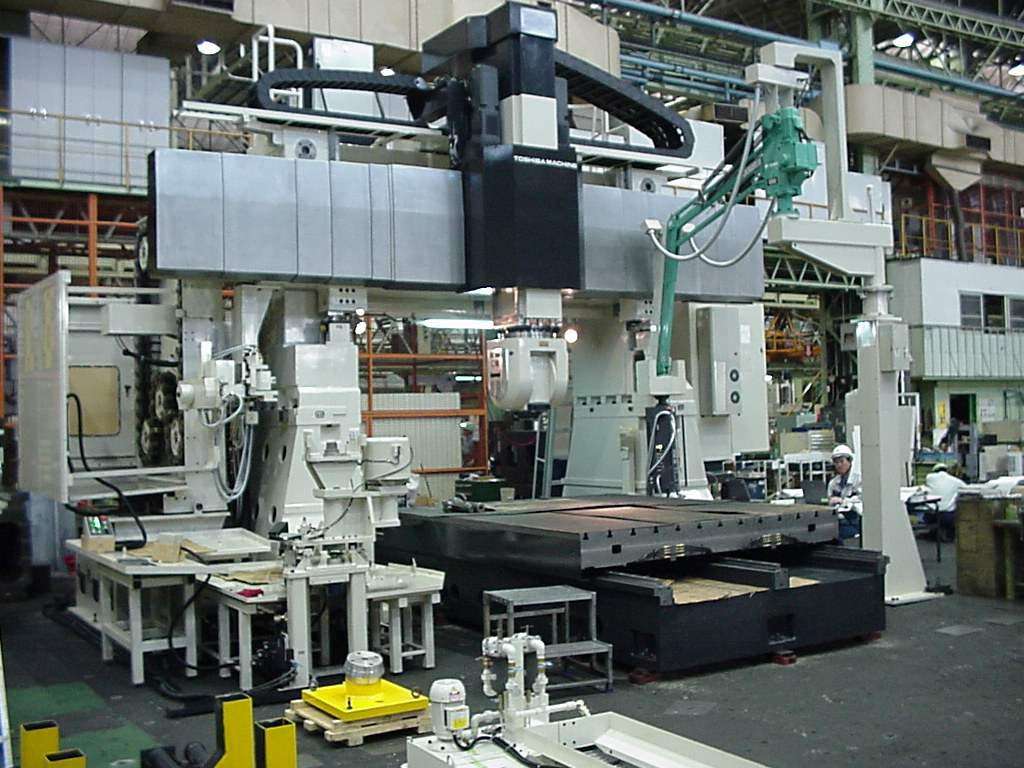

Machining Center provides 5-axis machining.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Feb 12, 2003 Model MPF-10 bridge-type machining center provides both A-axis head swivel and C-axis table rotation. Features include head with 230 mm dia snout, TOSNUC 888.2 CNC system, and gearless, direct-drive spindle system. Spindle utilizes motor of 8000 min^-1 and 30/37 kW with stepless speed changing system. Pre-loaded linear roller guides support X-, Y-, and Z-axes, while A- and C-axis indexing have hydraulic clamp systems.

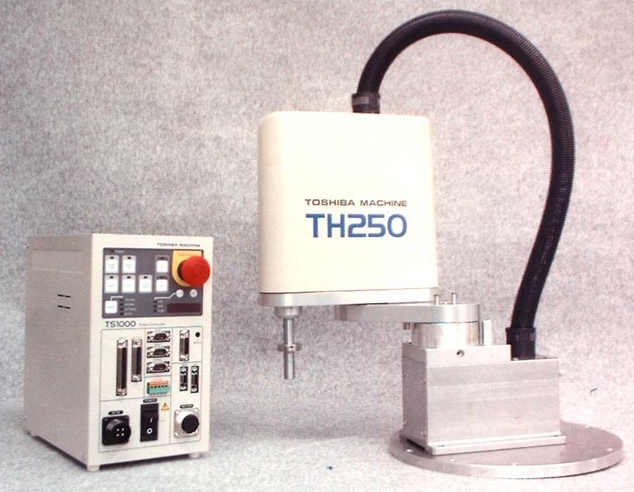

SCARA Robots have arm lengths of 250 and 350 mm.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
May 14, 2002 TH250 and TH350 feature absolute encoders as standard dispensing with need for home return function. They offer payloads up to 3 kg and repeatability of +/-0.01 mm. Built-in PLC controls I/O equipment regardless of robot operation and program. Robots can be programmed using ladder sequence program, and can optionally feature Ethernet, DeviceNet, or Profi-bus connectivity. Optional teach pendant can be used to direct robots through sequence of movements.

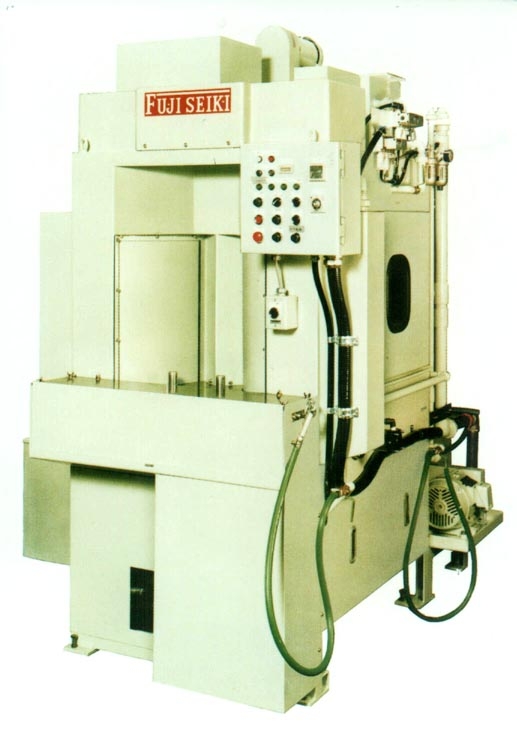

Wet Blasting Machine uses water as an abrasive.

Toshiba Machine Co., America    Elk Grove Village, IL 60007
Nov 08, 2001 Suitable for automotive parts, the Fuji Seiki wet blasting machine can be used for deburring, matte finishing, scale removal, peening, surface treatment, edge-breaking and cleaning. Applicable workpieces include engine parts, turbo fans, clutch parts, fuel injection nozzles, ABS parts, intricate workpieces, and more. Standard sizes range from 48 x 78 x 86 in. to 80 x 100 x 96 in. Maximum workpiece size is 8.0 in. dia x 12 in. high.
