Print-to-Laser Cutting System enables on-the-fly changeovers.

Spartanics    Rolling Meadows, IL 60008
Sep 27, 2011 Unlike other digital cutting/laser cutting lines that may require input of vector-based files during set up, Designers' Turnkey Digital Print-to-Laser Cutting System allows product developers to use Rastor Image Process software at pre-press level to specify not only print but also laser cutting files to finish product. System can extract vector data embedded in PDF, ONYX, or other formats, and enables use of barcodes to signal job changeovers for uninterrupted continuous production lines.

Die Cutting Station operates at web speed of 100 m/min.

Spartanics    Rolling Meadows, IL 60008
Sep 23, 2009 Featuring built-in job run estimation tool, Finecut Laser Die Cutting Station® is powered by Spartanics software, which automates cutting sequences. System seamlessly cuts and stitches images to create parts in unlimited part lengths and reloads jobs in seconds. Available for new lines or as retrofit into older production lines, system offers laser power from 100-1,000 W, laser spot size from 210-280 microns, and material cutting areas from 200 x 220 mm to 600 x 600 mm.

Screen Printers are custom-configured to dimensions.

Spartanics    Rolling Meadows, IL 60008
Sep 16, 2008 Allowing optimized print formats for sizes up to 80 x 165 in., Fineprint Flatbed Screen Printing Line is designed for roll-to-roll screen printing. With ability to store job parameters for up to 2,500 separate jobs, units have synchronized vacuum release on printing table to speed throughput large format jobs. They have screen holder design with less than 1 mm distance between screen and printing table, and servo drive motor for squeegee assembly.

Screen Printing Systems feature electronic controls.

Spartanics    Rolling Meadows, IL 60008
Jul 08, 2008 Able to handle any pre-printed material from any printing process, Spartanics-Systec Fineprint Cylinder Screen Printing Line features automatic compensation for screen stretch or shrink, enabling multiple print passes. Rapid electronic controls replace manual adjustments and store up to 2,500 job parameters. Accommodating ultra-thin substrates down to 12 microns, printers are suited for RFID labels, flexible circuitry and luminescent panels, flexible solar panels, and textile transfers.

Compact Laser Cutter suits narrow web applications.

Spartanics    Rolling Meadows, IL 60008
Jul 03, 2008 Able to work in-line or off-line with digital printers, Spartanics Finecut Narrow Web Laser Cutting System can be set up via import of digital file and create labels with complex shapes in orders as small as 200 or 400 pieces. It is designed to work inline with EFI's Jetrion 4000 Series UV Inkjet System, enabling different size kiss-cut labels to be created on fly. Jobs proceed from artwork to finished product within minutes.

Drying System dries solvent and water-based inks.

Spartanics    Rolling Meadows, IL 60008
Jul 02, 2008 Featuring flat or vertical design, Sheet and Web Contact Drying System thoroughly dries wet inks from material surface to top side, avoiding residual moisture problems. System uses heated vacuum plate with transport belt on bottom of material being dried. Integrated heated air blower furthers drying process and helps eliminate solvent fumes. With system, screen printed materials that previously required 2 hours to dry can be dried within 30 seconds.

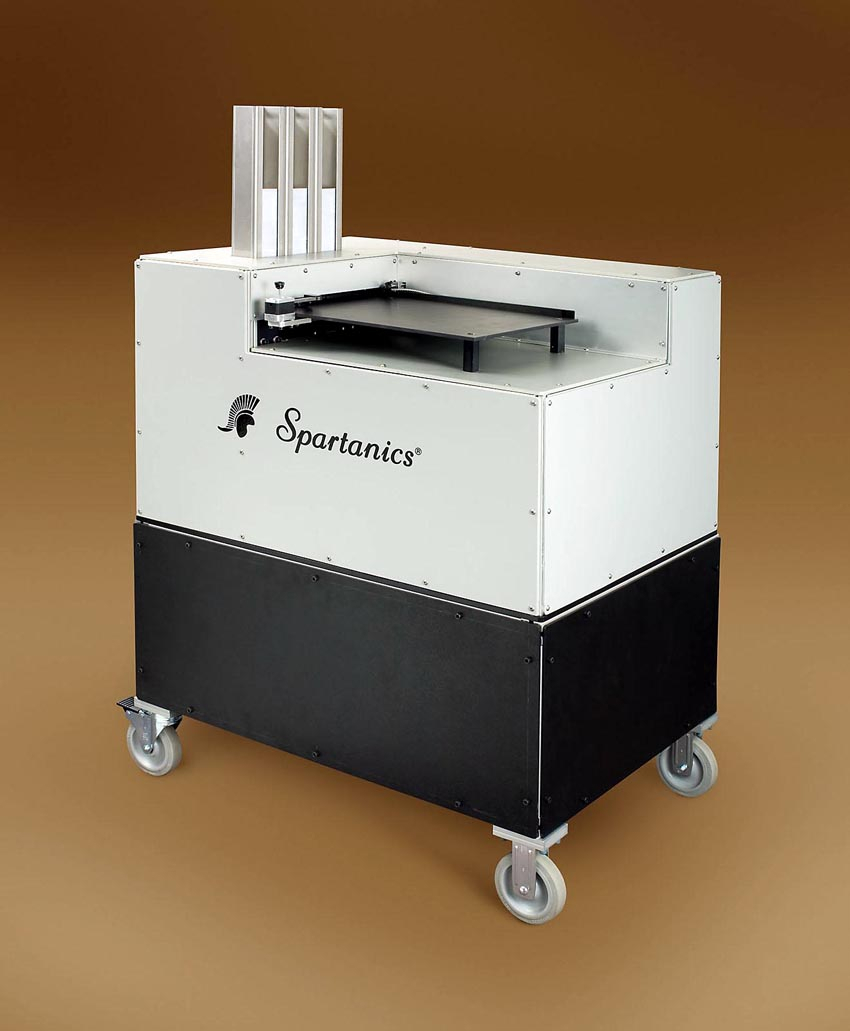

Card Punching System suits small volume production needs.

Spartanics    Rolling Meadows, IL 60008
Jun 09, 2008 Incorporating electro-optical registration technology, M510 Compact Plastic Card Punching System provides maximum output of 9,000 cards/hr produced at rate of 50 strokes/minute in standard CR80 format. Small footprint system is manually loaded with easy-to-operate feeds, and standard life or long life 3-up CR80 dies are avaialable. Device is designed for producing small volume of hotel keys, loyalty cards, phone cards, gift cards, membership cards, and plastic cards.

Nested Parts Finisher extracts and stacks in single step.

Spartanics    Rolling Meadows, IL 60008
Apr 25, 2008 Finestac Nested Part Finisher® fully automates extraction and stacking of gaskets and similar die cut nested parts. Batch count can be preset, and unit comes with color touch screen and software. Finisher works inline with any die cutting system, and extracts parts so that they are scratch-free in stacks up to 89 mm tall. Scrap material is collected on conveyor and transported to separate waste bin.

Laminator/Die Cut System helps eliminate waste.

Spartanics    Rolling Meadows, IL 60008
Feb 15, 2008 Smart Laminator-Die Cut System synchronizes roll lamination and die cutting operations to eliminate causes of stock and laminate production waste. With smart sensors, system can detect sheet misfeeds, sources of improper laminating, or film splices, and automatically stops system so that corrective measures can be taken. Smart start and stop lamination controls also detect missing sheets and film splices, minimizing wasted overlaminate.

Laser Cutting Control relies on smart sensing mechanisms.

Spartanics    Rolling Meadows, IL 60008
Oct 29, 2007 With Laser-Smart(TM) Control System, single operator can manage all laser cutting related operations simultaneously. It provides smart sensing and continuous monitoring of machine and material status, including preset operator alarms. Software constantly monitors registration, web control, laser power, laminating, and slitting. In addition to run length, operator can program system to automatically shut off at completion of run.
