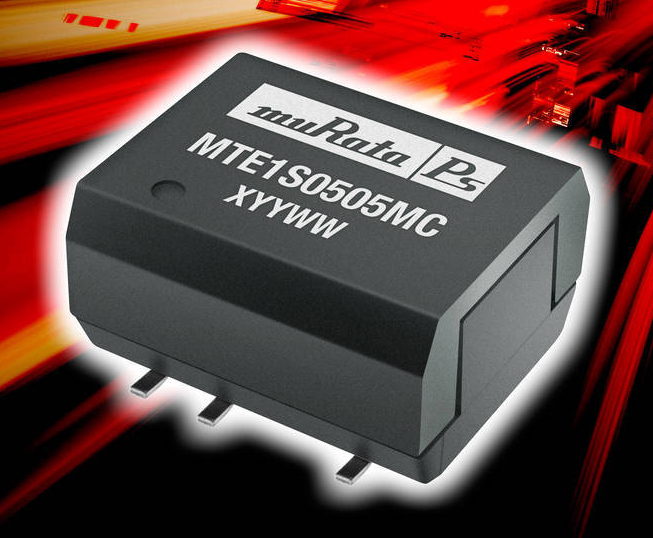

DC/DC Converter (1 W) has high moisture sesnitivity rating.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Apr 26, 2013 Offering up to 88% efficiency, MTE1 series comprises isolated, 1 W, single-output DC/DC converters for industrial and automation applications. Input options include 3.3, 5, 12, 15, or 24 Vdc, while outputs include 3.3, 5, 9, 12, or 15 Vdc. Providing full load capability across full -40 to +85°C range, converters feature moisture sensitivity level rating of MSL 1 and are compatible with peak reflow solder temperature of 245°C as per J-STD-020D.

Power Inductors suit high frequency switching applications.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Apr 24, 2013 Measuring 7.1 x 7.0 x 4.96 mm, Series 3000A is available with 80, 100, 150, or 200 nH inductance values and max peak current of 57 A for 80 nH device. Series 3000B has inductive values of 85, 100, 120, 150, or 200 nH with max current of 78 A for 85 nH inductor. Housed in surface mount packages, Series 3000A and 3000B feature typical RDC of 0.20 and 0.29 mΩ, respectively, and are suited for noise reduction circuits in switching power supplies, DC-DC converters, and voltage regulators.

Quarter-Brick DC-DC Converter supports telecom applications.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 14, 2013 Housed in DOSA-compliant package, convection-cooled Model RBQ-12/33-D48 can operate from telephone network voltage of 36–75 Vdc with efficiencies up to 96%. Isolated unit delivers 12 Vout/33 A/400 W at 60°C with 200 lfm airflow. Available with load sharing option, conformal coating, and positive and negative on/off control logic, device is suited for telecommunications, enterprise IT, and wireless networking infrastructures that use distributed power or regulated intermediate bus architecture.

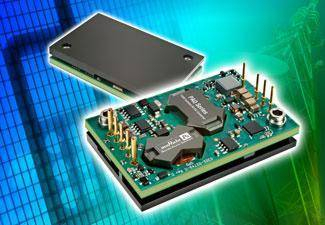

DC/DC Converter (150 W) serves RF power amplifier applications.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 07, 2013 Featuring 2:1 input range of 36–75 Vdc around nominal 48 Vdc input, fully isolated PAQ series is packaged as open-frame quarter brick module with through-hole mounting. Single 29.8 Vdc nominal output can be trimmed from 23.83–32.78 Vdc (-20% to +10%) to accommodate application-specific requirements. Offering typical efficiency rating of 92.5%, series can deliver up to 5 A output current from fully regulated output. Optional baseplate is available for use in conduction-cooled designs.

DC-DC Converters suit micro-cell transmitter applications.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 05, 2013 Packaged as open-frame quarter brick modules with through-hole mounting, 150 W PAQ Series has 2:1 input range of 36–75 Vdc around nominal 48 Vdc input. Single 29.8 Vdc nominal output can be trimmed from 23.83 to 32.78 Vdc to accommodate application's specific voltage requirements. Providing up to 92.5% efficiency, converters can deliver up to 5 A output current from fully regulated output. Optional base plate is available for conduction-cooled designs such as sealed box RF power amplifiers.

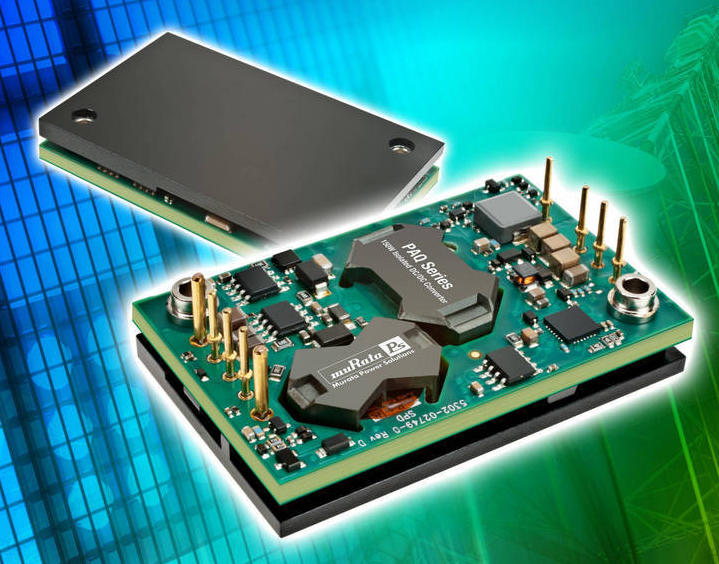

Isolated DC/DC Converter has 150 W power output rating.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Feb 26, 2013 Suited for micro cell transmitter and power amplifier applications, PAQ series features open-frame quarter brick module with through-hole mounting, 2:1 input range of 36–75 Vdc around nominal 48 Vdc input, and input/output isolation provided by 2,250 Vdc basic insulation. Single 29.8 Vdc output can be trimmed from 23.83–32.78 Vdc, and typ efficiency rating is 92.5%. Able to deliver up to 5 A from fully regulated output, series offers various protections and remote on/off control option.

Miniature DC/DC Converters provide 5.2 kVdc isolation.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Feb 12, 2013 With input voltage variants accommodating 3.3, 5, 12, or 15 Vdc, MEJ2 Series 2 Watt DC/DC Converters are available with single or dual outputs covering nominal voltages of 3.3, 5, 9, 12, or 15 Vdc. Fully encapsulated, through-hole units feature compact SIP format with 1.96 cm² footprint and power density of 0.81 W/cm³. RoHS-compliant converters offer safety agency recognition according to UL60950 for basic/supplementary insulation for voltages up to 200 Vrms.

Wi-Fi Controllers add internet connectivity to equipment.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Feb 05, 2013 Utilizing Broadcom's Wireless Internet Connectivity for Embedded Devices architecture, SN8200 Series delivers 2.4 GHz 802.11b/g/n internet connectivity to home appliances, industrial machines, and healthcare equipment. Self-contained modules are equipped with STM32 ARM Cortex-M3, onboard antenna, and ability to offer UART or SPI connectivity to host application. Operating in access point or station mode, units feature typical output power of +18 dBm when operating in 802.11b mode at 11 Mbps.

Monolithic Ceramic Capacitor features interposer substrate.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Dec 11, 2012 Comprising 22 µF 6.3 WV values with X5R temperature rating in both 0804 and 0906 formats, ZRA Series is specifically designed to absorb mechanical vibration generated within capacitor, typically sounding as squealing, when voltage is applied to it. Tests conducted indicate as much as 20 dB reduction in audio noise measured at 3 kHz when compared against traditionally constructed MLCC. Series is suited for power supply circuits used in laptops, smartphones, and digital cameras.

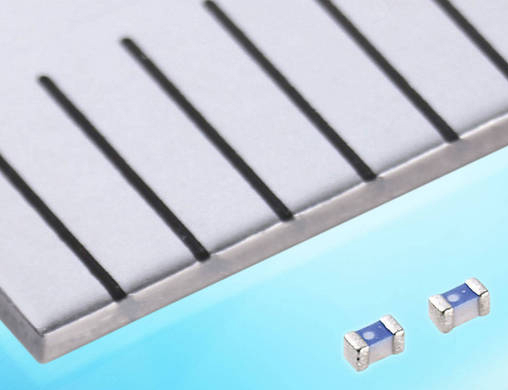

Compact Chip Inductor offers inductance values to 270 nH.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Dec 04, 2012 Available in 0603 (EIA 0201) package measuring 0.6 x 0.3 x 0.3 mm, LQP03TN-02 series offers inductance values from 150 to 270 nH, inductance deviation is within ±5%, and Q factor of 5. This compact chip inductor, optimized via proprietary microfabrication technology and internal structure design, targets high frequency circuits in smart/cellular phones and other small portable wireless devices.
